Series 149 Detroit Diesel Engines

VARIABLE SPEED GOVERNOR - groups: 2.7330 - 2.7650

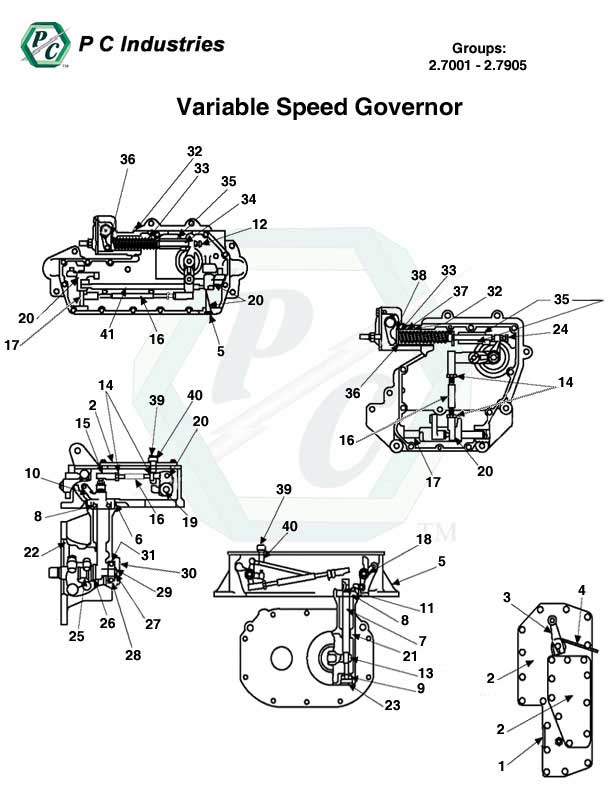

2.7001 - 2.7905 Variable Speed Governor.jpg - Diagram

Page: 112

Information Abbreviations Alphabetical Index Group Index

	Part No.	Description	Group	Ref#	12V	16V	Price	QOH
Details	5142725	Carrier & Weight Assembly; (Option Type #"s 968, 999, 1132, 1205, 1206, 1858, 1859, 1860)	2.7330	00	1	1	$1,093.66	1
Details	5142934	Shaft & Carrier Assembly	2.7330	00	1	1	$886.40	0
Details	5142724	Shaft	2.7330	00	1	1	$354.96	0
Details	5147913	Weight Assembly	2.7330	00	3	3	$242.69	12
Details	5151487	Washer, 0.384" I.D. X 11/16" O.D. X 0.033" Thick; (2.7430)	2.7330	00	12	12	$1.85	100+
Details	5178581	Ring, Retainer, 0.347" I.D. X 0.048" X 0.048" Thick; (2.7430)	2.7330	00	6	6	$0.67	100+
Details	5185154	Pin; Ring Groove	2.7330	00	3	3	$23.42	21
Details	5142931	Carrier & Weight Assembly; (Option Type #"s 969, 1207, 1208, 1521, 1522, 1857, 1861, 1862)	2.7330	00	1	1	$901.39	0
Details	5142935	Shaft & Carrier Assembly	2.7330	00	1	1	$640.96	0
Details	5142936	Shaft	2.7330	00	1	1	$278.52	0
Details	5147913	Weight Assembly	2.7330	00	3	3	$242.69	12
Details	5151487	Washer, 0.384" I.D. X 11/16" O.D. X 0.033" Thick; (2.7430)	2.7330	00	12	12	$1.85	100+
Details	5178581	Ring, Retainer, 0.347" I.D. X 0.048" X 0.048" Thick; (2.7430)	2.7330	00	6	6	$0.67	100+
Details	5185154	Pin; Ring Groove	2.7330	00	3	3	$23.42	21
	5138449	Housing; (Option Type #"s 966, 967, 969, 999, 1000) (OBSOLETE)	2.7340	22	1	1	OBSOLETE	0
Details	5144829	Housing	2.7340	22	A/R	A/R	$1,508.47	1
Details	8924380	Plug, 1/8"-27 Pipe; W/Seal; (12.9550)	2.7340	23	A/R	A/R	$0.57	100+
Details	5197146	Plug, Cup; Shaft Hole; (5.1030)	2.7340	23	A/R	A/R	$42.85	16
Details	5138474	Plug; (2.7510)	2.7340	23	A/R	A/R	$130.93	0
Details	5147910	Riser	2.7380	25	A/R	A/R	$67.18	3
Details	9438907	Bearing, 0.551" W.; (Option Type #969)	2.7460	26		1	$93.48	28
Details	9440384	Bearing Superceded... Click 'Details' for replacement.	2.7460	26	A/R	A/R		0
Details	23503710	Bearing	2.7470	27	A/R	A/R	$32.17	17
Details	5150884	Screw 5/16"-24 X 3/8" L.	2.7470	28	A/R	A/R	$24.79	14
Details	5150897	Lockwasher, 21/64"	2.7470	29	A/R	A/R	$0.76	72
Details	5150941	Washer, 21/64"; (2.7310)	2.7470	00	A/R	A/R	$1.09	75
Details	5138474	Plug; (2.7510)	2.7510	30	A/R	A/R	$130.93	0
Details	5134092	Gasket	2.7515	31	A/R	A/R	$7.85	17
Details	186270	Bolt, 5/16"-18 X 3.5"	2.7635	00	A/R	A/R	$1.29	14
Details	445520	Bolt, 5/16"-18 X 3.5"; (12.9001)	2.7635	00	A/R	A/R	$34.60	5
Details	5155596	Washer, 21/64" Special Copper; (4.7120)	2.7635	00	A/R	A/R	$1.97	100+
Details	8922593	Gasket	2.7650	00	A/R	A/R	$2.95	45
	CONTINUE TO NEXT PAGE FOR GROUP 2.7680
