Series 149 Detroit Diesel Engines

CRANKSHAFT FRONT COVER - groups: 1.3164 - 1.3198

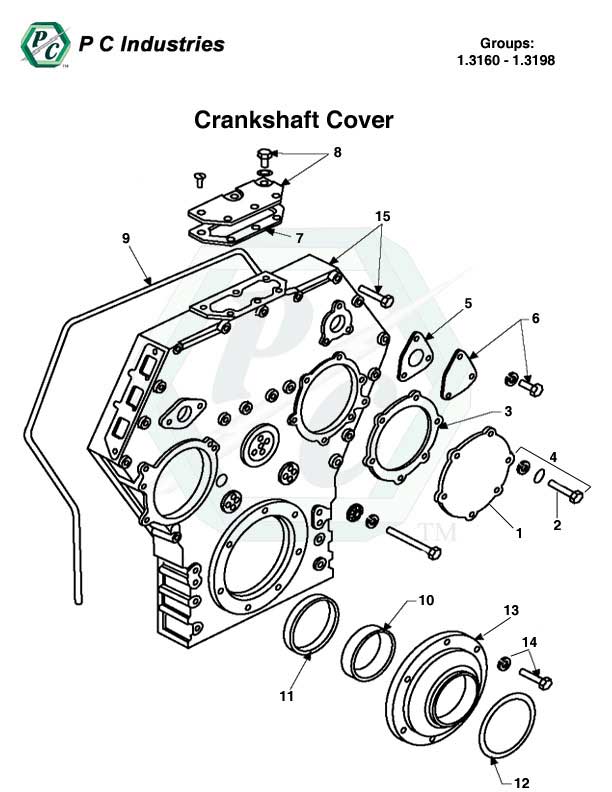

1.3160 - 1.3198 Crankshaft Cover.jpg - Diagram

Page: 14

Information Abbreviations Alphabetical Index Group Index

	Part No.	Description	Group	Ref#	8V	12V	16V	20V	Price	QOH
Details	5107179	Bolt, 1/2"-13 X 1.25"	1.3164	14	7	7	7	7	$10.40	0
Details	5132715	Washer, 0.53" X 0.94" X 0.12"; (1.3140)	1.3164	14	7	7	7	7	$6.61	42
Details	23505760	Seal, Oil; W/Dust Lip (Teflon Lip) Superceded... Click 'Details' for replacement.	1.3164	12	1	1	1	1		3
Details	23515534	Oil Seal Kit	1.3164	00	A/R	A/R	A/R	A/R	$281.90	13
Details	23514147	Service Kit, Seal & Sleeve; Front R.H. Rotation	1.3164	00	A/R	A/R	A/R	A/R	$334.84	11
Details	23512661	Support Assembly; (Option Type #'s 191, 203)	1.3164	13	1	1	1	1	$2,054.05	0
Details	23511323	Support Assembly; (Option Type #'s 182, 196)	1.3164	13	1	1	1	1	$1,130.83	12
Details	23511309	Support Assembly	1.3164	13	1	1	1	1	$515.42	4
Details	8922704	Bushing	1.3164	11	1	1	1	1	$1,301.02	28
Details	23509688	Bushing, Crankshaft Front Support Bearing (OBSOLETE)	1.3165	10	A/R	A/R	A/R	A/R	OBSOLETE	1
Details	8922704	Bushing, Crankshaft Front Support Bearing	1.3165	10	A/R	A/R	A/R	A/R	$1,301.02	28
Details	5141037	Seal Ring; 0.880" I.D.; Water Holes	1.3170	09	2	2	2	2	$33.06	13
Details	5141245	Seal, Strip;1.5010	1.3170	09	1	1	1	1	$20.59	12
Details	8927580	Bolt, 3/8"-16 X 1.015"; (12.9001); (Option Type #'s 100, 105, 106, 130, 131, 132, 139, 140, 141, 146, 147, 150)	1.3175	08	5	5	5	5	$4.55	95
Details	5143555	Cover, Access Hole; (Option Type #'s 100, 105, 106, 130, 131, 132, 139, 140, 141, 146, 147, 150)	1.3175	08	1	1	1	1	$58.31	0
Details	114671	Screw; 3/8"-16 X 7/8" Flared Head; (12.9030); (Option Type #'s 100, 105, 106, 130, 131, 132, 139, 140, 141, 146, 147, 150)	1.3175	08	1	1	1	1	$1.47	1
Details	5140419	Gasket; (2.8039); (Option Type #'s 100, 105, 106, 130, 131, 132, 139, 140, 141, 146, 147, 150)	1.3177	07	1	1	1	1	$6.94	12
Details	8927580	Bolt, 3/8"-16 X 1.015"; (12.9001)	1.3195	06	A/R	A/R	A/R	A/R	$4.55	95
Details	8927581	Bolt, 3/8"-16 X 1.135"; (12.9001); (Option Type #'s 100, 105, 106, 130, 131, 132, 139, 140, 141, 146, 147, 150)	1.3195	06	3	3	3	3	$7.64	100+
Details	103321	Lockwasher, 3/8"; (Option Type #'s 100, 105, 106, 130, 131, 132, 139, 140, 141, 146, 147, 150)	1.3195	06	3	3	3	3	$0.17	100+
Details	5198636	Plate, Water Hole Cover; (Option Type #'s 100, 105, 106, 130, 131, 132, 139, 140, 141, 146, 147, 150)	1.3195	06	1	1	1	1	$84.35	7
Details	5141878	Gasket; (5.3421); (Option Type #'s 100, 105, 106, 130, 131, 132, 139, 140, 141, 146, 147, 150)	1.3196	05	1	1	1	1	$8.12	48
Details	8927580	Bolt, 3/8"-16 X 1.015"; (12.9001)	1.3197	02	A/R	A/R	A/R	A/R	$4.55	95
	8927677	Bolt, 3/8"-16 X 0.755"; (12.9001); (Option Type # 171) (OBSOLETE)	1.3197	02	6	6	6	6	OBSOLETE	0
Details	8927581	Bolt, 3/8"-16 X 1.135"; (12.9001); (Option Type #'s 100, 105, 106, 130, 131, 132, 149, 151)	1.3197	02	5	5	5	5	$7.64	100+
Details	5139582	Cover, Crankshaft Front; Large Hole; (Option Type #'s 171, 191)	1.3197	01	1	1	1	1	$164.40	0
Details	23519021	Cover, Crankshaft Front; (Option Type #'s 100, 105, 106, 130, 131, 132, 149, 151)	1.3197	01	1	1	1	1	$2,444.16	3
Details	103321	Lockwasher, 3/8"; (Option Type #'s 100, 105, 106, 130, 131, 132, 149, 151)	1.3197	04	6	6	6	6	$0.17	100+
Details	103026	Nut, 3/8"-24; (Option Type #'s 100, 105, 106, 130, 131, 132, 149)	1.3197	04	1	1	1	1	$0.97	100+
Details	8924380	Plug; 1/8"-27 Pipe; W/Seal; (12.9550); (Option Type #'s 100, 105, 106, 130, 131, 132, 149, 151)	1.3197	04	1	1	1	1	$0.57	100+
Details	8923847	Plug, Pipe; 1/4-18" NPTF; (Option Type #'s 171, 191) Superceded... Click 'Details' for replacement.	1.3197	04	1	1	1	1		100+
Details	103194	Stud; 3/8"-16/24 X 1 5/16"; (Option Type #'s 100, 105, 106, 130, 131, 132, 149, 151)	1.3197	04	1	1	1	1	$2.78	0
Details	5139583	Gasket; (Option Type #'s 105, 130, 131, 132, 149, 171, 191)	1.3198	03	1	1	1	1	$5.71	46
	CONTINUE TO NEXT PAGE FOR GROUP 1.3210
