Series 149 Detroit Diesel Engines

TURBOCHARGER - group: 3.5001

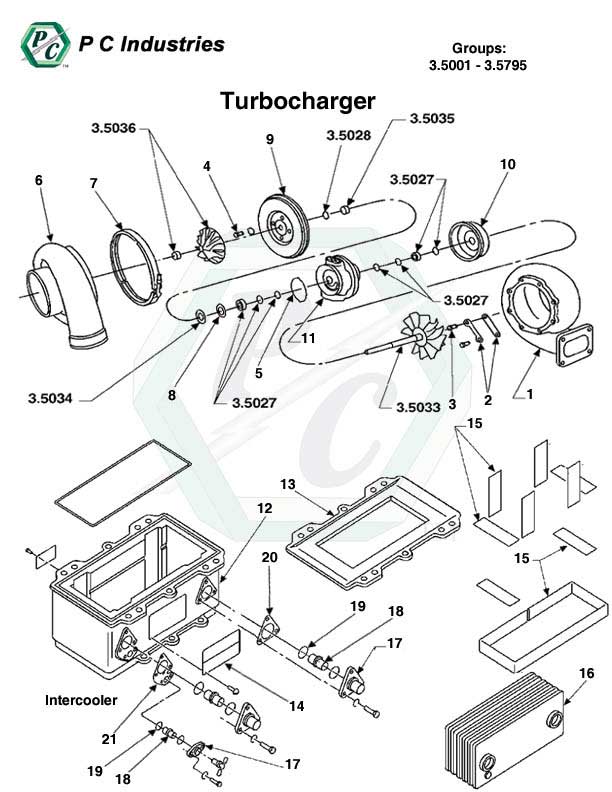

3.5001 - 3.5795 Turbotcharger.jpg - Diagram
Page: 160
Information   Abbreviations   Alphabetical Index   Group Index
Part No. Description Group Ref#8V12V16V20V Price QOH
Details 23512125 Turbocharger Assembly,12V, 1.50 A/R; (TV9501); (Option
Type #'s 1416, 1421, 1484, 1511, 1536, 1612, 1726)
Superceded... Click 'Details' for replacement. 		3.500100A/R0
23512185 Housing (OBSOLETE) 3.5001001OBSOLETE0
23512186 Housing 3.50010010
Details 5198996 Bolt, 5/16"-18 X 1/2" 3.5001038$9.160
Details View Images 5199494 Clamp 3.5001004$10.7152
Details 173639 Screw, Drive, 0.073" X 1/4" 3.5001002$0.510
Details 23512183 Housing & Rotating Assembly 3.5001001$7,846.490
Details 23505493 Clamp; (Vee Band) 3.5001071$117.720
23512184 Housing (OBSOLETE) 3.5001001OBSOLETE0
Details View Images 5149163 Locknut, 1/4"-28 3.5001001$18.582
23514217 Turbocharger Assembly, 12V, 1.23 A/R; (TV7307);
(Option Type #'s 1597) (OBSOLETE) 		3.500100A/ROBSOLETE0
23514216 Housing, Comp. Turbine; (TV7307) 3.50010010
Details 23503754 Screw, M4 X 10.0mm 3.5001003$9.280
View Images 23514798 Housing & Rotating Assembly (OBSOLETE) 3.5001001OBSOLETE0
Details View Images 5149173 Shroud, Wheel 3.5001101$189.45100+
Details View Images 5198936 Ring, Seal 3.5001051$9.6167
Details 8925742 Housing 3.5001111$886.036
Details 8925746 Backplate Assembly 3.5001091$386.060
Details 8925748 Bearing, Thrust; (Outboard) 3.5001081$271.110
Details View Images 8925750 Bolt, 1/4"-20 X 1" 3.5001044$1.8238
Details 23504657 Housing
Superceded... Click 'Details' for replacement. 		3.50010010
Details View Images 23505492 Clamp; (Vee Band) 3.5001001$106.1413
Details 23505493 Clamp; (Vee Band) 3.5001071$117.720
Details View Images 5149163 Locknut, 1/4"-28 3.5001002$18.582
GROUP 3.5001 CONTINUED ON NEXT PAGE
