Series 149 Detroit Diesel Engines

TURBOCHARGER - group: 3.5001

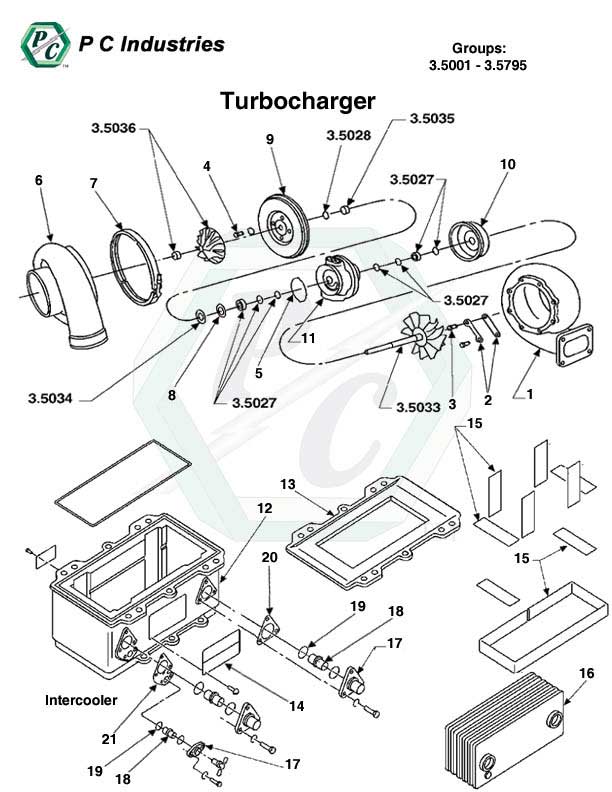

3.5001 - 3.5795 Turbotcharger.jpg - Diagram
Page: 164
Part No. Description Group Ref#8V12V16V20V Price QOH
Details 5108082 Turbocharger Assembly, 16V, 1.60 A/R; (TV8115); (Option
Type #'s 482, 485, 488, 489, 973)
Superceded... Click 'Details' for replacement.
3.500100A/R2
Details View Images 23505492 Clamp; (Vee Band) 3.5001001$103.0513
Details 5149175 Housing 3.5001011$961.320
Details 173639 Screw, Drive, 0.073" X 1/4" 3.5001001$0.510
Details 186629 Bolt, 5/16"-18 X 1" 3.5001002$0.3949
Details View Images 5149153 Housing; (Includes Pins) 3.5001111$676.001
Details View Images 5149158 Lock Plate, Bolt Locking 3.5001004$1.2619
Details 8925757 Shroud, Wheel 3.5001101$280.810
Details View Images 5198936 Ring, Seal 3.5001051$9.3470
Details 5199620 Pin, Groove, 0.10" Diameter X 2.5" L. 3.5001002$6.150
Details 8922340 Back Plate, Rotor 3.5001091$478.640
Details 8922343 Housing Assembly 3.5001111$2,326.740
Details View Images 9419006 Bolt, 1/4"-20 X 1"; (12.9001) 3.5001044$3.1619
Details View Images 5149163 Locknut, 1/4"-28 3.5001002$9.382
Details 8922339 Housing 3.5001061$670.980
Details 23505493 Coupling, Indexing 3.5001071$114.290
Details 8922946 Turbocharger Assembly, 16V, 1.39 A/R; (TV8115); (Option
Type #'s 563 & 919)
Superceded... Click 'Details' for replacement.
3.500100A/R0
Details View Images 5149170 Housing 3.5001011$577.8925
Details 173639 Screw, Drive, 0.073" X 1/4" 3.5001002$0.510
Details View Images 5149153 Housing; (Includes Pins) 3.5001111$676.001
Details View Images 5149158 Lock Plate, Bolt Locking 3.5001004$1.2619
Details 8925757 Shroud, Wheel 3.5001101$280.810
Details View Images 5198936 Ring, Seal 3.5001051$9.3470
Details 5199620 Pin, Groove, 0.10" Diameter X 2.5" L. 3.5001002$6.150
Details View Images 5199852 Bearing, Thrust; Inboard 3.5001081$57.5522
Details 8922340 Back Plate, Rotor 3.5001091$478.640
Details 8922343 Housing Assembly 3.5001111$2,326.740
Details View Images 9419006 Bolt, 1/4"-20 X 1"; (12.9001) 3.5001044$3.1619
Details View Images 23505492 Clamp; (Vee Band) 3.5001001$103.0513
Details View Images 5149163 Locknut, 1/4"-28 3.5001002$9.382
Details 8922339 Housing 3.5001061$670.980
Details 23505493 Coupling, Indexing 3.5001071$114.290
GROUP 3.5001 CONTINUED ON NEXT PAGE
