Series 149 Detroit Diesel Engines

TURBOCHARGER - groups: 3.5550 - 3.5750

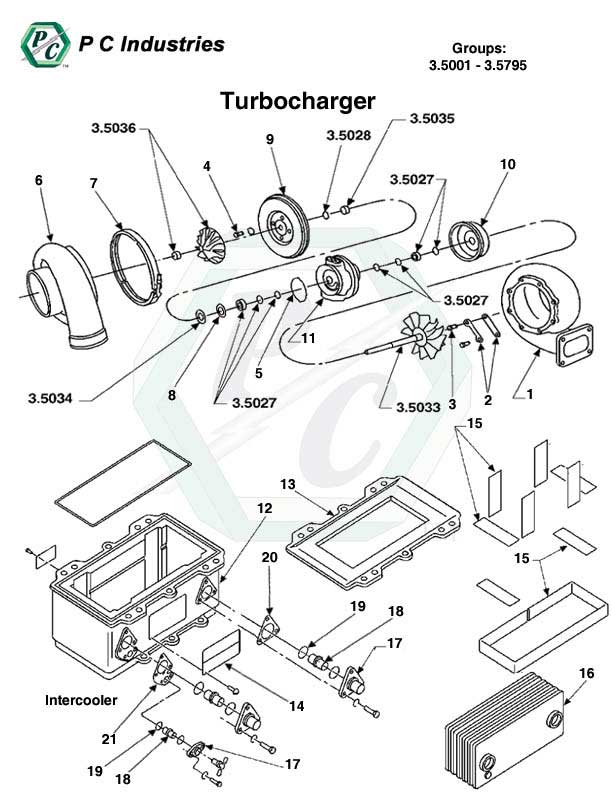

3.5001 - 3.5795 Turbotcharger.jpg - Diagram

Page: 188

Information Abbreviations Alphabetical Index Group Index

	Part No.	Description	Group	Ref#	8V	12V	16V	20V	Price	QOH
Details	23505188	Tube & Bracket Assembly, Solenoid Valve	3.5550	00	A/R	A/R	A/R	A/R	$991.53	0
	23506624	Tube & Bracket Assembly, Solenoid Valve	3.5550	00	A/R	A/R	A/R	A/R		0
Details	23505189	Tube & Cover Assembly, Solenoid Valve	3.5550	00	A/R	A/R	A/R	A/R	$248.74	0
Details	23505190	Tube Assembly, Solenoid Valve	3.5550	00	A/R	A/R	A/R	A/R	$256.96	0
Details	23511748	Tube Assembly; Ilcc	3.5550	00	A/R	A/R	A/R	A/R	$365.79	0
Details	8920850	Cover	3.5550	00	A/R	A/R	A/R	A/R	$35.70	50
Details	100158	Bolt, 1/2"-13 X 1" Superceded... Click 'Details' for replacement.	3.5550	00	A/R	A/R	A/R	A/R		0
Details	186612	Bolt, 3/8"-16 X 1.375"	3.5550	00	A/R	A/R	A/R	A/R	$0.97	4
Details	186285	Bolt, 3/8-16 X 4.00"	3.5550	00	A/R	A/R	A/R	A/R	$1.98	0
Details	179857	Bolt, 7/16"-14 X 7/8"	3.5550	00	A/R	A/R	A/R	A/R	$1.05	-1
Details	8924158	Bushing, Reducing Pipe, 1/2" X 3/8" W/9	3.5550	00	A/R	A/R	A/R	A/R	$4.57	4
Details	8924148	Connector 1/2" Flared Tube, 3/8" NPTF Brass	3.5550	00	A/R	A/R	A/R	A/R	$6.89	0
Details	9432268	Connector, 1/2" Inverted Flared Tube, 1/2" NPTF Brass	3.5550	00	A/R	A/R	A/R	A/R	$7.55	0
Details	8924169	Connector, 1/2" Inverted Flared Tube, 3/8" Pipe; (12.9460)	3.5550	00	A/R	A/R	A/R	A/R	$5.64	0
Details	5199580	Fitting, #8 Hose, 3/4"-18 Male Inverted Flared; Straight	3.5550	00	A/R	A/R	A/R	A/R	$33.75	3
Details	5142921	Hose Assembly, #8 X 10.25" R.B.	3.5550	00	A/R	A/R	A/R	A/R	$102.38	0
Details	5199576	Hose, Bulk #8 X 25 Ft.; (12.8550)	3.5550	00	A/R	A/R	A/R	A/R	$317.61	1
Details	103323	Lockwasher, 1/2"	3.5550	00	A/R	A/R	A/R	A/R	$0.15	239
Details	103321	Lockwasher, 3/8"	3.5550	00	A/R	A/R	A/R	A/R	$0.35	279
Details	103322	Lockwasher, 7/16"	3.5550	00	A/R	A/R	A/R	A/R	$0.33	125
	5173334	Plug, 1/2" Pipe, Square Socket; (12.9550) (OBSOLETE)	3.5550	00	A/R	A/R	A/R	A/R	OBSOLETE	0
Details	103341	Washer, 3/8"	3.5550	00	A/R	A/R	A/R	A/R	$0.34	303
Details	103342	Washer, 7/16"	3.5550	00	A/R	A/R	A/R	A/R	$0.15	354
Details	23514955	Kit, Blower Bypass System; 12V	3.5749	00		A/R			$3,984.31	0
Details	23514956	Kit, Blower Bypass System; 12V	3.5749	00		A/R			$4,581.06	0
Details	23514953	Kit, Blower Bypass System; 8V & 16V	3.5749	00	A/R		A/R		$2,589.16	0
Details	23514957	Kit, Blower Bypass System; 8V & 16V	3.5749	00	A/R		A/R		$4,054.72	0
Details	23514958	Kit, Blower Bypass System; 8V & 16V	3.5749	00	A/R		A/R		$4,896.56	0
	23502167	Adaptor Assembly; 12V; (Option Type #'s 739, 740, 817, 826, 897, 911, 912, 916, 933) (OBSOLETE)	3.5750	00		2			OBSOLETE	2
	8924872	Adaptor Assembly; 16V; (Option Type #'s 736, 738)	3.5750	00			2			0
	8927554	Adaptor Assembly; 16V; (Option Type #"s 913, 951, 952, 973, 987, 1032) (OBSOLETE)	3.5750	00			2		OBSOLETE	0
	8925115	Adaptor Assembly; 8V; (Option Type #"s 809, 810, 910)	3.5750	00	1					0
	8927555	Adaptor Assembly; 8V; (Option Type #"s 915, 934, 949) (OBSOLETE)	3.5750	00	1				OBSOLETE	0
	GROUP 3.5750 CONTINUED ON NEXT PAGE
