Series 149 Detroit Diesel Engines

TURBOCHARGER - groups: 3.5755 - 3.5775

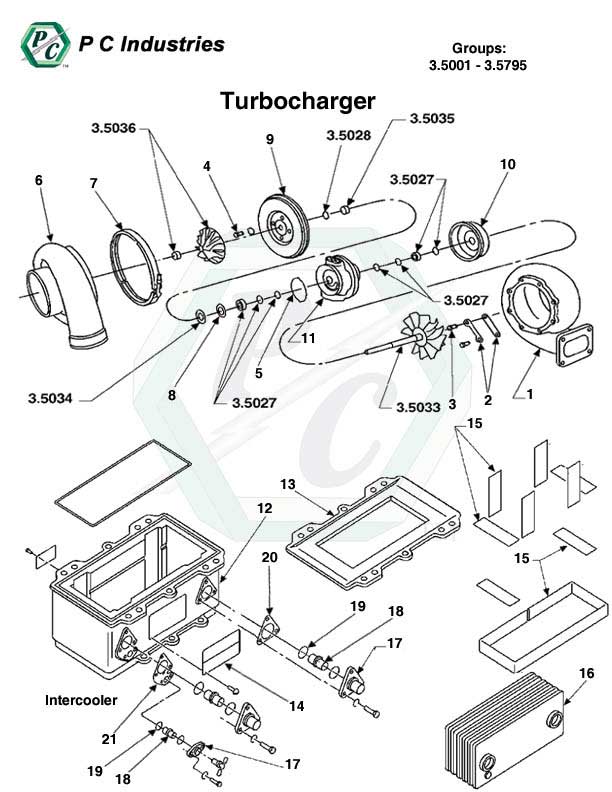

3.5001 - 3.5795 Turbotcharger.jpg - Diagram
Page: 191
Part No. Description GroupRef#8V12V16V20V Price QOH
Details View Images 191249 Bolt, 3/8"-16 X 3.75"; (12.9001) 3.575500A/RA/RA/RA/R$2.091
Details View Images 5146480 Bushing; 16V 3.575500A/RA/RA/RA/R$7.406
Details View Images 103321 Lockwasher, 3/8" 3.575500A/RA/RA/RA/R$0.1427
Details View Images 5119314 Pin; (2.7230) 3.575500A/RA/RA/RA/R$11.2429
Details View Images 5150132 Plug, 3/4" Diameter Cup; (1.1001) 3.575500A/RA/RA/RA/R$1.14650
Details View Images 5154453 Plug, 3/8"-16; (12.001) 3.575500A/RA/RA/RA/R$1.02695
Details View Images 23511895 Seal, Blo. Bp. Adaptor, 23.72 X 0.098; Orange; 8V & 16V 3.575500A/RA/RA/RA/R$16.3334
Details View Images 5131913 Washer, 13/16" X 29/64" X 5/32"; (3.4001) 3.575500A/RA/RA/RA/R$2.0020
Details View Images 103341 Washer, 3/8" 3.575500A/RA/RA/RA/R$0.3044
Details View Images 9414322 Washer, 3/8" X 0.738" X 0.63; (12.9190) 3.575500A/RA/RA/RA/R$0.1473
Details View Images 23502323 Cover 3.575600A/RA/RA/RA/R$168.501
Details 23504839 Bolt, 3/8"-16 X 3.135"; (12.9001) 3.575600A/RA/RA/RA/R$0.950
Details 23504296 Label, Caution, Blower Bypass Valve; (Black & Yellow) 3.575600A/RA/RA/RA/R$5.050
8924852 Shaft, 7.79" L.; (Option Type #'s 736, 738, 739, 740, 817,
826, 897) (OBSOLETE)
3.5760002222OBSOLETE0
Details 8927548 Shaft, 7.79" L.; (Option Type #"s 911, 912, 913, 916, 920,
923, 927, 933, 951, 952, 973, 987, 1032)
3.5760002222$200.700
Details 8927556 Shaft, 8.51" L.; (Option Type #'s 915, 934, 949) 3.5760001111$142.020
Details View Images 23502322 Gasket 3.576400A/RA/RA/RA/R$1.8039
Details View Images 8924863 Seal; (3.5765) 3.576500A/RA/RA/RA/R$78.592
Details 8927546 Valve 3.577000A/RA/RA/RA/R$206.580
Details 23502325 Valve, Bypass 3.577000A/RA/RA/RA/R$235.141
Details 23517070 Valve, Regulator 3.577000A/RA/RA/RA/R$650.843
8924850 Valve; (Flapper Style) (OBSOLETE) 3.577000A/RA/RA/RA/ROBSOLETE0
Details 8927549 Bolt, 1/4"-20 X 1/2"; W/Seal Patch; (12.9001) 3.577000A/RA/RA/RA/R$4.840
8924851 Screw, #10-24 X 3/8" (OBSOLETE) 3.577000A/RA/RA/RA/ROBSOLETE0
Details 8925334 Block
Superceded... Click 'Details' for replacement.
Replaced by 3 items.
3.577100A/RA/RA/RA/R0
Details 8927547 Block 3.577100A/RA/RA/RA/R$267.170
Details View Images 23502326 Seal 3.577200A/RA/RA/RA/R$18.0173
Details View Images 23502324 Spring 3.577300A/RA/RA/RA/R$324.633
Details View Images 8927550 Lever 3.577500A/RA/RA/RA/R$70.161
Details 179796 Bolt, 1/4"-20 X 7/8" 3.577500A/RA/RA/RA/R$0.290
GROUP 3.5775 CONTINUED ON NEXT PAGE
