Series 149 Detroit Diesel Engines

INTERCOOLER - groups: 3.7050 - 3.7060

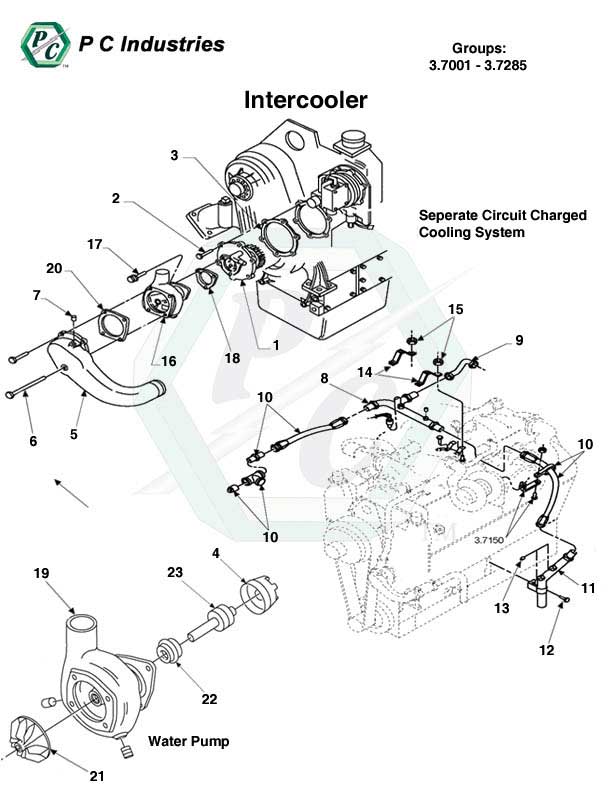

3.7001 - 3.7285 Intercooler And Aftercooler.jpg - Diagram

Page: 198

Information Abbreviations Alphabetical Index Group Index

	Part No.	Description	Group	Ref#	8V	12V	16V	20V	Price	QOH
Details	23501600	Clamp, 2.25"-3.125" Clamping Range; (12.9660)	3.7050	00	A/R	A/R	A/R	A/R	$28.04	26
Details	23503675	Hose, 2.5" X 2.75" L.	3.7050	00	A/R	A/R	A/R	A/R	$22.07	5
Details	103323	Lockwasher, 1/2"	3.7050	00	A/R	A/R	A/R	A/R	$2.41	100+
Details	103322	Lockwasher, 7/16"	3.7050	00	A/R	A/R	A/R	A/R	$0.52	100+
Details	103345	Washer, 5/8" X 1.325" X 0.097 Stl. Pln.	3.7050	00	A/R	A/R	A/R	A/R	$0.55	0
Details	9139809	Clamp, 2 1/16"-3" Clamping Range; (12.9660)	3.7055	00	A/R	A/R	A/R	A/R	$1.85	62
Details	23501600	Clamp, 2.25"-3.125" Clamping Range; (12.9660)	3.7055	00	A/R	A/R	A/R	A/R	$28.04	26
Details	5199781	Hose, 2.5" I.D. X 2.24"L.	3.7055	00	A/R	A/R	A/R	A/R	$83.94	0
Details	23503675	Hose, 2.5" X 2.75" L.	3.7055	00	A/R	A/R	A/R	A/R	$22.07	5
Details	5147648	Coupling Assembly, Flex.; (5.5380); (Option Type #'s 16, 19, 20, 24)	3.7060	00	A/R	A/R	A/R	A/R	$317.02	2
Details	BGLM0545	Hose Assembly, #24 X 59.3" L.	3.7060	00	A/R	A/R	A/R	A/R	$892.51	0
	DGLM0550	Hose Assembly, #24 X 59.8" L.	3.7060	00	A/R	A/R	A/R	A/R		0
Details	23512269	Tube & Flange Assembly; W/Pump Outlet; (Option Type #'s 20 & 24)	3.7060	00	1	1	1	1	$520.68	0
Details	23512653	Tube Assembly; (Option Type #'s 2, 3, 23)	3.7060	00	1	1	1	1	$333.85	0
Details	23513063	Tube Assembly; (Option Type #3)	3.7060	00	1	1	1	1	$354.29	0
Details	23509713	Tube Assembly, Raw Water Outlet, R.B.; Rear Of Reaev. L. 28.79"; (Option Type #'s 16 & 19)	3.7060	00	1	1	1	1	$1,138.68	0
Details	23512212	Tube Assembly, Water Outlet Pump; (Option Type #'s 22 & 25)	3.7060	00	1	1	1	1	$322.06	0
	23513062	Tube Assembly, Water Pump Strainer; (Option Type #23)	3.7060	00	1	1	1	1		0
Details	186679	Bolt, 3/8"-16 X 1.25"	3.7060	00	A/R	A/R	A/R	A/R	$1.26	12
Details	272547	Bolt, 3/8"-16 X 6 1/2"; (12.9001)	3.7060	00	A/R	A/R	A/R	A/R	$8.29	3
Details	186290	Bolt, 3/8"-16 X 6"	3.7060	00	A/R	A/R	A/R	A/R	$3.96	3
Details	8925001	Bushing, 1.5" X 1.25" Reducing; (12.9570)	3.7060	00	A/R	A/R	A/R	A/R	$15.76	0
Details	5124733	Clip, 1.5"; (4.8180)	3.7060	00	A/R	A/R	A/R	A/R	$6.13	0
Details	5118351	Clip, 2"	3.7060	00	A/R	A/R	A/R	A/R	$7.24	0
Details	8925710	Draincock, 3/8"; (12.9510)	3.7060	00	A/R	A/R	A/R	A/R	$11.64	76
Details	9410286	Elbow, 90�	3.7060	00	A/R	A/R	A/R	A/R	$86.59	0
Details	23501643	Elbow, 90� 1.5"	3.7060	00	A/R	A/R	A/R	A/R	$24.58	2
Details	23501642	Elbow, 90� 1.5" Pipe; (12.9600)	3.7060	00	A/R	A/R	A/R	A/R	$113.97	2
Details	103321	Lockwasher, 3/8"	3.7060	00	A/R	A/R	A/R	A/R	$0.17	100+
Details	8924517	Plug, 3/8"-18 Square Socket; Vibra Seal; (12.9550)	3.7060	00	A/R	A/R	A/R	A/R	$1.00	100+
Details	8923847	Plug, Pipe, 1/4-18" NPTF Superceded... Click 'Details' for replacement.	3.7060	00	A/R	A/R	A/R	A/R		100+
	GROUP 3.7060 CONTINUED ON NEXT PAGE
