Series 149 Detroit Diesel Engines

CYLINDER BLOCK - group: 1.1001

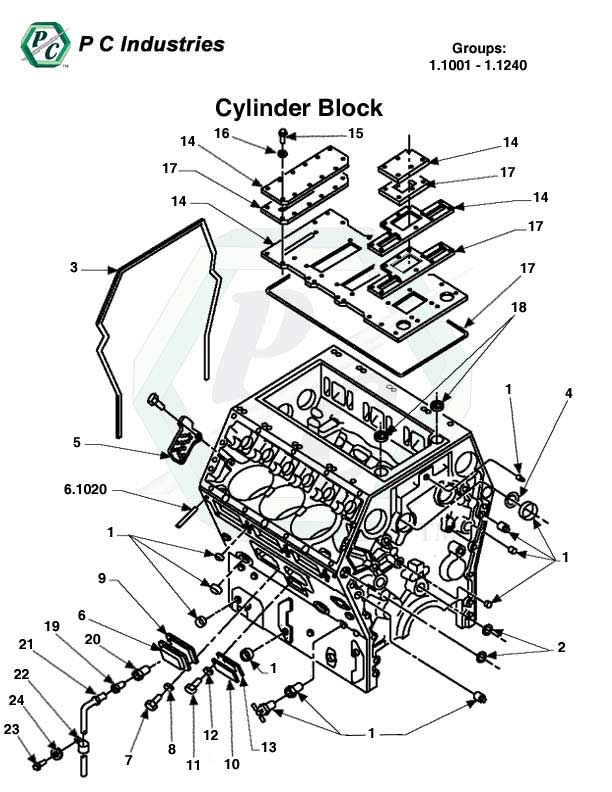

1.1001 - 1.1240 Cylinder Block.jpg - Diagram
Page: 2
Part No. Description Group Ref#8V12V16V20V Price QOH
Block Assembly Subcomponents Continued...
Details View Images 5144211 Insert; 5/8" O.D. X 3/8" I.D. X 1.25" L. 1.1001002A/RA/R2$62.6620
Details View Images 141359 Pin, Dowel; 1/4" X 1/2"; (12.9290) 1.100101A/RA/RA/RA/R$0.5844
Details View Images 141212 Pin, Dowel; 5/16" X 5/16" 1.100101A/RA/RA/RA/R$4.0520
Details View Images 5151576 Pin, Dowel; 1/2" X 1.625" 1.100101A/RA/RA/RA/R$3.0457
456299 Pin, Spring; 1/4" X 1" (OBSOLETE) 1.100101A/RA/RA/RA/ROBSOLETE0
Details 8924380 Plug, Pipe W/Seal; 1/8"-27; (12.9550) 1.100101A/RA/RA/RA/R$1.144538
Details View Images 8923847 Plug, Pipe; 1/4-18"; NPTF. 1.100101A/RA/RA/RA/R$0.861346
Details View Images 8923313 Plug, Pipe; 3/4"; (12.9550) 1.100101A/RA/RA/RA/R$1.22249
Details View Images 8924751 Plug; 1.25"; (12.9550) 1.100101A/RA/RA/RA/R$4.50143
Details View Images 9427118 Plug; 1.75" Cup; (12.9320) 1.100101A/RA/RA/RA/R$2.38497
Details View Images 5178998 Plug; 1.75"-16; (1.1001) 1.100101A/RA/RA/RA/R$15.0915
Details View Images 5132410 Plug; 1.625" Cup; Stainless Steel 1.100101A/RA/RA/RA/R$1.8541
Details View Images 5139990 Plug; 1 7/16" Cup 1.100101A/RA/RA/RA/R$3.368
Details View Images 5139988 Plug; 1" Diameter Cup; Stainless 1.100101A/RA/RA/RA/R$0.97131
Details View Images 5139991 Plug; 1-1/2" Cup; (1.1001) 1.100101A/RA/RA/RA/R$1.40127
Details View Images 5109157 Plug; 1-1/4" Cup; (5.5001) 1.100101A/RA/RA/RA/R$1.88128
Details View Images 5139989 Plug; 2.5" Cup; (1.1001) 1.100101A/RA/RA/RA/R$7.8351
Details View Images 5138646 Plug; 2.5"-16 1.100101A/RA/RA/RA/R$44.6239
Details View Images 5101283 Plug; 2.5"-16; Skt. Head 1.100101A/RA/RA/RA/R$116.52149
Details View Images 9421768 Plug; 3" Cup; (12.9320) 1.100101A/RA/RA/RA/R$5.9830
Details View Images 8925361 Plug; 3/4"-14; NPTF; (12.9550) 1.1001014444$9.5628
Details View Images 5154453 Plug; 3/8"-16; (12.001) 1.100101A/RA/RA/RA/R$1.76611
Details View Images 8924517 Plug; 3/8"-18 Square Socket; Vibra Seal; (12.9550) 1.100101A/RA/RA/RA/R$1.00792
Details View Images 5156280 Plug; 5/8" Cup; (3.3003) 1.1001014444$6.538
Details View Images 222591 Screw, Set; 1/2"-13 X 3/4"; Front Block 1.100100A/RA/RA/RA/R$4.55164
Details 222502 Screw, Set; 3/8"-16 X 3/8" 1.100100222A/R$5.460
Details View Images 138201 Screw; 1/4"-20 X 3/4"; Socket Head 1.100100A/RA/RA/RA/R$1.58180
5147478 Sleeve, Water Hole (OBSOLETE) 1.1001004256OBSOLETE0
Details View Images 5143349 Sleeve; 1.25" Diameter 1.100100A/RA/RA/RA/R$23.0720
Details View Images 23504738 Spacer, Main Oil Gallery; Front Block 1.100100111$28.208
Details View Images 5141036 Spacer, Water Hole Seal 1.100100A/RA/RA/RA/R$58.0320
Details View Images 8927921 Stud; 1/2"-20 X 2.5"; (6.020) 1.100100A/RA/RA/RA/R$4.06253
Details View Images 8925804 Stud; 7/16"-14/20 X 2 3/32"; (6.1020) 1.100100A/RA/RA/RA/R$1.79292
Details View Images 5139851 Washer, Main Bearing Cap Bolt; (1.1003) 1.100100A/R1620A/R$5.2241
Details View Images 5131755 Washer, 17/32" X 0.88" X 0.1345"; (1.7250) 1.100100161216A/R$1.9471
Details View Images 5169866 Washer, 17/64" Copper; (2.8810) 1.100100A/RA/RA/RA/R$2.88150
CONTINUE TO NEXT PAGE FOR GROUP 1.1002
