Series 149 Detroit Diesel Engines

INTERCOOLER - group: 3.7080

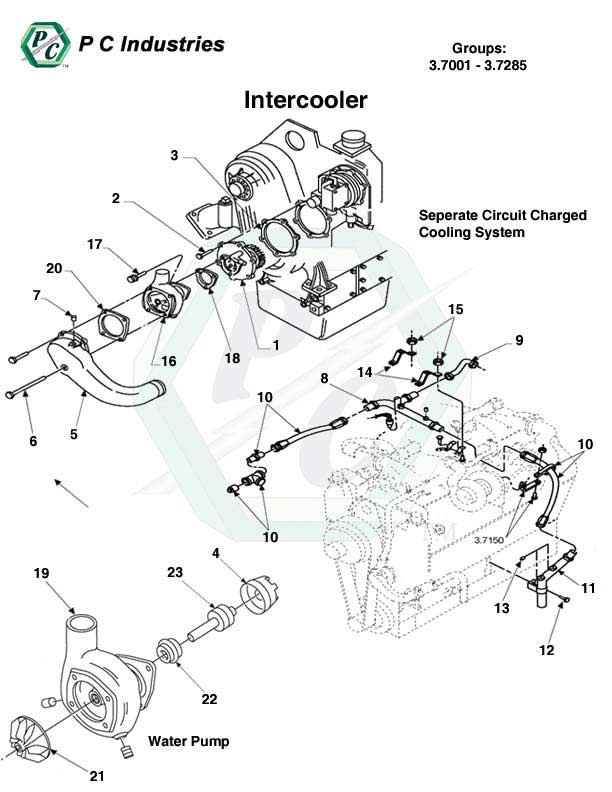

3.7001 - 3.7285 Intercooler And Aftercooler.jpg - Diagram

Page: 203

Information Abbreviations Alphabetical Index Group Index

	Part No.	Description	Group	Ref#	8V	12V	16V	20V	Price	QOH
	AFHJ0155	Hose Assembly, #20 X 20.0 H&J	3.7080	08	A/R	A/R	A/R	A/R		0
	DFLV0205	Hose Assembly, #20 X 24.8" L.; (Option Type #18)	3.7080	08	1		1			0
	DFLV0206	Hose Assembly, #20 X 24.9" L.; (Option Type #6)	3.7080	08	1		1			0
	DFLV0260	Hose Assembly, #20 X 26.0" L.; (Option Type #'s 22 & 25)	3.7080	08		1				0
Details	DFLV0325	Hose Assembly, #20 X 32.5" L. L&V; (Option Type #17)	3.7080	08		1			$145.18	0
	AFHJ0325	Hose Assembly, #20 X 32.50 H&J	3.7080	08	A/R	A/R	A/R	A/R		0
Details	DFLV0485	Hose Assembly, #20 X 52.8" L&V; (Option Type #11)	3.7080	08		1			$274.16	0
	DFLV0560	Hose Assembly, #20 X 60.7" L.; (Option Type #25)	3.7080	08		1				0
Details	BGLV0438	Hose Assembly, #24 X 24.483" L.; (Option Type #'s 4 & 12)	3.7080	08	1		1		$359.66	0
Details	BGLV0202	Hose Assembly, #24 X 24.7" L.; (Option Type #"s 4 & 12)	3.7080	08	1		1		$290.42	0
	DGLV0200	Hose Assembly, #24 X 24.9"; (Rear); (Option Type #21)	3.7080	08	1		1			0
	DGLV0205	Hose Assembly, #24 X 25.0" L.; (Option Type #10)	3.7080	08	1		1			0
	DGLV0435	Hose Assembly, #24 X 48.4" L.; (Front); (Option Type #21)	3.7080	08	1		1			0
	DGLV0440	Hose Assembly, #24 X 48.5" L.; (Option Type #10)	3.7080	08	1		1			0
Details	23513574	Tube & Bracket Assembly, Water Outlet	3.7080	08	A/R	A/R	A/R	A/R	$493.31	0
Details	23513728	Tube & Bracket Assembly, Water Outlet, 2" Diameter X 56.12	3.7080	08	A/R	A/R	A/R	A/R	$404.87	0
Details	5148808	Tube & Elbow Assembly; (Option Type #'s 16 & 19)	3.7080	08	A/R	A/R	A/R	A/R	$651.68	1
Details	23513203	Tube Assembly; (Option Type #3)	3.7080	08	1		1		$196.60	0
Details	23513572	Tube Assembly, 9.78 Intercooler Outlet; (Option Type #'s 7, 33, 29)	3.7080	08	1		1		$206.11	0
Details	23514295	Tube Assembly, Intercooler Outlet	3.7080	08	A/R	A/R	A/R	A/R	$123.35	0
	23512211	Tube Assembly,Coolant Outlet; (Option Type #'s 20, 22, 24, 25) (OBSOLETE)	3.7080	08	1	1	1	1	OBSOLETE	0
Details	23513391	Tube Assembly; Center; (Option Type #2)	3.7080	08	1	1	1	1	$340.10	0
Details	23513392	Tube Assembly; Front; (Option Type #2)	3.7080	08	1	1	1	1	$393.18	0
Details	23513390	Tube Assembly; Rear; (Option Type #2)	3.7080	08	1	1	1	1	$248.87	0
Details	100158	Bolt, 1/2"-13 X 1" Superceded... Click 'Details' for replacement.	3.7080	00	A/R	A/R	A/R	A/R		18
Details	8921930	Bolt, 1/4"-20 X 0.75"; W/Seal Patch; (12.9001)	3.7080	00	A/R	A/R	A/R	A/R	$2.85	100+
Details	8927579	Bolt, 3/8"-16 X 0.88"; W/Seal Patch; (12.9001)	3.7080	00	A/R	A/R	A/R	A/R	$1.58	100+
Details	179839	Bolt, 3/8"-16 X 1"	3.7080	00	A/R	A/R	A/R	A/R	$0.69	15
	GROUP 3.7080 CONTINUED ON NEXT PAGE
