Series 149 Detroit Diesel Engines

OIL PRESSURE REGULATOR - groups: 4.1671 - 4.1730

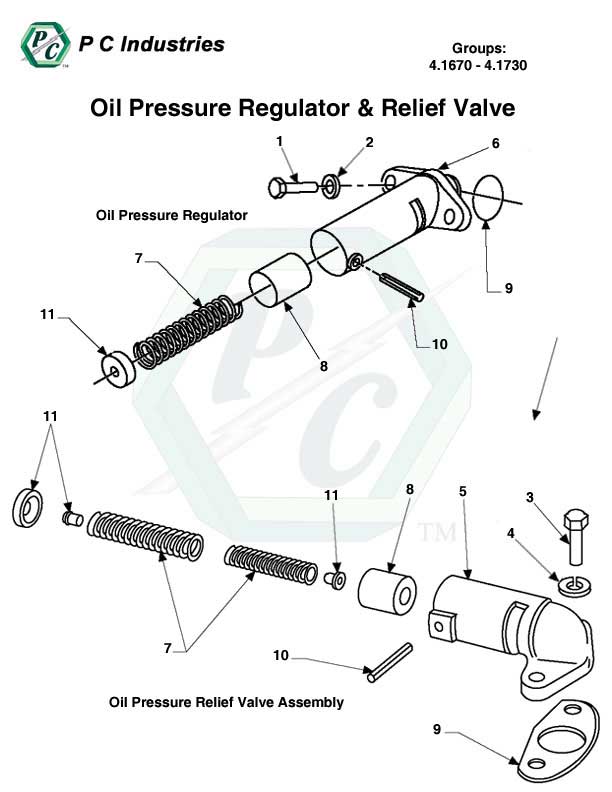

4.1670 - 4.1730 Oil Pressure Regulator And Relief Valve.jpg - Diagram
Page: 225
Part No. Description Group Ref#8V12V16V20V Price QOH
Details 8927560 Relief Valve Assembly; (Option Type #'s 30, 33, 36) 4.167100A/RA/RA/RA/R$241.620
Details 8922584 Body, Relief 4.167105A/RA/RA/RA/R$184.530
Details View Images 5126327 Spring, 2.96" Free Length; 15 Coils; Closed Ends 4.167107A/RA/RA/RA/R$1.9789
Details View Images 8922582 Spring; Inner 4.167107A/RA/RA/RA/R$22.541
Details View Images 8922583 Spring 4.167107A/RA/RA/RA/R$15.224
Details View Images 8922740 Valve 4.167108A/RA/RA/RA/R$9.5990
Details View Images 457008 Pin, 3/16" X 1-1/2" Spring; (12.9270) 4.167110A/RA/RA/RA/R$0.5426
Details View Images 5117957 Seat 4.167111A/RA/RA/RA/R$6.1920
Details View Images 8922581 Seat 4.167111A/RA/RA/RA/R$10.6312
Details View Images 8927579 Bolt, 3/8"-16 X 0.88"; W/Seal Patch; (12.9001) 4.167103A/RA/RA/RA/R$1.36422
Details View Images 179839 Bolt, 3/8"-16 X 1" 4.167103A/RA/RA/RA/R$0.6532
Details View Images 8927581 Bolt, 3/8"-16 X 1.135"; (12.9001) 4.167103A/RA/RA/RA/R$1.1248
Details View Images 103321 Lockwasher, 3/8" 4.167104A/RA/RA/RA/R$0.3248
Details View Images 103341 Washer, 3/8" 4.167104A/RA/RA/RA/R$0.3086
Details 8922584 Body, Relief; (Option Type #"s 27, 30, 33, 35, 36, 41) 4.1680051111$184.530
Details View Images 8926966 Body, Regulator; (Option Type #'s 17, 26, 27, 30, 35, 36, 41) 4.168006A/RA/RA/RA/R$120.160
Details View Images 5126327 Spring, 2.96" Free Length; 15 Coils; Closed Ends; (Option
Type #'s 17, 26, 27, 30, 33, 35, 36, 41)
4.169007A/RA/RA/RA/R$1.9789
Details View Images 8922582 Spring; Inner; (Option Type #"s 27, 35, 41) 4.1690071111$22.541
Details View Images 8922583 Spring; (Option Type #'s 27, 30, 33, 35, 36, 41) 4.1690071111$15.224
Details View Images 8922740 Valve; (Option Type #'s 17, 26, 27, 30, 33, 35, 36, 41) 4.170008A/RA/RA/RA/R$9.5990
Details View Images 457008 Pin, 3/16" X 1-1/2" Spring; (12.9270) 4.170110A/RA/RA/RA/R$0.5426
Details View Images 5117957 Seat; (Option Type #'s 17, 26, 27, 30, 33, 35, 36, 41) 4.170111A/RA/RA/RA/R$6.1920
Details View Images 8922581 Seat; (Option Type #'s 27, 35, 41) 4.1701112222$10.6312
Details View Images 5117269 Gasket; (Option Type #'s 17, 27, 30, 33, 35, 36, 41) 4.1730091111$1.0015
Details View Images 5140831 Seal Ring, 1.234" X 0.139" 4.173009A/RA/RA/RA/R$1.5815
CONTINUE TO NEXT PAGE FOR GROUP 4.2240
