Series 149 Detroit Diesel Engines

OIL COOLER - groups: 4.4060 - 4.4100

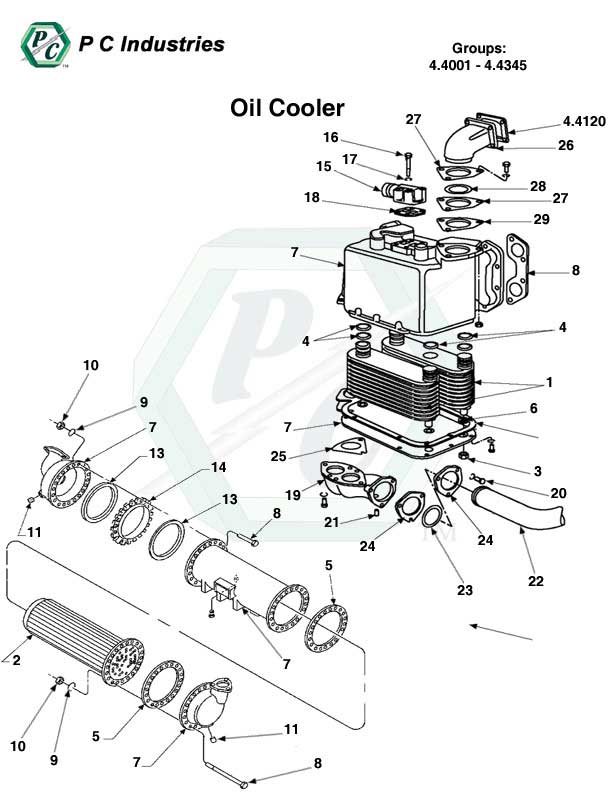

4.4001 - 4.4345 Oil Cooler.jpg - Diagram

Page: 235

Information Abbreviations Alphabetical Index Group Index

	Part No.	Description	Group	Ref#	8V	12V	16V	20V	Price	QOH
Details	454992	Bolt, 1/2"-13 X 2.5"; (12.9001)	4.4060	08	A/R	A/R	A/R	A/R	$11.70	93
Details	186656	Bolt, 1/2"-13 X 2.75"	4.4060	08	A/R	A/R	A/R	A/R	$4.01	6
	188413	Bolt, 1/2"-13 X 2.875" (OBSOLETE)	4.4060	08	A/R	A/R	A/R	A/R	OBSOLETE	0
Details	179893	Bolt, 1/2"-13 X 3"	4.4060	08	A/R	A/R	A/R	A/R	$1.98	10
Details	179895	Bolt, 1/2"-13 X 3.5"	4.4060	08	A/R	A/R	A/R	A/R	$2.51	28
Details	186625	Bolt, 5/16"-18 X 7/8"	4.4060	08	A/R	A/R	A/R	A/R	$1.00	90
Details	103323	Lockwasher, 1/2"	4.4060	09	A/R	A/R	A/R	A/R	$2.41	100+
Details	103320	Lockwasher, 5/16"	4.4060	09	A/R	A/R	A/R	A/R	$0.07	100+
Details	5132715	Washer, 0.53" X 0.94" X 0.12"; (1.3140)	4.4060	09	A/R	A/R	A/R	A/R	$6.61	42
Details	102637	Nut, 1/2"-13	4.4060	10	A/R	A/R	A/R	A/R	$0.76	100+
Details	103028	Nut, 1/2"-20	4.4060	10	A/R	A/R	A/R	A/R	$0.96	20
Details	218443	Nut, 3/4"-10	4.4060	10	A/R	A/R	A/R	A/R	$2.08	8
Details	8923916	Plug, 1/2" Pipe; (12.9550)	4.4060	11	A/R	A/R	A/R	A/R	$1.64	100+
Details	5115214	Plug, 1/2"-14 Pipe; (12.9550)	4.4060	11	A/R	A/R	A/R	A/R	$2.72	100+
Details	5121182	Plug, 1/4" Pipe; (2.4015)	4.4060	11	A/R	A/R	A/R	A/R	$8.64	100+
Details	5177070	Spacer, 17/32" X 1" X 1/4" Thick	4.4060	00	A/R	A/R	A/R	A/R	$6.79	0
	103244	Stud, 1/2"-13/20 X 3.25"; (Option Type #'s 1017, 1134, 1248, 1252) (OBSOLETE)	4.4060	00	1				OBSOLETE	0
Details	121458	Stud, 1/2"-13/20 X 3.25"; (Option Type #1098)	4.4060	00	1				$0.45	0
Details	5140648	Gasket	4.4061	12	A/R	A/R	A/R	A/R	$11.39	6
Details	5141223	Gasket	4.4061	12	A/R	A/R	A/R	A/R	$44.12	4
Details	8928907	Gasket, Housing To Core	4.4061	12	A/R	A/R	A/R	A/R	$138.43	30
Details	8928524	Seal Ring	4.4061	13	A/R	A/R	A/R	A/R	$391.35	11
Details	23502127	Weep Ring, Water Outlet; Tee Shaped	4.4061	14	A/R	A/R	A/R	A/R	$1,382.48	0
Details	5141990	Bracket; (Option Type #s 562, 622, 627)	4.4100	00	1	1	1	1	$324.00	0
Details	5143633	Bracket; (Option Type #'s 626, 665)	4.4100	00	1	1	1	1	$128.93	0
Details	23511646	Bracket; (Option Type #1275)	4.4100	00				1	$79.55	0
Details	23511877	Bracket; (Option Type #'s 1272, 1278, 1295, 1414, 1425, 1426)	4.4100	00	1	1	1	1	$337.59	0
Details	23513640	Bracket, Oil Cooler; (Option Type #1279)	4.4100	00				1	$104.82	0
Details	23513984	Bracket, Oil Cooler Support; (Option Type #1279)	4.4100	00				1	$818.11	0
Details	23511052	Bracket, Oil Cooler; Middle; (Option Type #1248, 1252)	4.4100	00	A/R				$130.86	0
Details	5141991	Bracket, Support; (Option Type #"s 562, 622, 626, 627, 665)	4.4100	00	A/R	A/R	A/R	A/R	$274.20	0
	GROUP 4.4100 CONTINUED ON NEXT PAGE
