Series 149 Detroit Diesel Engines

OIL COOLER - groups: 4.4190 - 4.4211

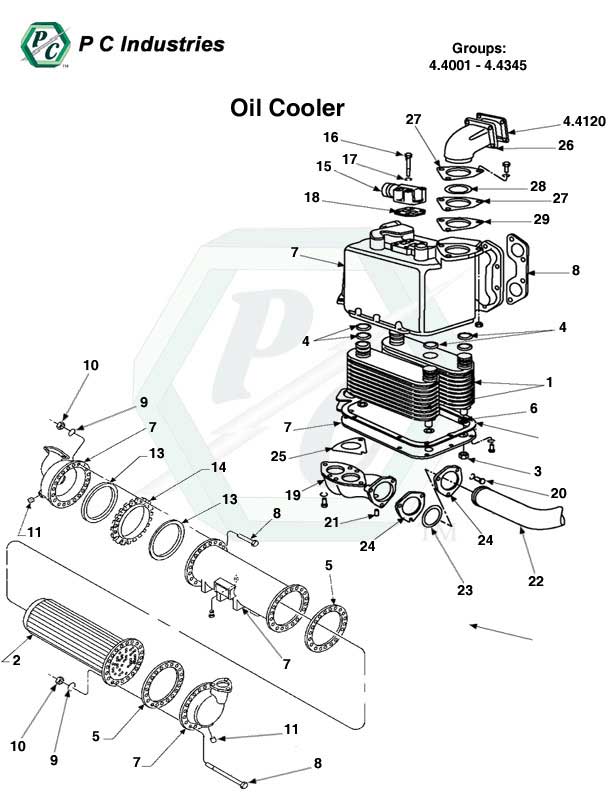

4.4001 - 4.4345 Oil Cooler.jpg - Diagram

Page: 241

Information Abbreviations Alphabetical Index Group Index

	Part No.	Description	Group	Ref#	8V	12V	16V	20V	Price	QOH
Details	5113863	Clip, 2.25" Tube	4.4190	00	A/R	A/R	A/R	A/R	$6.84	0
Details	8927580	Bolt 3/8"-16 X 1.015"; (12.9001)	4.4190	00	A/R	A/R	A/R	A/R	$4.37	44
Details	179893	Bolt, 1/2"-13 X 3"	4.4190	00	A/R	A/R	A/R	A/R	$1.89	10
	8927677	Bolt, 3/8"-16 X 0.755"; (12.9001) (OBSOLETE)	4.4190	00	A/R	A/R	A/R	A/R	OBSOLETE	0
Details	8927579	Bolt, 3/8"-16 X 0.88"; W/Seal Patch; (12.9001)	4.4190	00	A/R	A/R	A/R	A/R	$1.50	337
Details	8927581	Bolt, 3/8"-16 X 1.135"; (12.9001)	4.4190	00	A/R	A/R	A/R	A/R	$1.17	48
Details	103323	Lockwasher, 1/2"	4.4190	00	A/R	A/R	A/R	A/R	$0.18	244
Details	103321	Lockwasher, 3/8"	4.4190	00	A/R	A/R	A/R	A/R	$0.37	239
Details	102635	Nut, 3/8"-16	4.4190	00	A/R	A/R	A/R	A/R	$0.16	11
Details	23509170	Gasket, Inlet & Outlet	4.4200	00	A/R	A/R	A/R	A/R	$4.00	25
Details	23506470	Gasket, Outlet At Block	4.4200	00	A/R	A/R	A/R	A/R	$6.37	70
Details	8925358	Adaptor, Oil Cooler Inlet & By-Pass; (Option Type #'s 1030, 1111, 1134, 1142, 1157)	4.4203	00	1	1	1	1	$584.91	1
Details	8927582	Bolt, 3/8"-16 X 1.255"; (12.9001)	4.4203	00	A/R	A/R	A/R	A/R	$2.42	70
Details	186612	Bolt, 3/8"-16 X 1.375"	4.4203	00	A/R	A/R	A/R	A/R	$1.00	4
Details	103321	Lockwasher, 3/8"	4.4203	00	A/R	A/R	A/R	A/R	$0.37	239
Details	5139478	Elbow	4.4211	19	A/R	A/R	A/R	A/R	$503.15	15
	5140841	Elbow; (Option Type #543) (OBSOLETE)	4.4211	19		1			OBSOLETE	0
Details	8924930	Elbow	4.4211	19	A/R	A/R	A/R	A/R	$279.68	23
	23502744	Elbow; At Front Of Cooler; (Option Type #1142)	4.4211	19	1					0
Details	23503069	Elbow; At Front Of Cooler; (Option Type #'s 1157, 1163, 1214, 1247)	4.4211	19	1		1		$743.13	1
Details	23512376	Flange; (Option Type #1279)	4.4211	19				1	$212.04	0
Details	5145370	Flange, Seal	4.4211	19	A/R	A/R	A/R	A/R	$88.41	71
Details	8926334	Flange; Plate; At Oil Cooler Housing; (Option Type #'s 1017, 1098, 1134, 1248, 1252)	4.4211	19	1				$284.60	0
Details	179884	Bolt, 1/2"-13 X 1.375"	4.4211	20	A/R	A/R	A/R	A/R	$1.23	9
Details	8927581	Bolt, 3/8"-16 X 1.135"; (12.9001)	4.4211	20	A/R	A/R	A/R	A/R	$1.17	48
Details	186622	Bolt, 3/8"-16 X 1.25"	4.4211	20	A/R	A/R	A/R	A/R	$1.26	18
Details	186679	Bolt, 3/8"-16 X 1.25"	4.4211	20	A/R	A/R	A/R	A/R	$1.20	0
Details	186612	Bolt, 3/8"-16 X 1.375"	4.4211	20	A/R	A/R	A/R	A/R	$1.00	4
Details	8927583	Bolt, 3/8"-16 X 1.38"; (12.9001)	4.4211	20	A/R	A/R	A/R	A/R	$2.45	0
Details	186628	Bolt, 3/8"-16 X 1.5"	4.4211	20	A/R	A/R	A/R	A/R	$0.90	19
Details	179844	Bolt, 3/8"-16 X 1.625"	4.4211	20	A/R	A/R	A/R	A/R	$0.97	4
	GROUP 4.4211 CONTINUED ON NEXT PAGE
