Series 149 Detroit Diesel Engines

OIL PAN - groups: 4.7080 - 4.7165

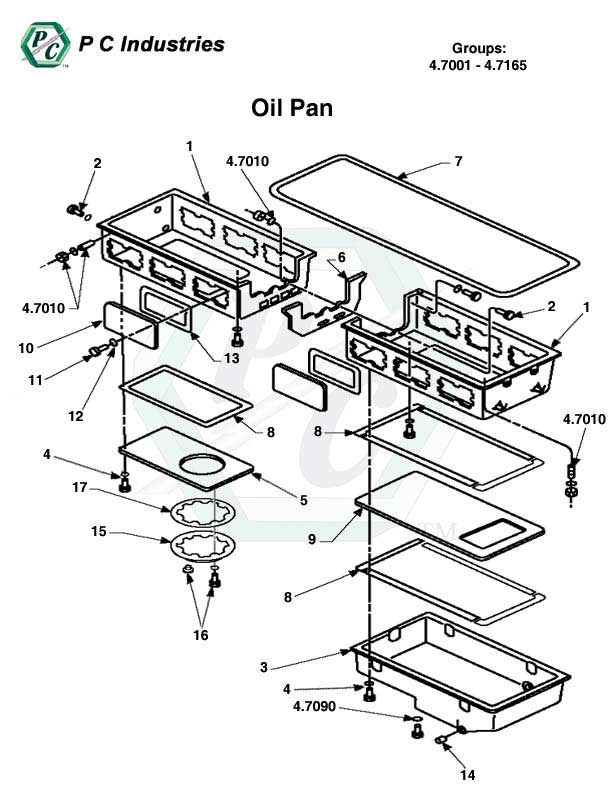

4.7100 - 4.7165 Oil Pan.jpg - Diagram
Page: 258
Part No. Description Group Ref#8V12V16V20V Price QOH
Details 103870 Plug, 1" Pipe 4.708014A/RA/RA/RA/R$1.560
Details 5103185 Plug, 1" Square Head; (12.9550) 4.708014A/RA/RA/RA/R$8.920
Details View Images 5115214 Plug, 1/2"-14 Pipe; (12.9550) 4.708014A/RA/RA/RA/R$1.221436
Details View Images 5142549 Plug, 3/4" Pipe, Square Socket; (12.9550) 4.708014A/RA/RA/RA/R$1.85500
Details View Images 5173022 Bracket, Clip, 90 4.709500A/RA/RA/RA/R$3.36113
Details CCHH0420 Hose Assembly, #10 X 45.02" L. 4.710000A/RA/RA/RA/R$102.630
Details View Images 8924163 Bushing, 3/4" X 1/2" Reducing; (12.9570) 4.710000A/RA/RA/RA/R$24.090
Details View Images 8925593 Connector, 5/8" Flared Tube, 1/2" NPTF; (12.9380) 4.710000A/RA/RA/RA/R$10.723
Details View Images 8925076 Elbow, 90 5/8" Tube 4.710000A/RA/RA/RA/R$12.530
23504519 Quick Disconnect Coupling; 560 4.710000A/RA/RA/RA/R0
Details 23504520 Quick Disconnect Coupling; 560 4.710000A/RA/RA/RA/R$14.970
444139 Tee, 1/2" Tube, 14" NPT (OBSOLETE) 4.710000A/RA/RA/RA/ROBSOLETE0
Details View Images 8927580 Bolt, 3/8"-16 X 7/8" 4.710100A/RA/RA/RA/R$4.3027
Details View Images 2488023 Clip, 0.938" Diameter, 3/8" 4.710100A/RA/RA/RA/R$4.330
Details View Images 103321 Lockwasher, 3/8" 4.710100A/RA/RA/RA/R$0.37207
Details View Images 102635 Nut, 3/8"-16 4.710100A/RA/RA/RA/R$0.1611
Details View Images 103341 Washer, 3/8" 4.710100A/RA/RA/RA/R$0.37182
Details View Images 186647 Bolt, 1/4"-20 X 1" 4.712000A/RA/RA/RA/R$0.6119
Details 5139860 Flange; (Option Type #'s 496, 837) 4.7120001111$127.390
Details View Images 5142549 Plug, 3/4" Pipe, Square Socket; (12.9550) 4.712000A/RA/RA/RA/R$1.85500
Details View Images 5194069 Washer, 1/4" Copper; (2.8050) 4.712000A/RA/RA/RA/R$0.6327
Details 5139862 Gasket; (Option Type #'s 496, 837) 4.7130001111$1.096
Details View Images 5148437 Bolt, 5/16"-18 X 1"; W/Lockwasher; (12.9001) 4.714016A/RA/RA/RA/R$8.2379
Details 8923916 Plug, 1/2" Pipe; (12.9550) 4.714000A/RA/RA/RA/R$0.6752
Details 5115157 Sump; (4.7001) 4.714015A/RA/RA/RA/R$414.224
Details View Images 5153986 Gasket; (4.7130) 4.715017A/RA/RA/RA/R$8.432
Details View Images 5144698 Shim, .003" 4.716500A/RA/RA/RA/R$3.453
Details View Images 5177606 Shim, .005" 4.716500A/RA/RA/RA/R$7.9625
Details View Images 5144697 Shim, .010" 4.716500A/RA/RA/RA/R$6.230
CONTINUE TO NEXT PAGE FOR GROUP 4.8013
