Series 149 Detroit Diesel Engines

FRESH WATER PUMP - group: 5.1001

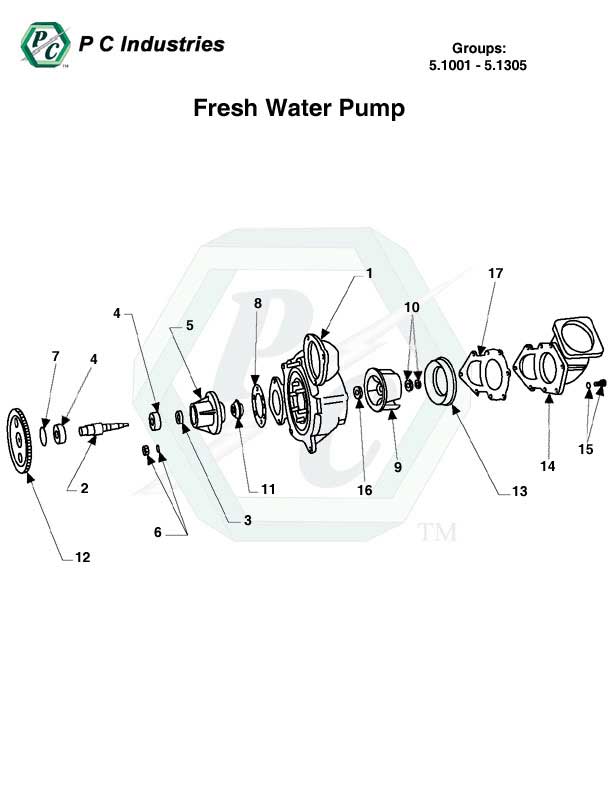

5.1001 - 5.1305 Fresh Water Pump.jpg - Diagram
Page: 271
Part No. Description Group Ref#8V12V16V20V Price QOH
Details 5141178 Water Pump; 16V; (Option Type #147)
Superceded... Click 'Details' for replacement.
5.100100A/R0
Details 8922210 Water Pump; Corrosion Resistant Shaft; 12V; (Option
Type #'s 140 & 231)
Superceded... Click 'Details' for replacement.
5.100100A/R0
Details 8922211 Water Pump; Corrosion Resistant Shaft; 16V; (Option
Type #'s 167, 211, 232)
Superceded... Click 'Details' for replacement.
5.100100A/R0
Details 8924949 Water Pump; R.H. Engine Rotation; 8V; (Option Type #243)
Superceded... Click 'Details' for replacement.
5.100100A/R0
Details 8922209 Water Pump; R.H. Engine Rotation; 16V; (Option Type #'s 147 & 189)
Superceded... Click 'Details' for replacement.
5.100100A/R0
Details View Images 23519134 Water Pump; 12V 5.100100A/R$3,648.410
Details View Images 23515909 Water Pump Assembly; Corrosion Resistant Shaft; 12V
Superceded... Click 'Details' for replacement.
5.100100A/R0
Details View Images 23515907 Housing Assembly, Water Pump Bearing 5.1001001$740.150
Details 5141096 Body Assembly 5.1001001$785.851
Details View Images 141236 Pin, 3/8" X 1/2" Dowel; (12.9290) 5.100100A/R$1.5237
Details View Images 112209 Stud, 3/8" X 1 15/16"; (12.9117) 5.100100A/R$19.955
Details View Images 5128641 Stud, 3/8"-16/24 X 1.5"; (1.7600) 5.100100A/R$2.4544
Details View Images 5142549 Plug, 3/4" Pipe, Square Socket; (12.9550) 5.1001001$1.85476
Details View Images 8923847 Plug, Pipe, 1/4-18" NPTF 5.1001001$0.95119
Details View Images 23515904 Shaft; (Marked "Hu" On End) 5.1001021$156.522
Details View Images 5117983 Seal 5.1001031$3.7071
Details 23503649 Bearing 5.1001041$15.48175
Details View Images 23503687 Bearing 5.1001041$10.12183
Details View Images 274746 Lockring; (5.4235) 5.1001071$2.5135
Details View Images 103321 Lockwasher, 3/8" 5.1001066$0.37120
Details View Images 5130851 Retainer 5.1001051$241.802
Details 5127922 Gasket, Bearing & Seal Retainer To Body 5.1001081$3.4127
Details View Images 221436 Washer, 7/16"; (12.9200) 5.1001101$0.68131
Details View Images 5117972 Nut, 7/16"-20 Lock; (5.1120) 5.1001101$3.71126
Details View Images 23522434 Seal
Superceded... Click 'Details' for replacement.
5.10011113
Details View Images 5138934 Gear, L.H. Helix 5.1001121$547.755
Details View Images 103026 Nut, 3/8"-24 5.1001061$0.421175
GROUP 5.1001 CONTINUED ON NEXT PAGE
