Series 149 Detroit Diesel Engines

FAN & FAN HUB - groups: 5.4017 - 5.4118

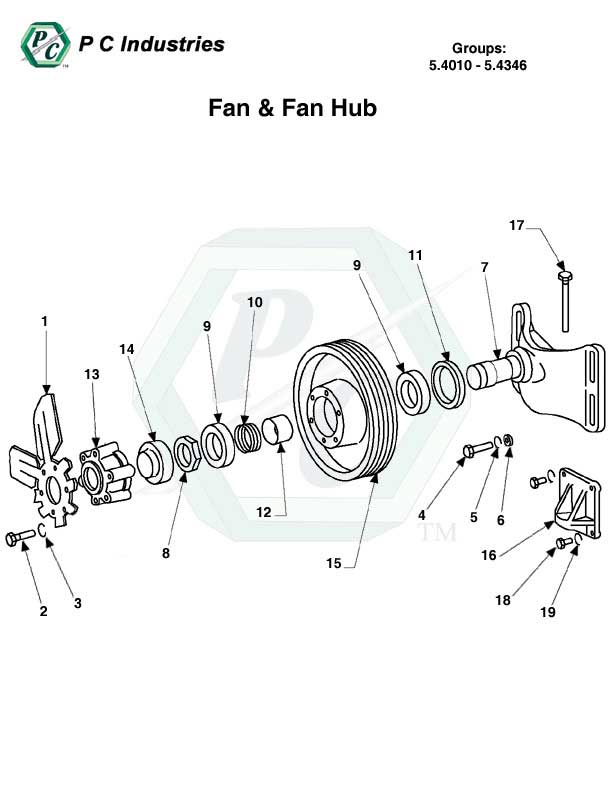

5.4010 - 5.4346 Fan And Fan Hub.jpg - Diagram

Page: 291

Information Abbreviations Alphabetical Index Group Index

	Part No.	Description	Group	Ref#	8V	12V	16V	20V	Price	QOH
Details	102635	Nut, 3/8"-16	5.4017	00	A/R	A/R	A/R	A/R	$0.18	9
Details	8923847	Plug, Pipe, 1/4-18" NPTF Superceded... Click 'Details' for replacement.	5.4017	00	A/R	A/R	A/R	A/R		100+
Details	132911	Screw, #10-32 X 5/8"	5.4017	00	A/R	A/R	A/R	A/R	$1.00	0
Details	5196119	Spacer, 13/32" I.D. X 7/8" O.D. X 0.38" Thick; (3.4001)	5.4017	00	A/R	A/R	A/R	A/R	$8.98	18
Details	5101020	Strap, Nylon; (2.5255)	5.4017	00	A/R	A/R	A/R	A/R	$0.44	0
Details	8924200	Tee, 1/4" X 7/16" X 7/16"	5.4017	00	A/R	A/R	A/R	A/R	$56.65	4
Details	8925721	Tee, 3/8"-18 Pipe; (12.9616)	5.4017	00	A/R	A/R	A/R	A/R	$9.81	2
Details	5147206	Tubing, Spiral Wrap	5.4017	00	A/R	A/R	A/R	A/R	$25.71	1
Details	5132715	Washer, 0.53" X 0.94" X 0.12"; (1.3140)	5.4017	00	A/R	A/R	A/R	A/R	$7.44	42
Details	120392	Washer, 1/4"	5.4017	00	A/R	A/R	A/R	A/R	$0.99	24
Details	103341	Washer, 3/8"	5.4017	00	A/R	A/R	A/R	A/R	$0.45	100+
	5139408	Bracket (OBSOLETE)	5.4090	07	A/R	A/R	A/R	A/R	OBSOLETE	0
Details	5141835	Bracket	5.4090	07	A/R	A/R	A/R	A/R	$1,926.67	0
Details	23512639	Support, Fan; (Option Type #1767)	5.4090	07	1	1	1	1	$1,801.23	0
Details	454992	Bolt, 1/2"-13 X 2.5"; (12.9001)	5.4090	00	A/R	A/R	A/R	A/R	$12.09	91
Details	8927580	Bolt, 3/8"-16 X 1.015"; (12.9001)	5.4090	00	A/R	A/R	A/R	A/R	$4.70	91
Details	450517	Bolt, 3/8"-16 X 4.75"; (12.9001)	5.4090	00	A/R	A/R	A/R	A/R	$5.54	60
Details	103323	Lockwasher, 1/2"	5.4090	00	A/R	A/R	A/R	A/R	$2.41	100+
Details	23515097	Spacer; (Option Type #1786)	5.4090	00	1	1	1	1	$55.90	0
Details	103341	Washer, 3/8"	5.4090	00	A/R	A/R	A/R	A/R	$0.45	100+
Details	23505679	Shaft & Bracket Assembly	5.4100	00	A/R	A/R	A/R	A/R	$3,187.78	0
Details	23505680	Fitting, Lube Orifice	5.4100	00	A/R	A/R	A/R	A/R	$27.22	0
Details	5141497	Nut	5.4105	08	A/R	A/R	A/R	A/R	$130.71	0
Details	443893	Bearing	5.4110	09	A/R	A/R	A/R	A/R	$97.11	2
	5141047	Shim, .015" (OBSOLETE)	5.4110	10	A/R	A/R	A/R	A/R	OBSOLETE	0
Details	5140983	Shim, .020"	5.4110	10	A/R	A/R	A/R	A/R	$12.39	7
Details	5140984	Shim, .025"	5.4110	10	A/R	A/R	A/R	A/R	$8.70	8
Details	23505686	Clutch	5.4114	00	A/R	A/R	A/R	A/R	$859.40	0
Details	23505685	Piston	5.4117	00	A/R	A/R	A/R	A/R	$655.75	0
Details	23505678	Kit, Overhaul	5.4118	00	A/R	A/R	A/R	A/R	$2,608.18	0
