Series 149 Detroit Diesel Engines

SHUT-OFF & ALARM SYSTEM - groups: 7.4545 - 7.4586

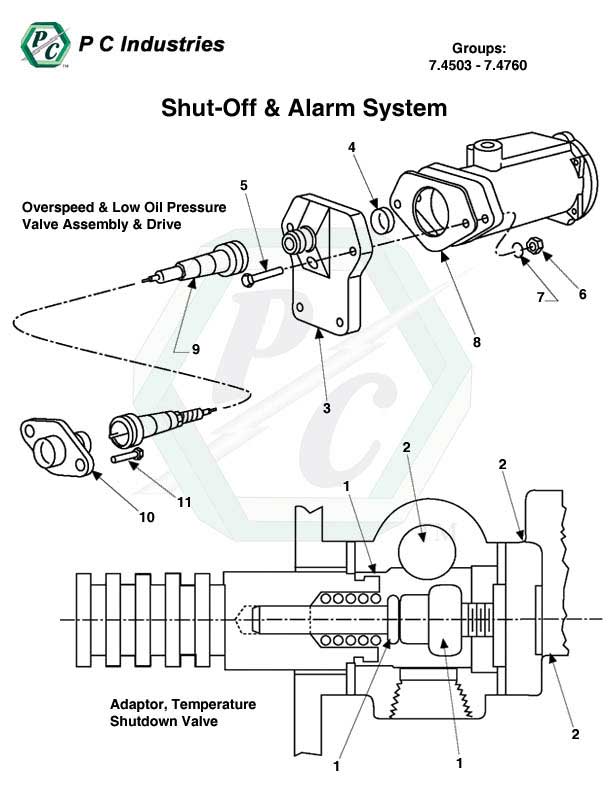

7.4503 - 7.4760 Shut-Off And Alarm System.jpg - Diagram
Page: 331
Part No. Description Group Ref#8V12V16V20V Price QOH
Details View Images 5101020 Strap, Nylon; (2.5255) 7.454500A/RA/RA/RA/R$0.710
Details View Images 120392 Washer, 1/4" 7.454500A/RA/RA/RA/R$0.9134
Details View Images 103341 Washer, 3/8" 7.454500A/RA/RA/RA/R$0.40182
Details 5183175 Box Assembly, Junction; (7.2340) 7.454700A/RA/RA/RA/R$829.520
Details 5146065 Plate, Junction Box Mounting; (7.4547) 7.454700A/RA/RA/RA/R$75.490
Details View Images 179884 Bolt, 1/2"-13 X 1.375" 7.454700A/RA/RA/RA/R$1.239
Details View Images 454894 Bolt, 1/4"-20 X 3/4" Cad. Plated; (12.9001) 7.454700A/RA/RA/RA/R$1.76126
Details 427564 Bolt, 7/16"-14 X 1.375"; (12.9001) 7.454700A/RA/RA/RA/R$1.9144
Details View Images 103323 Lockwasher, 1/2" 7.454700A/RA/RA/RA/R$0.18244
Details View Images 103319 Lockwasher, 1/4" 7.454700A/RA/RA/RA/R$0.40144
Details View Images 103322 Lockwasher, 7/16" 7.454700A/RA/RA/RA/R$0.37110
Details View Images 120375 Nut, 1/4"-20 7.454700A/RA/RA/RA/R$1.238
Details 5115323 Spacer 7.454700A/RA/RA/RA/R$20.240
Details 5157783 Spacer, 19/64" X 17/32" X 9/32"; (2.9357) 7.454700A/RA/RA/RA/R$7.370
Details View Images 103343 Washer, 1/2" 7.454700A/RA/RA/RA/R$0.3125
Details View Images 103342 Washer, 7/16" 7.454700A/RA/RA/RA/R$0.18325
Details 23520023 Switch, Fuel & Oil Pressure 7.458600A/RA/RA/RA/R$46.8249
Details 23520025 Switch, Fuel & Oil Pressure 7.458600A/RA/RA/RA/R$39.0156
Details View Images 23520026 Switch, Fuel & Oil Pressure 7.458600A/RA/RA/RA/R$33.3810
Details 23520023 Switch, Fuel & Oil Pressure Spdt. 7.458600A/RA/RA/RA/R$46.8249
Details View Images 5102912 Switch; 35# Break 7.458600A/RA/RA/RA/R$52.742
Details 5120375 Adaptor, 1/4" X 1/8" Pipe; (12.9575) 7.458600A/RA/RA/RA/R$4.630
Details View Images 8924142 Bushing, 1/4" X 1/8" Reducing; (12.9570) 7.458600A/RA/RA/RA/R$4.970
Details View Images 8925726 Elbow, 45 1/8" Street; (12.9590) 7.458600A/RA/RA/RA/R$8.260
Details View Images 8924213 Elbow, 90 1/8" Street; (12.9590) 7.458600A/RA/RA/RA/R$3.795
Details 8924380 Plug, 1/8"-27 Pipe; W/Seal; (12.9550) 7.458600A/RA/RA/RA/R$1.143816
Details 8925003 Tee 90 1/8" Npt. 7.458600A/RA/RA/RA/R$11.320
Details View Images 8924214 Tee, 1/8"-27 Pipe; (7.4586) 7.458600A/RA/RA/RA/R$6.187
Details View Images 8924214 Tee, 1/8"-27 Pipe; (7.4586) 7.458600A/RA/RA/RA/R$6.187
CONTINUE TO NEXT PAGE FOR GROUP 7.4587
