Series 149 Detroit Diesel Engines

SHUT-OFF & ALARM SYSTEM - group: 7.4591

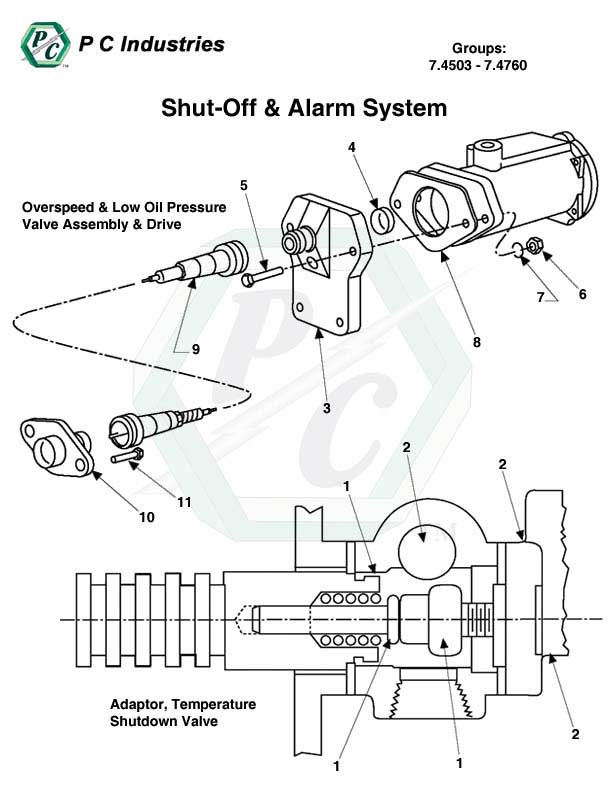

7.4503 - 7.4760 Shut-Off And Alarm System.jpg - Diagram
Page: 333
Part No. Description Group Ref#8V12V16V20V Price QOH
Details 5147986 Valve Assembly (OBSOLETE) 7.459100A/RA/RA/RA/ROBSOLETE2
Details 5135168 Shaft, 1.46" L. 7.4591001111$118.390
Details 5135212 Valve 7.4591001111$46.000
Details 5135179 Shaft & Weight Assembly 7.4591001111$340.710
Details 5135384 Weight 7.4591002222$507.100
9411622 Pin Rolled (OBSOLETE) 7.4591002222OBSOLETE0
Details 5135376 Spring 7.4591001111$27.010
Details View Images 109371 Screw, #0 X 3/16" Round Head, Drive 7.4591002222$2.1812
Details 5135395 Plate, Name 7.4591001111$10.910
Details 5136509 Housing 7.4591001111$760.830
Details View Images 120217 Lockwasher, #10 7.4591004444$1.2248
Details 436574 Screw, #10-24 X 1"; (12.9025) 7.4591004444$0.930
Details 5142627 Cover 7.4591001111$207.740
Details View Images 5179709 Washer, 1/4" Copper; (2.7175) 7.4591001111$1.66100+
Details View Images 9419454 Nut, 1/4"-20; (12.9120) 7.4591004444$1.350
Details View Images 106496 Lockwasher, #8 7.4591001111$0.53100+
Details View Images 120392 Washer, 1/4" 7.4591002222$0.9734
Details 5135171 Pilot, Spring 7.4591001111$128.530
Details View Images 5150941 Washer, 21/64"; (2.7310) 7.4591001111$1.1266
Details 9421616 Bolt, #8-32 X 5/8"; (12.9027) 7.4591001111$1.740
Details 5135172 Diaphram 7.4591001111$44.240
Details 5135273 Washer 7.4591001111$17.190
Details 5142665 Guide Assembly 7.4591001111$124.780
Details 5100712 Shim, .028"-.038" Thick 7.459100ARARARAR$9.810
Details 5147479 Spring 7.4591001111$28.260
Details View Images 5149396 Bearing, Thrust 7.4591001111$56.071
GROUP 7.4591 CONTINUED ON NEXT PAGE
