Series 149 Detroit Diesel Engines

FUEL SYSTEM - groups: 2.4020 - 2.5006

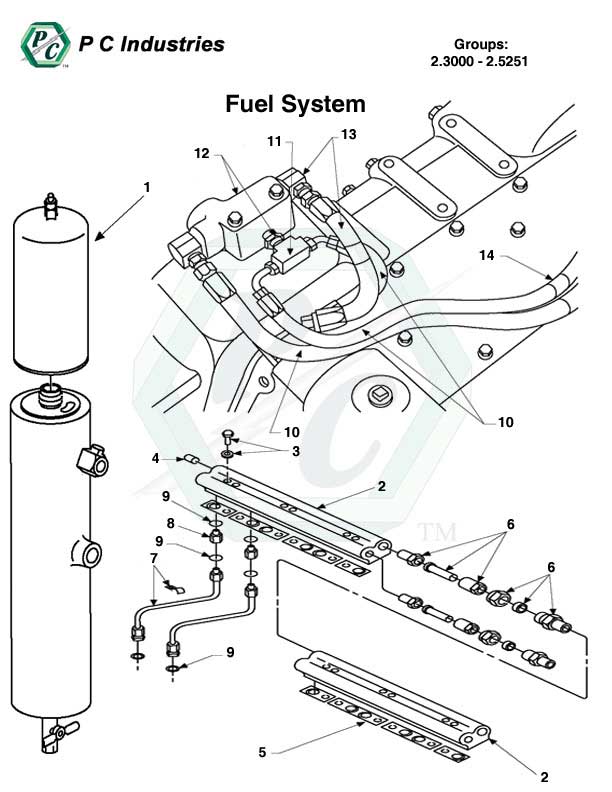

2.3000 - 2.5251 Fuel System.jpg - Diagram

Page: 79

Information Abbreviations Alphabetical Index Group Index

	Part No.	Description	Group	Ref#	8V	12V	16V	20V	Price	QOH
Details	23511770	Tube Assembly, Fuel Return	2.4020	07	A/R	A/R	A/R	A/R	$12.50	100+
Details	23504381	Tube Assembly, Fuel Return; 10.5; 6L. M	2.4020	07	A/R	A/R	A/R	A/R	$114.07	32
Details	23511771	Tube Assembly, Fuel Supply	2.4020	07	A/R	A/R	A/R	A/R	$12.15	100+
Details	23504382	Tube Assembly, Fuel Supply; 10.72 Mui	2.4020	07	A/R	A/R	A/R	A/R	$118.04	32
Details	23519210	Tube Assembly, Inlet	2.4020	07	A/R	A/R	A/R	A/R	$60.09	53
Details	23519209	Tube Assembly, Outlet	2.4020	07	A/R	A/R	A/R	A/R	$59.78	77
Details	179816	Bolt, 5/16"-18 X 0.75"	2.4020	07	A/R	A/R	A/R	A/R	$0.55	13
Details	23506225	Clip, 1/4" Tube X 5/16" Bolt	2.4020	07	A/R	A/R	A/R	A/R	$0.99	70
Details	5141617	Clip,1/4" Tube X 5/16" Bolt	2.4020	07	A/R	A/R	A/R	A/R	$5.39	20
Details	103320	Lockwasher, 5/16"	2.4020	07	A/R	A/R	A/R	A/R	$0.07	100+
Details	120393	Washer, 5/16"	2.4020	07	A/R	A/R	A/R	A/R	$0.50	100+
Details	5141485	Connector	2.4030	08	A/R	A/R	A/R	A/R	$33.26	38
Details	23518665	Connector	2.4030	08	A/R	A/R	A/R	A/R	$19.92	88
Details	23506178	Connector, Service Conversion	2.4030	08	A/R	A/R	A/R	A/R	$23.80	1
Details	23504352	Seal Ring, 0.301 "I.D. X 0.070"	2.4030	00	A/R	A/R	A/R	A/R	$2.09	100+
Details	23504350	Seal Ring, 0.414" I.D. X 0.072"	2.4030	00	A/R	A/R	A/R	A/R	$2.59	100+
Details	5161003	Gasket	2.4050	09	A/R	A/R	A/R	A/R	$1.26	100+
Details	5148007	Check Valve; (To Junction Block)	2.5006	00	A/R	A/R	A/R	A/R	$183.01	2
Details	5142611	Check Valve; 15/16" -20; (Option Type #1038) Superceded... Click 'Details' for replacement. Replaced by 6 items.	2.5006	00	1	1	1	1		0
Details	8925074	Elbow, 3/4"-90� Flared Tube, 1/2" Pipe; (12.9390)	2.5006	00	A/R	A/R	A/R	A/R	$16.78	1
	5142235	Gasket, Valve; (Option Type #1038) (OBSOLETE)	2.5006	00	1	1	1	1	OBSOLETE	0
Details	5115214	Plug, 1/2"-14 Pipe; (12.9550)	2.5006	00	A/R	A/R	A/R	A/R	$2.72	100+
Details	23512581	Plug, Check Valve; 0.1520"Restriction	2.5006	00	A/R	A/R	A/R	A/R	$69.38	0
Details	23516319	Plug, Fuel Press Relief	2.5006	00	A/R	A/R	A/R	A/R	$59.53	0
Details	23512580	Plug, Oil Press Relief	2.5006	00	A/R	A/R	A/R	A/R	$79.39	1
Details	23519010	Regulator, Fuel Pressure; 0.040" Orifice	2.5006	00	A/R	A/R	A/R	A/R	$291.97	3
Details	5104978	Seal Ring, 1.102" X 1.138"; (3.5001)	2.5006	00	A/R	A/R	A/R	A/R	$3.10	31
Details	6525285	Seal Ring, Valve	2.5006	00	A/R	A/R	A/R	A/R	$34.55	6
Details	5101020	Strap, Nylon; (2.5255)	2.5006	00	A/R	A/R	A/R	A/R	$0.40	0
Details	8929772	Tee, 2-Way 5/16" Tube; (Brass); (12.9490)	2.5006	00	A/R	A/R	A/R	A/R	$16.11	5
Details	8925724	Tee, 5/16" Tube	2.5006	00	A/R	A/R	A/R	A/R	$6.13	0
Details	5137201	Washer, Plug, 1.09 X 1.38 X 0.032 Copper; (12.6817)	2.5006	00	A/R	A/R	A/R	A/R	$5.62	23
	CONTINUE TO NEXT PAGE FOR GROUP 2.5050
