Series 149 Detroit Diesel Engines

FUEL SYSTEM - group: 2.5165

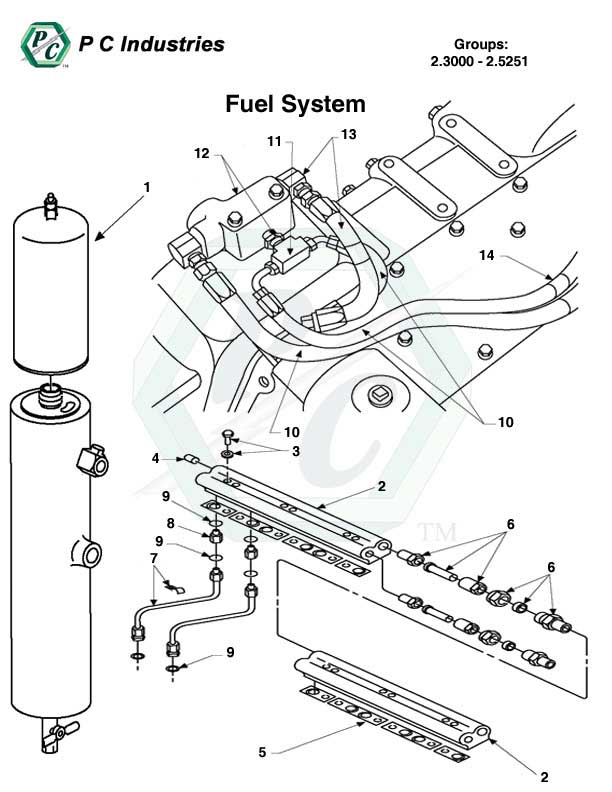

2.3000 - 2.5251 Fuel System.jpg - Diagram

Page: 82

Information Abbreviations Alphabetical Index Group Index

	Part No.	Description	Group	Ref#	8V	12V	16V	20V	Price	QOH
	23509936	Hose Assembly, #12 X 12.32" L. (OBSOLETE)	2.5165	13	A/R	A/R	A/R	A/R	OBSOLETE	0
Details	CKAA0110	Hose Assembly, #5 X 14.64" L.	2.5165	13	A/R	A/R	A/R	A/R	$74.51	0
Details	CKAC0225	Hose Assembly, #5 X 26.05" L.	2.5165	13	A/R	A/R	A/R	A/R	$80.91	0
	CAAC1160	Hose Assembly, #6 X 119.64" L.	2.5165	13	A/R	A/R	A/R	A/R		0
	WAHK0141	Hose Assembly, #6 X 16.50; H&K Wrap	2.5165	13	A/R	A/R	A/R	A/R		0
Details	CAHK0141	Hose Assembly, #6 X 16.54" L.	2.5165	13	A/R	A/R	A/R	A/R	$41.45	0
	CAAC0135	Hose Assembly, #6 X 17.05" L.	2.5165	13	A/R	A/R	A/R	A/R		0
Details	CAHH0171	Hose Assembly, #6 X 19.42 L.	2.5165	13	A/R	A/R	A/R	A/R	$50.35	0
	23509935	Hose Assembly, #6 X 19.42" L. (OBSOLETE)	2.5165	13	A/R	A/R	A/R	A/R	OBSOLETE	0
	CAAC0185	Hose Assembly, #6 X 22.05" L.	2.5165	13	A/R	A/R	A/R	A/R		0
	CAAA0540	Hose Assembly, #6 X 57.64" L.	2.5165	13	A/R	A/R	A/R	A/R		0
Details	5142921	Hose Assembly, #8 X 10 1/4"; R.B.	2.5165	13	A/R	A/R	A/R	A/R	$112.18	10
	CBAF1150	Hose Assembly, #8 X 118.94" L.	2.5165	13	A/R	A/R	A/R	A/R		0
Details	5103810	Hose Assembly, #8 X 12"; Teflon; R.B.	2.5165	13	A/R	A/R	A/R	A/R	$72.11	0
Details	CELM0120	Hose Assembly, #8 X 12.75"; R.B.	2.5165	13	A/R	A/R	A/R	A/R	$118.65	0
	CBAC0090	Hose Assembly, #8 X 12.9" L.	2.5165	13	A/R	A/R	A/R	A/R		0
	CBHP0102	Hose Assembly, #8 X 13.2" L.	2.5165	13	A/R	A/R	A/R	A/R		0
	WBHP0102	Hose Assembly, #8 X 13.2; H&P Wrap	2.5165	13	A/R	A/R	A/R	A/R		0
	23509931	Hose Assembly, #8 X 13.23" L. (OBSOLETE)	2.5165	13	A/R	A/R	A/R	A/R	OBSOLETE	0
	23509930	Hose Assembly, #8 X 13.98" L. (OBSOLETE)	2.5165	13	A/R	A/R	A/R	A/R	OBSOLETE	0
	CBHP0110	Hose Assembly, #8 X 14" L.	2.5165	13	A/R	A/R	A/R	A/R		0
	CBHH0120	Hose Assembly, #8 X 14.8"; H&H	2.5165	13	A/R	A/R	A/R	A/R		0
	CBHP0130	Hose Assembly, #8 X 15.0" L.	2.5165	13	A/R	A/R	A/R	A/R		0
	23511034	Hose Assembly, #8 X 15.24" (OBSOLETE)	2.5165	13	A/R	A/R	A/R	A/R	OBSOLETE	0
Details	CBAA0150	Hose Assembly, #8 X 19.10" L.	2.5165	13	A/R	A/R	A/R	A/R	$17.43	0
	CBDE0150	Hose Assembly, #8 X 19.72" L.	2.5165	13	A/R	A/R	A/R	A/R		0
	CBEE0170	Hose Assembly, #8 X 20.64" L.	2.5165	13	A/R	A/R	A/R	A/R		0
	CBAF0190	Hose Assembly, #8 X 22.94" L.	2.5165	13	A/R	A/R	A/R	A/R		0
	WBHP0202	Hose Assembly, #8 X 23.2; H&P Wrap	2.5165	13	A/R	A/R	A/R	A/R		0
	23509933	Hose Assembly, #8 X 23.23" L. (OBSOLETE)	2.5165	13	A/R	A/R	A/R	A/R	OBSOLETE	0
	CBHH0215	Hose Assembly, #8 X 24.3" L. (OBSOLETE)	2.5165	13	A/R	A/R	A/R	A/R	OBSOLETE	0
	5103809	Hose Assembly, #8 X 25"; Teflon; L.B. (OBSOLETE)	2.5165	13	A/R	A/R	A/R	A/R	OBSOLETE	0
	CBAF0230	Hose Assembly, #8 X 26.94" L.	2.5165	13	A/R	A/R	A/R	A/R		0
Details	CBHP0247	Hose Assembly, #8 X 27.7" L.	2.5165	13	A/R	A/R	A/R	A/R	$83.25	0
	GROUP 2.5165 CONTINUED ON NEXT PAGE
