Series 53 Detroit Diesel Engines

CRANKSHAFT - groups: 1.3001 - 1.3090

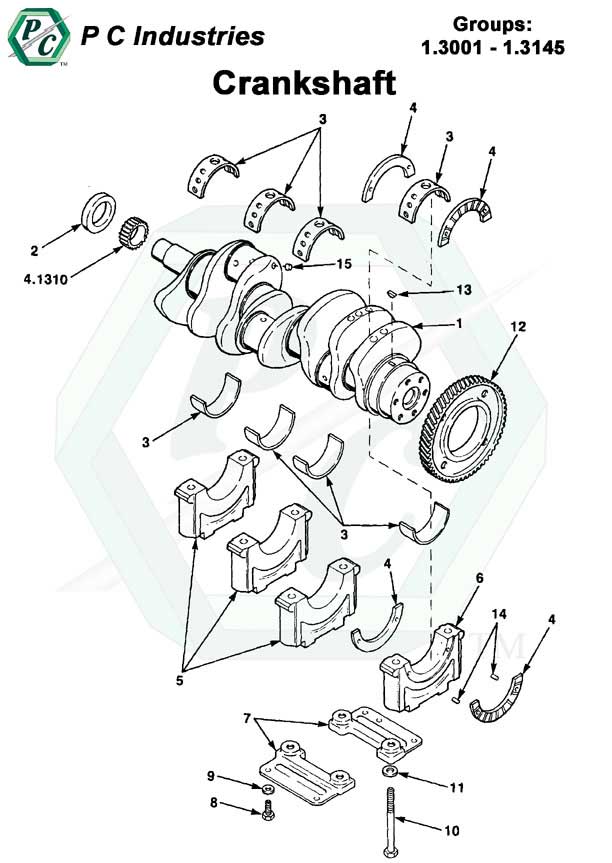

53_crankshaft_pg6-7.jpg - Diagram
Page: 6
Part No. Description Group Ref#2IL3IL4IL6V53 Price QOH
Note: Crankshaft Assemblies Contain Plugs In Group 1.3001.
Details 5116446 Crankshaft Assy., (2-53) 1.3001001$3,122.510
Details 8926898 Crankshaft Assy., (4-53T) 1.3001001$3,287.200
Details 5143305 Crankshaft Assy., (4-53T) (Splined) 1.3001001$2,694.130
Details 8926897 Crankshaft Assy., (3-53T) 1.3001011$3,441.921
Details 23504732 Crankshaft Assy., (6V-53)
Superceded... Click 'Details' for replacement.
1.30010010
Details 5144617 Crankshaft Assy., (6V-53) (Splined) 1.3001001$6,799.190
Details View Images 8924380 Plug, 1/8" Pipe (12.9550) 1.3001152343$1.08910
Details View Images 5115454 Seal, Crankshaft Oil (Front) (8V-53)
Superceded... Click 'Details' for replacement.
Replaced by 2 items.
1.30400217
Details View Images 5116224 Seal, Crankshaft Oil (Front) 1.3040021111$9.6821
Details View Images 5138796 Seal, Crankshaft Oil (Front) 1.3040021$29.723
View Images 5148314 Seal, Crankshaft Oil (Front) (W/Excluder Lip) (OBSOLETE) 1.30400211OBSOLETE2
Details View Images 5198503 Seal, Crankshaft Oil (Front) (Single Lip; O.S.)
(Use W/5198502 Sleeve)
1.3040021111$10.0022
Details View Images 5136567 Spacer, Crankshaft Front Oil Seal (1.62") (8V-53 Only) 1.305500$156.371
Details View Images 5138786 Spacer, Crankshaft Front Oil Seal
(Option Type # 40, 43, 44 Industrial Units)
1.3055001$64.501
Details View Images 5180291 Retainer, Crankshaft Front Oil Seal Spacer (1.3290)
(Option Type # 40, 43, 44 Industrial Units)
1.3055001$10.6831
Details View Images 271632 Bolt, 3/4"-16 X 1 3/4" (12.9001)
(Option Type # 40, 43, 44 Industrial Units)
1.3055001$3.869
Details View Images 5198502 Sleeve, Crankshaft Front Oil Seal Spacer (Use W/5198503 Seal) 1.3056001111$8.12674
Details View Images 5138945 Sleeve, Crankshaft Front Oil Seal Spacer 1.3056001$41.731
Details View Images 5114335 Seal, Crankshaft Oil (Rear) (Single Lip) (8V-53 Only)
Superceded... Click 'Details' for replacement.
1.30600013
Details View Images 5116229 Seal, Crankshaft Oil (Rear) (Left Hand Rotation Engine) 1.3060001111$12.049
View Images 5127821 Seal, Crankshaft Oil (Rear) (Double Lip) (Standard) (8V-53 Only) (OBSOLETE) 1.306000OBSOLETE2
Details View Images 5199477 Seal, Crankshaft Oil (Rear) (Double Lip, O.S.)
(Use W/5196851 Sleeve)
1.306000A/RA/RA/RA/R$89.272
Details View Images 5128917 Seal, Crankshaft Oil (Rear) (Double Lip)
(Use W/Oil In Flywheel Housings Only)
1.3060001111$64.852
Details View Images 5196852 Seal, Crankshaft Oil (Rear) (Single Lip; O.S.)
(Use W/5196851 Sleeve)
1.306000A/RA/RA/RA/R$16.7927
Details View Images 5197860 Seal, Crankshaft Oil (Rear) (Single Lip; O.S.)
(Use W/5198908 Sleeve) (8V-53 Only)
Superceded... Click 'Details' for replacement.
Replaced by 2 items.
1.3060007
Details View Images 8926902 Seal & Sleeve Kit, Crankshaft (Rear)
(R.H. Rot. Units Only) (Teflon)
1.306000A/R$20.465
Details View Images 5192496 Spacer, Crankshaft Rear Oil Seal (Use Only W/Single Lip Seal)
(8V-53 Only)
1.306500$5.206
Details View Images 23516636 Sleeve, Rear Oil Seal (Use W/O.S. Oil Seal) 1.306600A/RA/RA/RA/R$30.9230
Details View Images 5198908 Sleeve, Rear Oil Seal (Use W/O.S. Oil Seal) (8V-53 Only) 1.306600$67.123
Details View Images 5149447 Shell Set, Crankshaft Main Bearing (Inline, Turbo) (Std.) 1.30900345$17.7020
Details View Images 5149448 Shell Set, Crankshaft Main Bearing (Inline, Turbo) (.002" U.S.) 1.309003A/RA/R$16.075
Details View Images 5149449 Shell Set, Crankshaft Main Bearing (Inline, Turbo) (.010" U.S.) 1.309003A/RA/R$26.5213
Details View Images 5149450 Shell Set, Crankshaft Main Bearing (Inline, Turbo) (.020" U.S.) 1.309003A/RA/R$17.176
Details View Images 5149451 Shell Set, Crankshaft Main Bearing (Inline, Turbo) (.030" U.S.) 1.309003A/RA/R$18.140
GROUP 1.3090 CONTINUED ON NEXT PAGE
