Series 53 Detroit Diesel Engines

THROTTLE CONTROLS - groups: 2.9360 - 2.9390

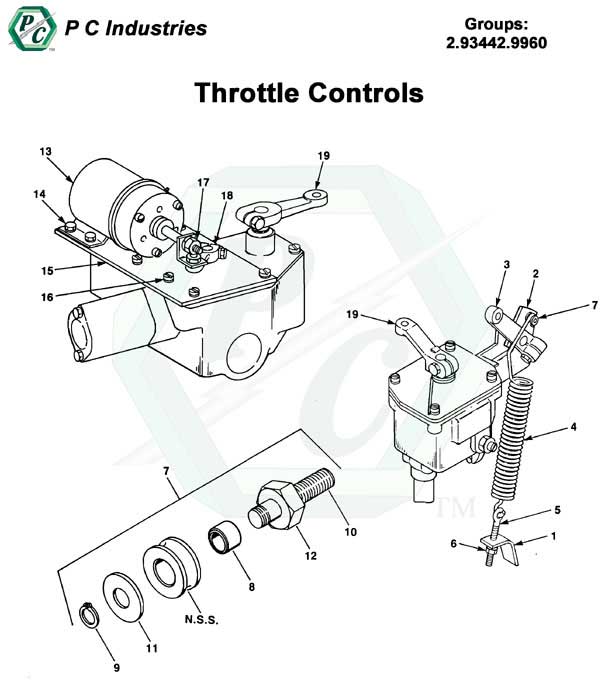

53_throttle_controls_pg84-89.jpg - Diagram
Page: 86
Part No. Description Group Ref#2IL3IL4IL6V53 Price QOH
Details View Images 5124614 Rod Assy., Throttle Control (Rear of Engine To Governor) 2.93600011$66.553
5128417 Rod Assy., Throttle Control (Rear of Engine To Governor) (OBSOLETE) 2.936000111OBSOLETE0
5129616 Rod Assy., Throttle Control (Rear of Engine To Governor)
(Accelerator Linkage) (OBSOLETE)
2.9360001OBSOLETE0
Details 5124942 Rod Assy., Throttle Control (Rear of Engine To Governor) 2.936000111$93.080
Details 5124941 Rod Assy., Throttle Control (Rear of Engine To Governor) 2.936000111$24.370
5124940 Rod Assy., Throttle Control (Rear of Engine To Governor) (OBSOLETE) 2.936000111OBSOLETE0
5125060 Rod, Throttle Control (Rear of Engine To Governor) (OBSOLETE) 2.936000111OBSOLETE0
5109536 Rod, Throttle Control (Rear of Engine To Governor)
(Cross Shaft To Governor) (OBSOLETE)
2.9360001OBSOLETE0
5109537 Rod, Throttle Control (Rear of Engine To Governor)
(Cross Shaft To Accelerator) (OBSOLETE)
2.9360001OBSOLETE0
Details View Images 3224744 Link, Throttle Control (Rear of Engine To Governor) (2.9400) 2.936000111$76.821
Details View Images 5118951 Joint, 5/16" Ball (12.9680) 2.936000222$13.572
Details View Images 5147345 Pin, Clevis (12.9260) 2.936000222$0.6464
Details View Images 103361 Pin, Cotter (12.9250) 2.936000222$1.66100+
Details View Images 103320 Lockwasher, 5/16" (12.9200) 2.936000222$0.07100+
Details View Images 114493 Locknut, 5/16"-24 (2.7170) 2.936000222$1.8035
Details View Images 5107147 Lever, Governor Control Shaft (Rear of Engine) 2.93610011$78.391
Details View Images 186647 Bolt, 1/4"-20 X 1" (12.9001) 2.93610011$0.6618
Details View Images 120380 Lockwasher, 1/4" (12.9200) 2.93610011$0.6755
Details View Images 5147640 Lever, Governor Control Shaft (3.3110) 2.939019111$44.883
Details View Images 5151519 Lever, Governor Control Shaft (2.7170) 2.9390191111$73.6519
Details View Images 5173081 Lever, Governor Control Shaft (2.9410) 2.939019111$239.008
Details 5124504 Lever, Governor Control Shaft (2.7170) 2.93901911$54.520
Details 5183802 Lever, Governor Control Shaft (2.7170) 2.9390191$139.990
Details 5138526 Lever, Governor Control Shaft (2.7170) 2.9390191$81.320
Details View Images 23504408 Lever, Governor Control Shaft (2.9345) 2.9390191$78.631
Details View Images 3222760 Lever, Governor Control Shaft 2.939019111$64.3313
Details View Images 5151519 Lever, Governor Control Shaft (2.7170) 2.9390191$73.6519
5162848 Bracket, Governor Control Shaft Lever (OBSOLETE) 2.9390001OBSOLETE0
Details View Images 454813 Bolt, 1/4"-20 X 7/8" (12.9001) 2.939000111$2.521
Details View Images 179796 Bolt, 1/4"-20 X 7/8" (12.9001) 2.9390001112$0.301
Details View Images 106276 Bolt, 1/4"-28 X 1 1/8" (12.9001) 2.939000111$1.5339
Details View Images 120380 Lockwasher, 1/4" (12.9200) 2.939000111$0.6755
Details View Images 103319 Lockwasher, 1/4" (12.9200) 2.9390001112$0.39100+
Details View Images 120367 Nut, 1/4"-28 (12.9120) 2.939000111$4.020
CONTINUE TO NEXT PAGE FOR GROUP 2.9400
