Series 60 Detroit Diesel Engines

ELECTRONIC CONTROLS - groups: 2.1671 - 2.1700

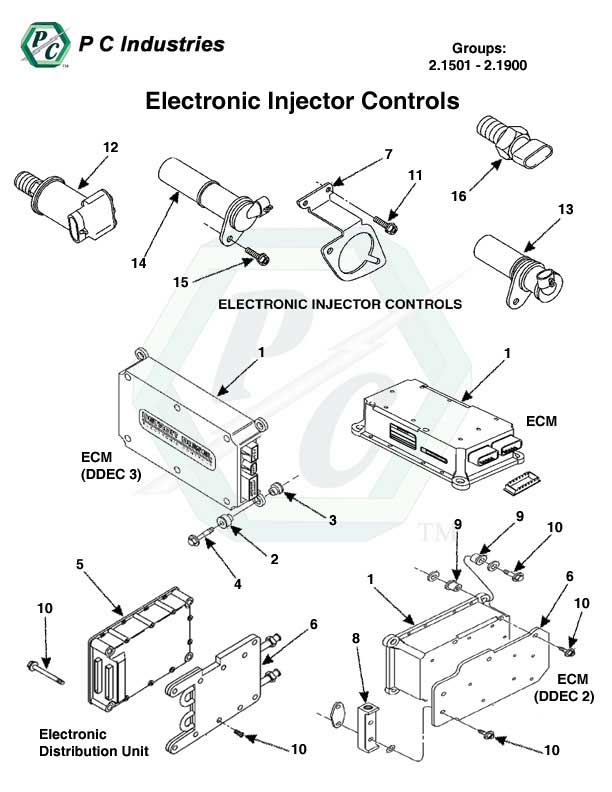

2.1501 - 2.1900 Electronic Injector Controls.jpg - Diagram

Page: 105

Information Abbreviations Alphabetical Index Group Index

	Part No.	Description	Group	Ref#	11.1L	12.7L	14.0L	Price	QOH
Details	23526113	Sensor, Oxygen	2.1671	00	A/R	A/R	A/R	$955.66	0
Details	23526762	Bracket, Oxygen Sensor	2.1671	00	A/R	A/R	A/R	$238.23	0
Details	11504972	Bolt, M6 X 1.00 X 30mm	2.1671	00	A/R	A/R	A/R	$1.72	100+
Details	11509528	Bolt, M12 X 1.75 X 30mm	2.1671	00	A/R	A/R	A/R	$1.94	0
Details	23521500	Harness Assembly, ECM-EMIM; DDEC 3	2.1690	00	A/R	A/R	A/R	$1,189.73	0
Details	23521535	Harness Assembly, ECM-EMIM; DDEC 3	2.1690	00	A/R	A/R	A/R	$859.59	0
Details	23525135	Harness, ECM-EMIM	2.1690	00	A/R	A/R	A/R	$1,100.83	0
Details	23525136	Harness, ECM/EMIM Port	2.1690	00	A/R	A/R	A/R	$1,310.52	0
Details	23509135	Clip, Spring; 0.490" Diameter 3/8" Bolt; (4.6040)	2.1690	00	A/R	A/R	A/R	$13.85	0
Details	23509136	Clip, Spring; 0.640" Diameter 3/8" Bolt; (2.5146)	2.1690	00	A/R	A/R	A/R	$21.72	0
Details	23506443	Clip, #16 Hose; 1" Diameter; (4.8183)	2.1690	00	A/R	A/R	A/R	$2.42	0
Details	2362448	Clip, 0.688" Diameter, 3/8" Bolt; Ctd.; (12.8554)	2.1690	00	A/R	A/R	A/R	$3.20	0
Details	5101020	Strap, Nylon; (2.5255)	2.1690	00	A/R	A/R	A/R	$0.44	0
Details	11504986	Bolt, M8 X 1.25 X 14mm	2.1690	00	A/R	A/R	A/R	$1.44	0
Details	12114464	Harness, EDU To Injector	2.1700	00	A/R	A/R	A/R	$236.37	0
Details	23513605	Harness, EDU To Injector	2.1700	00	A/R	A/R	A/R	$431.45	1
Details	12114461	Harness, EDU To Injector; DDEC 2; J-Brakes	2.1700	00	A/R	A/R	A/R	$338.71	1
Details	23513556	Harness, EDU To Injector; DDEC 3	2.1700	00	A/R	A/R	A/R	$532.27	0
Details	23513557	Harness, EDU To Injector; DDEC 3	2.1700	00	A/R	A/R	A/R	$395.17	0
Details	23513661	Harness, EDU To Injector; DDEC 3	2.1700	00	A/R	A/R	A/R	$633.06	0
Details	23515763	Harness, EDU To Injector; DDEC 3; J-Brakes	2.1700	00	A/R	A/R	A/R	$419.36	0
Details	23532060	Harness, Engine Sensor	2.1700	00	A/R	A/R	A/R	$270.20	0
Details	12087832	Harness, Injector; DDEC 1; Anti-Capillary Wire	2.1700	00	A/R	A/R	A/R	$246.38	0
Details	8929469	Harness; DDEC 2	2.1700	00	A/R	A/R	A/R	$395.17	0
Details	23506183	Harness; DDEC 2	2.1700	00	A/R	A/R	A/R	$280.04	0
Details	5173022	Bracket, Clip; 90 Deg.	2.1700	00	A/R	A/R	A/R	$4.25	100+
Details	11509511	Bolt, M8 X 1.25 X 20mm	2.1700	00	A/R	A/R	A/R	$1.39	2
Details	835008061	Stud, M8 X 20	2.1700	00	A/R	A/R	A/R	$1.39	0
	GROUP 2.1700 CONTINUED ON NEXT PAGE

Information Abbreviations Alphabetical Index Group Index

Page: 105
