Series 60 Detroit Diesel Engines

AIR COMPRESSOR - groups: 12.4072 - 12.4085

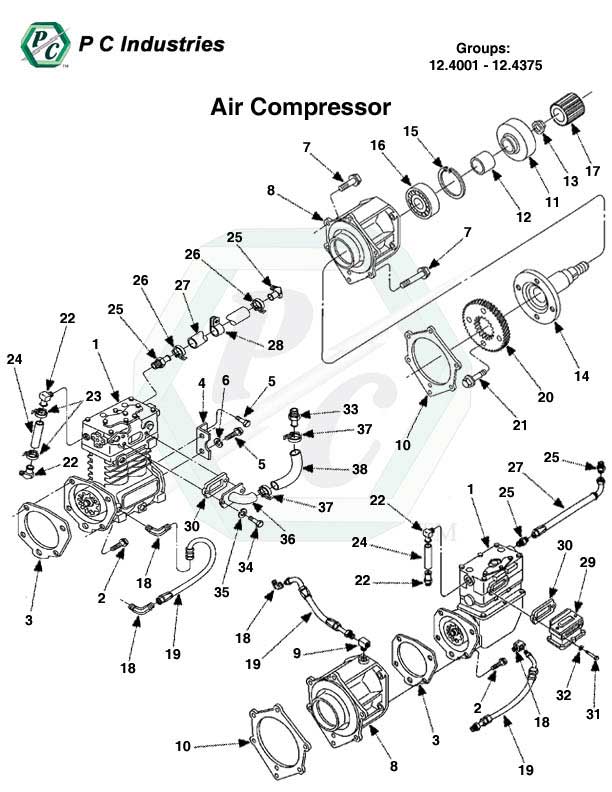

12.4001 - 12.4375 Air Compressor.jpg - Diagram

Page: 285

Information Abbreviations Alphabetical Index Group Index

	Part No.	Description	Group	Ref#	11.1L	12.7L	14.0L	Price	QOH
Details	8929311	Gear, R.H; 69 Tooth	12.4072	20	A/R	A/R	A/R	$882.98	2
Details	11505299	Bolt, M10 X 1.5 X 30mm	12.4072	21	A/R	A/R	A/R	$1.59	12
Details	8924174	Adaptor, 1/2"-14 Pipe; (12.9565)	12.4085	00	A/R	A/R	A/R	$20.36	4
Details	23528005	Tube Assembly, Coolant Return To Water Pump	12.4085	24	A/R	A/R	A/R	$219.54	0
Details	23505201	Elbow, 45 Deg. 3/4" Hose; (12.4085)	12.4085	22	A/R	A/R	A/R	$20.44	7
Details	23514287	Elbow, 90 Deg. Street	12.4085	22	A/R	A/R	A/R	$111.48	0
Details	23524186	Elbow, 5/8" Tube, 1/2" NPTF; W/Seal	12.4085	22	A/R	A/R	A/R	$16.78	0
Details	23524187	Elbow, M16 X 16 X 1.5 Coolant; 6G To Barb For 5/8" Hose	12.4085	22	A/R	A/R	A/R	$95.53	0
Details	8929749	Elbow, 90 Deg. 3/4" Tube 1/2" NPTF; W/Seal	12.4085	22	A/R	A/R	A/R	$17.55	0
Details	8929752	Elbow, 45 Deg. 1/2" Pipe Street; Inv. Flared Brass	12.4085	22	A/R	A/R	A/R	$14.07	0
Details	23531329	Fitting, 45 Deg.	12.4085	22	A/R	A/R	A/R	$29.63	0
Details	8929748	Connector, 3/4" Tube, 1/2" NPTF; (12.4085)	12.4085	22	A/R	A/R	A/R	$10.88	0
Details	23526869	Tee, Pipe; 3-Way	12.4085	00	A/R	A/R	A/R	$32.41	4
Details	23506443	Clip, #16 Hose; 1" Diameter; (4.8183)	12.4085	00	A/R	A/R	A/R	$1.98	1
Details	2362448	Clip, 0.688" Diameter, 3/8" Bolt; Ctd.; (12.8554)	12.4085	00	A/R	A/R	A/R	$1.89	0
Details	11503454	Bolt, M10 X 1.5 X 20mm	12.4085	00	A/R	A/R	A/R	$3.78	0
Details	23507896	Clamp, 13/16"-1.5" I.D.; Constant Torque	12.4085	23	A/R	A/R	A/R	$25.85	10
Details	23514625	Clamp, 15mm X 17mm I.D. Hose; (Rotor Clip)	12.4085	23	A/R	A/R	A/R	$1.96	0
Details	23517093	Clamp, 15mm X 25.2mm I.D. Hose; (Rotor Clip)	12.4085	23	A/R	A/R	A/R	$2.58	0
Details	23524188	Clamp, Hose	12.4085	23	A/R	A/R	A/R	$3.38	0
Details	8929756	Clamp, 15/16"-1 1/4"; (12.9660)	12.4085	23	A/R	A/R	A/R	$5.59	0
Details	23527092	Hose/Tube Assembly; Braided	12.4085	24	A/R	A/R	A/R	$226.77	0
Details	GDJL0260	Hose Assembly, #12 X 64.6" Long; Braided	12.4085	24	A/R	A/R	A/R	$266.74	0
Details	GDLL0134	Hose Assembly, #12 X 16.7" Long; L&L; 2807	12.4085	24	A/R	A/R	A/R	$144.74	0
Details	23517094	Hose, 0.75" X 10" Long; (Blue)	12.4085	24	A/R	A/R	A/R	$18.04	0
Details	23517097	Hose, 0.75 X 12.50" Long	12.4085	24	A/R	A/R	A/R	$19.01	0
Details	23524193	Hose, 0.62" X 9.30" Long	12.4085	24	A/R	A/R	A/R	$13.49	0
Details	23509550	Hose, 0.75" X 4.00" Long	12.4085	24	A/R	A/R	A/R	$34.53	0
Details	8929764	Hose, 0.75" X 3.50"; (12.4085)	12.4085	24	A/R	A/R	A/R	$11.28	0
Details	23517126	Hose, 0.75" X 3.62" Long	12.4085	24	A/R	A/R	A/R	$12.82	0
	CONTINUE TO NEXT PAGE FOR GROUP 12.4090
