Series 60 Detroit Diesel Engines

CYLINDER KITS - group: 1.6182

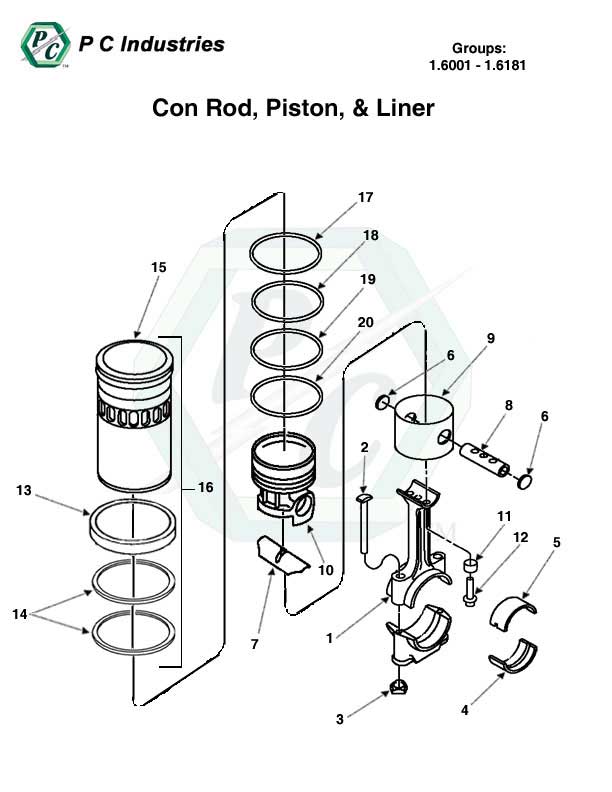

1.6001 - 1.6181 Con Rod Piston & Liner.jpg - Diagram
Page: 45
Part No. Description GroupRef#11.1L12.7L14.0L Price QOH
Details 23532590 Cylinder Kit; Bainitic Liner; Non-TLC Large O.D.
Dome; 2.5mm Ring; (Option Type #'s 369, 370,
405, 406, 421, 422)
Superceded... Click 'Details' for replacement.
1.618200A/R0
Details 23516681 Skirt, Crosshead Piston; (Roc) 1.6182091$68.140
Details View Images 8929013 Seal, Crevice 1.6182131$2.5112
Details 8929087 Pin, Piston 1.6182081$28.190
Details View Images 8929176 Seal, D-Ring 1.6182142$4.6412
Details View Images 8929337 Bolt, M14 X 1.5 X 60; 12 Point Head 1.6182122$2.7914
Details 8929844 Ring, Piston Top; 2.5mm Keystone 1.6182171$6.040
Details View Images 8929845 Ring, Piston Bottom; Keystone 1.6182181$7.899
Details View Images 23504942 Bushing, Top Piston Dome; 3 Piece 1.6182071$13.823
Details View Images 23515500 Ring, Piston Oil Control; Crosshead Piston 1.6182191$9.841
View Images 23519558 Bearing, Piston; (Lower); Pressure Fit; S50/60 (OBSOLETE) 1.6182042OBSOLETE2
Details View Images 23529379 Expander, Oil Control Ring; Spr Piston 1.6182201$4.251
4PM037E Skid 1.61820010
23529367 Dome Assembly; 15:1 Crosshead Piston 1.61821010
23532450 Liner, Cylinder; Non-TLC; 12.7L 1.61821510
Details 23532556 Cylinder Kit; 15:1 TLC Bainitic Liner; 3.5mm Ring;
S50/60; (Option Type #'s 486, 509, 514, 518, 521,
526, 596, 847, 928)
Superceded... Click 'Details' for replacement.
1.618200A/R0
Details 23516681 Skirt, Crosshead Piston; (Roc) 1.6182091$68.140
Details View Images 8929013 Seal, Crevice 1.6182131$2.5112
Details 8929087 Pin, Piston 1.6182081$28.190
Details View Images 8929176 Seal, D-Ring 1.6182142$4.6412
Details View Images 8929337 Bolt, M14 X 1.5 X 60; 12Point 1.6182122$2.7914
Details View Images 8929845 Ring, Piston Bottom; Keystone 1.6182181$7.899
Details 23504941 Ring, Top; 3.5mm Keystone 1.6182171$10.860
Details View Images 23504942 Bushing, Top Piston Dome; 3 Piece 1.6182071$13.823
Details View Images 23515500 Ring, Piston Oil Control; Crosshead Piston 1.6182191$9.841
View Images 23519558 Bearing, Piston; (Lower); Pressure Fit; S50/60 (OBSOLETE) 1.6182042OBSOLETE2
Details View Images 23529379 Expander, Oil Control Ring; Spr Piston 1.6182201$4.251
4PM037E Skid 1.61820010
23529368 Dome Assembly; 15:1 Crosshead Piston 1.61821010
23531502 Liner, Cylinder; Bainitic; 12L (OBSOLETE) 1.6182151OBSOLETE0
GROUP 1.6182 CONTINUED ON NEXT PAGE
