Series 60 Detroit Diesel Engines

VALVE TRAIN - group: 1.8072

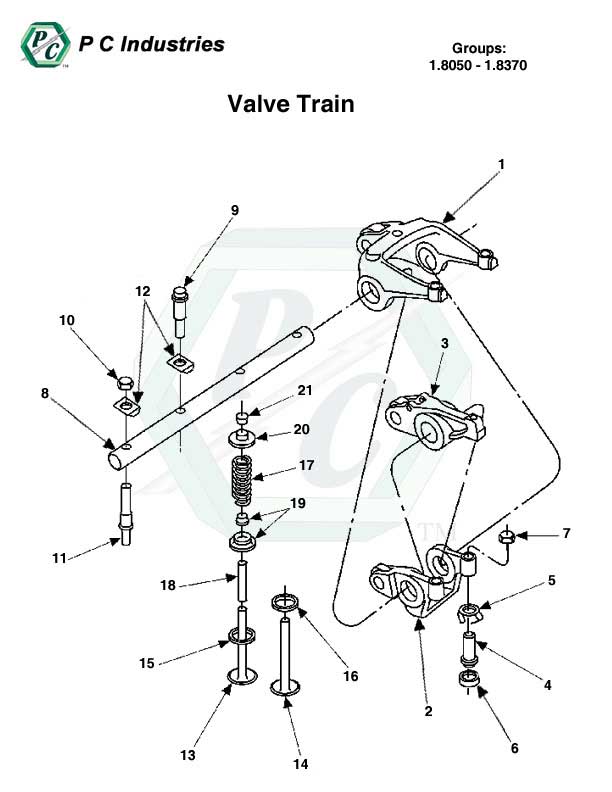

1.8050 - 1.8370 Valve Train.jpg - Diagram
Page: 75
Part No. Description Group Ref#11.1L12.7L14.0L Price QOH
Details 1029128 Housing Assembly, Front Flat Brake; 12V Mod 790B; 12L 1.807200A/R$1,800.670
Details 1029130 Housing Assembly, Front Flat Brake; 24V Model 790B; 12L 1.807200A/R$1,646.580
Details 1029131 Housing Assembly, Rear Flat Brake; 24V Model 790B; 12L 1.807200A/R$1,737.780
Next 25 Parts Are Subcomponents Of Each Of The Above Three
Housing Assemblies (#'s 1029128, 1029130, & 1029131).
Details 1024619 Solenoid 1.8072002$98.020
Details View Images 1082 Seal Ring, Center 1.8072002$0.448
Details View Images 1083 Seal Ring, Lower 1.8072002$1.5710
Details 11930 Spool Assembly, Control Valve 1.8072003$23.030
Details 12991 Retaining Ring 1.8072003$2.350
1519 Spring, Control Valve Stop 1.80720030
Details View Images 16505 Washer 1.8072003$2.141
Details 18179 Spring, Inner Control Valve; Yellow 1.8072003$5.020
18485 Plug, Pipe; Flush Seal 1.807200140
Details 19987 Nut, 5/8"-20 Hex; Special 1.8072006$10.490
Details View Images 20229 Seal Ring, Upper 1.8072002$1.9110
Details 26142 Piston, Slave; For Flat Brake Model 790 1.8072006$58.900
Details 26555 Retaining Ring 1.8072003$0.300
Details View Images 26932 Piston, Master; For Flat Brake Model 790 1.8072003$72.181
Details 28364 Housing, Front Brake; Machined; Model 790 1.8072001$104.120
Details 28372 Spring, Inner Slave Piston Return; Flat Brake 1.8072003$3.350
Details 28373 Spring, Slave Piston Return; Flat Brake 1.8072003$5.050
Details 28379 Bridge, Slave Piston; For Flat Brake Model 790 1.8072003$8.710
Details 28768 Spring, Master Piston; Model 790 1.8072003$4.010
Details 28791 Push Rod, Master Piston; Model 790 1.8072003$24.040
Details 29295 Bolt, Shoulder; Slave Piston; 3/8" X 1.50"L 1.8072003$6.930
Details 29317 Power J Lash Assembly; Flat Brake 1.8072006$58.290
Details 29589 Kit, Wire Clip 1.8072002$4.050
Details 29944 Washer, Retainer; Model 790 1.8072003$1.950
Details 9922 Screw, #4 X 1/4" L; Drive 1.8072004$1.280
