Series Inline 71 Detroit Diesel Engines

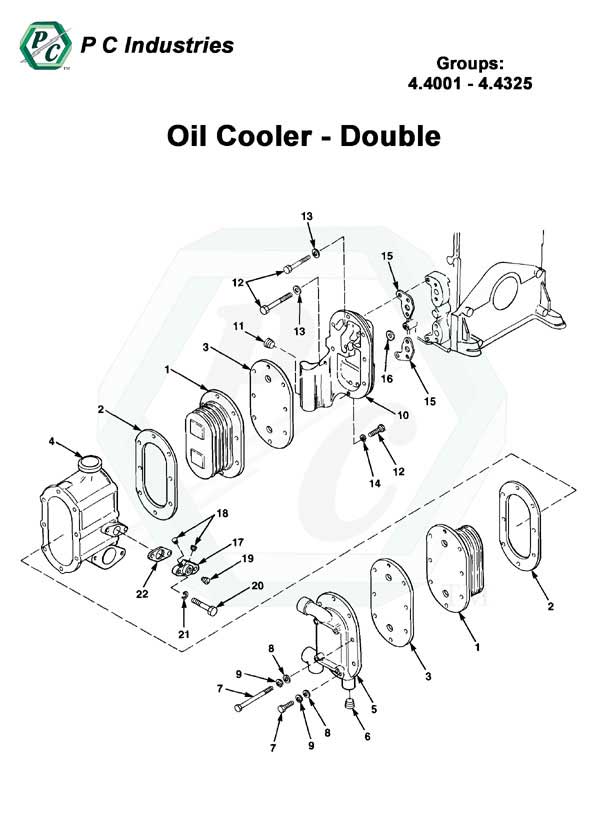

OIL COOLER - DOUBLE - groups: 4.4001 - 4.4080

il71_oil_cooler_double_pg119-121.jpg - Diagram

Page: 119

Information Abbreviations Alphabetical Index Group Index

	Part No.	Description	Group	Ref#	3IL	4IL	6IL	Price	QOH
Details	8547548	Core Assy., Oil Cooler - Engine (6 Plate)	4.4001	01	1	1		$459.60	4
Details	8547563	Core Assy., Oil Cooler - Engine (8 Plate)	4.4001	01	1	1	1	$573.56	11
Details	8547236	Core Assy., Oil Cooler - Engine (12 Plate)	4.4001	01		1	1	$708.16	16
Details	5150155	Gasket, Oil Cooler Core Inner Superceded... Click 'Details' for replacement.	4.4030	02	1	1	1		0
Details	5102506	Gasket, Oil Cooler Core Outer	4.4040	03	1	1	1	$6.94	0
Details	8923223	Gasket, Oil Cooler Core Outer	4.4040	03	A/R	A/R	A/R	$7.01	16
Details	5186459	Housing, Oil Cooler - Engine (C or D Engine)	4.4050	04	1	1	1	$2,117.83	0
Details	5174941	Housing, Oil Cooler - Engine (C or D Engine)	4.4050	04	1	1	1	$787.50	0
Details	5113653	Housing, Oil Cooler - Engine (C or D Engine)	4.4050	04	1	1	1	$1,510.63	0
	5186318	Housing, Oil Cooler - Engine (A or B Engine) (OBSOLETE)	4.4050	04	1	1	1	OBSOLETE	0
Details	5111209	Housing, Oil Cooler - Engine (A or B Engine) (OBSOLETE)	4.4050	04	1	1	1	OBSOLETE	1
Details	5113886	Housing, Oil Cooler - Engine (A or B Engine)	4.4050	04	1	1	1	$1,258.54	0
Details	8924140	Draincock, 1/4" (12.9510)	4.4050	00	1	1	1	$15.33	18
Details	5121182	Plug, 1/4" Pipe (2.4015)	4.4050	00			1	$8.90	100+
Details	186624	Bolt, 5/16"-18 X 1 1/4" (12.9001)	4.4050	00	2	2	4	$0.79	18
Details	186650	Bolt, 5/16"-18 X 4 3/4" (12.9001)	4.4050	00	16	16	16	$5.59	16
Details	186646	Bolt, 1/2"-13 X 1 3/4" (12.9001)	4.4050	00	4	4	4	$2.04	12
Details	103320	Lockwasher, 5/16" (12.9200)	4.4050	00	A/R	A/R	A/R	$0.07	100+
Details	103323	Lockwasher, 1/2" (12.9200)	4.4050	00	4	4	4	$0.17	100+
Details	5153902	Gasket, Oil Cooler Housing (Fitting Hole) (4.1520)	4.4050	00	A/R	A/R	A/R	$1.07	20
Details	5167775	Cover, Oil Cooler Housing	4.4060	05	1	1	1	$476.84	14
Details	5107975	Cover, Oil Cooler Housing	4.4060	05	1	1	1	$1,129.11	8
Details	5123214	Cover, Oil Cooler Housing	4.4060	05	1	1	1	$477.96	13
Details	5121182	Plug, 1/4" Pipe (2.4015)	4.4060	00	A/R	A/R	A/R	$8.90	100+
Details	5142549	Plug, 3/4" Pipe (12.9550)	4.4060	06	2	2	2	$2.19	100+
Details	186624	Bolt, 5/16"-18 X 1 1/4" (12.9001)	4.4060	07	8	8	16	$0.79	18
Details	179823	Bolt, 5/16"-18 X 1 5/8" (12.9001)	4.4060	07	16	16	16	$3.59	7
Details	446597	Bolt, 5/16"-18 X 6 1/2" (12.9001)	4.4060	07	6	6		$5.30	22
Details	274682	Bolt, 5/16"-18 X 7 3/4" (12.9001)	4.4060	07			5	$4.93	11
Details	120393	Washer, 5/16" Flat (12.9190)	4.4060	08	A/R	A/R	A/R	$0.48	100+
Details	103320	Lockwasher, 5/16" (12.9200)	4.4060	09	A/R	A/R	A/R	$0.07	100+
Details	5183008	Lockwasher, 5/16" (12.9200)	4.4080	00	1	1		$25.25	0
Details	186625	Bolt, 5/16"-18 X 7/8" (12.9001)	4.4080	00	2	2		$1.02	90
Details	103320	Lockwasher, 5/16" (12.9200)	4.4080	00	2	2	A/R	$0.07	100+
	CONTINUE TO NEXT PAGE FOR GROUP 4.4090
