Series Inline 71 Detroit Diesel Engines

OIL PAN - groups: 4.7080 - 4.7150

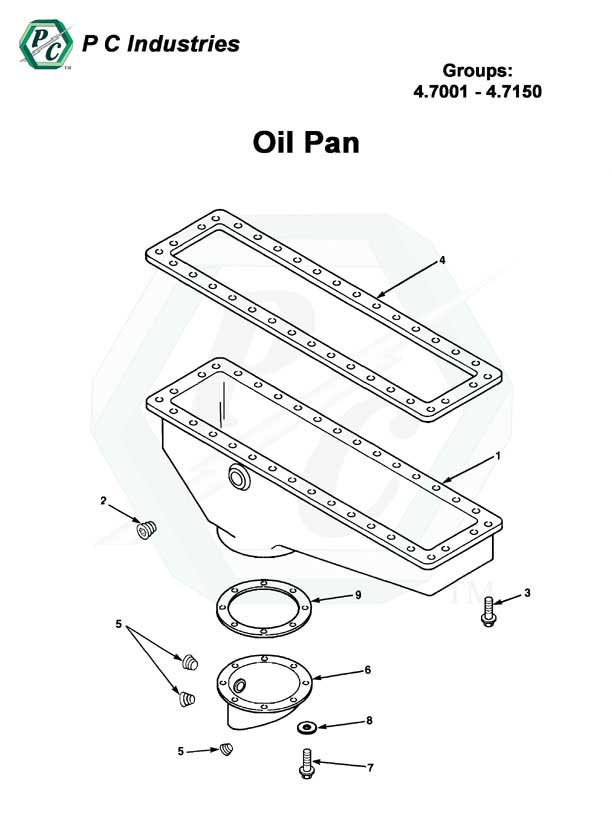

il71_oil_pan_pg126-127.jpg - Diagram
Page: 127
Part No. Description Group Ref#2IL3IL4IL6IL Price QOH
Details View Images 5146891 Plug, Oil Pan Drain (1/2" Pipe) (Magnetic) 4.708005A/RA/RA/RA/R$7.933
Details View Images 5142549 Plug, Oil Pan Drain (3/4" Pipe) (12.9550) 4.708005A/RA/RA/RA/R$2.14100+
Details 5173335 Plug, Oil Pan Drain (3/4" Pipe) (12.9550) 4.708005A/RA/RA/RA/R$24.960
Details View Images 5103187 Plug, Oil Pan Drain (3/4" Pipe) (12.9550) 4.708005A/RA/RA/RA/R$5.195
Details View Images 113177 Plug, Oil Pan Drain (3/4" Pipe) (12.9550) 4.708005A/RA/RA/RA/R$9.470
Details View Images 5178994 Plug, Oil Pan Drain (3/4" Pipe) (Magnetic) 4.708005A/RA/RA/RA/R$10.942
Details View Images 5138456 Plug, Oil Pan Drain (18 MM. Pipe) (Magnetic) 4.708005A/RA/RA/RA/R$12.417
Details 5138621 Plug, Oil Pan Drain (18 MM. Pipe) (4.4160) 4.708005A/RA/RA/RA/R$122.330
Details View Images 840277 Gasket, Oil Drain Plug (18 MM., Nylon) 4.709000A/RA/RA/RA/R$1.27100+
Details 5175082 Tube Assy., Oil Pan Drain (Dev. L. 13 3/4") 4.710000111$180.230
Details 5112605 Tube Assy., Oil Pan Drain (#1/2" X 14") 4.710000111$168.740
5129157 Tube Assy., Oil Pan Drain (Flex Hose, 21" L.) (12.4070) (OBSOLETE) 4.71000011OBSOLETE0
Details 5121825 Fitting, Oil Pan Drain Tube (12.4090) 4.710000222$15.150
Details View Images 8924159 Bushing, 3/4" X 3/8" Red. (12.9570) 4.710000111$24.821
Details View Images 8924517 Plug, 3/8" Pipe (12.9550) 4.7100001111$0.95100+
Details 5153787 Cover, Oil Drain (Center Drain) 4.712000111$105.690
Details 5171165 Cover, Oil Drain (Side Drain) 4.712000111$256.547
Details 5186613 Cover, Oil Drain 4.7120002$197.970
Details 5154506 Cover, Oil Drain 4.71200011$59.910
Details View Images 5148437 Bolt, 5/16"-18 X 1" (w/LW) (12.9001) 4.712000888$8.8879
Details View Images 5148438 Bolt, 5/16"-18 X 1 1/4" (w/LW) (12.9001) 4.7120008$4.2257
Details View Images 120393 Washer, 5/16" (12.9190) 4.712000888$0.48100+
Details View Images 103320 Lockwasher, 5/16" (12.9200) 4.712000888$0.07100+
Details View Images 5153788 Gasket, Oil Pan Cover 4.713000111$7.2212
5154507 Gasket, Oil Pan Cover (OBSOLETE) 4.7130001OBSOLETE0
5186755 Gasket, Oil Pan Cover (OBSOLETE) 4.7130002OBSOLETE0
5187559 Gasket, Oil Pan Cover (OBSOLETE) 4.7130003OBSOLETE0
Details View Images 5120540 Gasket, Oil Pan Cover (4.5007) 4.7130001$3.387
Details 5115157 Sump, Oil Pan 4.7140061$447.394
Details View Images 5141754 Sump, Oil Pan 4.71400611$690.203
Details View Images 5115214 Plug, Oil Pan Sump (1/2" Pipe) (12.9550) 4.71400522$2.79100+
662421 Bolt, 5/16"-18 X 3/4" (12.9001) (OBSOLETE) 4.71400788OBSOLETE0
Details View Images 660793 Washer, Special (4.7020) 4.71400888$2.571
Details View Images 5153986 Gasket, Oil Pan Sump (4.7130) 4.71500911$9.288
CONTINUE TO NEXT PAGE FOR GROUP 4.8001
