Series Inline 71 Detroit Diesel Engines

RAW WATER PUMP - groups: 5.6001 - 5.6020

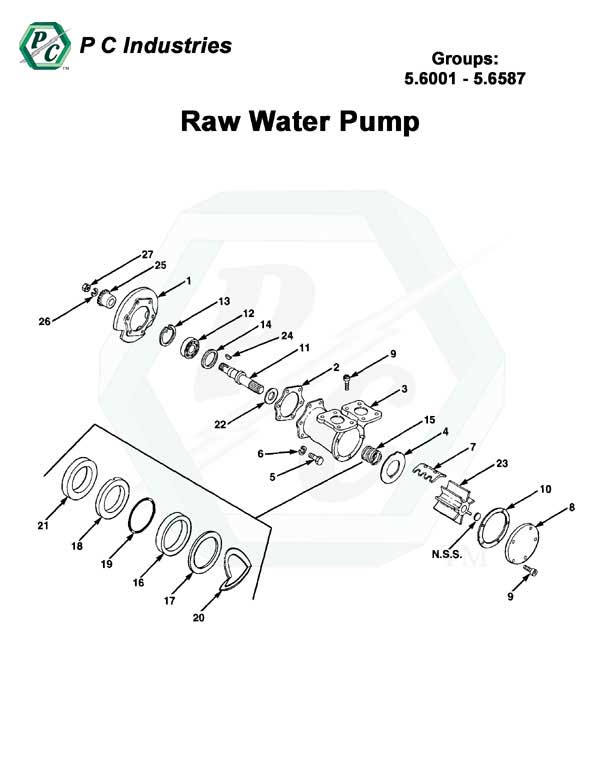

il71_raw_water_pump_pg150-156.jpg - Diagram
Page: 150
Information   Abbreviations   Alphabetical Index   Group Index
Part No. Description Group Ref#2IL3IL4IL6IL Price QOH
Note: Option Types # 35 & 36 Not Serviced.
Details View Images 23507972 Pump Assy., Raw Water (Option Type # 49, 50, 51, 82) 5.6001001$1,003.845
Details View Images 5145578 Pump Assy., Raw Water (Option Type # 85) 5.6001001$1,020.302
Details View Images 5145577 Pump Assy., Raw Water (Option Type # 9, 10, 32) 5.6001001$712.500
Details 5145576 Pump Assy., Raw Water (Option Type # 14, 79, 84) 5.600100111$1,807.100
5187140 Pump Assy., Raw Water (Option Type # 17) (OBSOLETE) 5.60010011OBSOLETE0
5115800 Pump Assy., Raw Water (Option Type # 29, 30, 73) (OBSOLETE) 5.60010011OBSOLETE0
Details 5186250 Pump Assy., Raw Water (Option Type # 13) 5.600100111$926.090
Details 5192041 Pump Assy., Raw Water (Option Type # 4, 5, 6, 7 ,8)
Superceded... Click 'Details' for replacement. 		5.6001001110
Details View Images 23507971 Pump Assy., Raw Water
(Option Type # 1, 2, 3, 28, 31, 62, 70, 71, 72, 75, 76, 77, 78, 80, 83) 		5.600100111$755.482
Details View Images 8927581 Bolt, 3/8"-16 X 1" (w/Seal Patch) (12.9001) 5.6001004$1.1748
Details View Images 186622 Bolt, 3/8"-16 X 1 1/4" (12.9001) 5.600100222$1.1218
Details View Images 186318 Bolt, 3/8"-24 X 5 1/4" (12.9001) 5.600100222$11.739
Details 186658 Bolt, 3/8"-24 X 5 1/2" (12.9001) 5.600100222$2.510
Details View Images 193221 Bolt, 7/16"-14 X 1 1/4" (12.9001) 5.600100444$3.3626
Details View Images 179882 Bolt, 1/2"-13 X 1 1/8" (12.9001) 5.600100333$1.20106
Details View Images 179844 Bolt, 1/2"-13 X 1 3/8" (12.9001) 5.600100444$0.874
Details View Images 103341 Washer, 3/8" (12.9190) 5.600100666$0.34303
Details View Images 5152148 Washer, 3/8" Copper (2.4050) 5.6001004$0.18903
Details View Images 5150568 Washer, 7/16" Copper (2.4050) 5.600100111$0.58352
Details View Images 103343 Washer, 1/2" (12.9190) 5.600100114$0.3121
Details View Images 103322 Lockwasher, 7/16" (12.9200) 5.600100111$0.33125
Details View Images 103323 Lockwasher, 1/2" (12.9200) 5.600100444$0.15239
Details View Images 103028 Nut, 1/2"-20 (12.9120) 5.6001004$0.892
Details View Images 5193551 Adaptor, Raw Water Pump Drive Flange 5.601001111$323.2519
Details 5195752 Pin, 1/4" Lock (Dowel) 5.6010001$3.660
Details 23501662 Gasket, Raw Water Pump Adaptor 5.601202111$2.4514
Details 5196165 Body, Raw Water Pump Impeller Hsg. (W/23507972 Pump) 5.6020031$1,172.970
Details View Images 5199377 Body, Raw Water Pump Impeller Hsg. (W/5145578 Pump) 5.6020031$703.661
Details 5195411 Body, Raw Water Pump Impeller Hsg. (W/23507971, 5115800 Pump) 5.602003111$1,081.550
Details 5193550 Body, Raw Water Pump Impeller Hsg.
(W/5187140, 5186250, 5194096 Pump) 		5.602003111$948.580
Details 5199375 Body, Raw Water Pump Impeller Hsg. (W/5145577 Pump) 5.6020031$540.490
Details 5199332 Body, Raw Water Pump Impeller Hsg. (W/5145576 Pump) 5.602003111$403.540
Details 5193556 Plate, Wear 5.602004111$21.281
Details 5195753 Plate, Wear 5.6020041$15.441
Details View Images 5197597 Pin, 3/16 X 5/16" Dowel 5.602000111$8.806
Details 141157 Pin, 3/16 X 7/8" Dowel (12.9290) 5.6020002222$10.150
Details View Images 5163867 Stud, 5/16"-18 1 5/16" (5.5620) 5.6020004$8.804
Details 117277 Bolt, #10-24 X 2 1/4" (12.9010) 5.6020006$3.760
GROUP 5.6020 CONTINUED ON NEXT PAGE
