Series Inline 71 Detroit Diesel Engines

FUEL PUMP - groups: 2.2001 - 2.2004

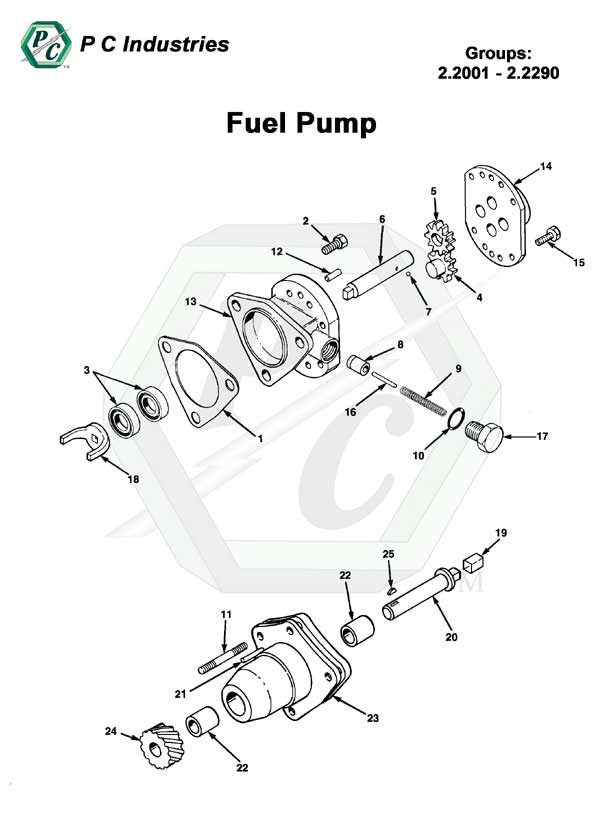

il71_fuel_pump_pg43-45.jpg - Diagram
Page: 43
Part No. Description Group Ref#2IL3IL4IL6IL Price QOH
Details View Images 5199560 Kit, Fuel Pump Standard Output L.H. (Axial Output) 2.200100A/RA/RA/RA/R$181.406
Details 5108064 Pump Assy., Fuel LH Stmp 1/4" Gear *NOT SOLD SEPERATELY
Superceded... Click 'Details' for replacement.
2.20010011110
Details View Images 5150193 Gasket, Fuel Pump (Pump To Engine) (5.1010) 2.2001011111$0.83190
Details 8924380 Plug, 1/8"-27 Pipe Nptf Sq. Socket Head (12.9550) 2.2001002222$1.144298
Details 5198558 Bushing, 3/8" X 1/4" Red. (2.2030) 2.2001001111$1.00624
Details View Images 5199735 Kit, Fuel Pump High Output L.H. (Radial Output) 2.200100A/RA/RA/RA/R$254.603
Details 5108067 Pump Assy., Fuel LH Stmp 3/8" Gear *NOT SOLD SEPERATELY
Superceded... Click 'Details' for replacement.
2.20010011110
Details View Images 5150193 Gasket, Fuel Pump (Pump To Engine) (5.1010) 2.2001011111$0.83190
Details 8924380 Plug, 1/8"-27 Pipe Nptf Sq. Socket Head (12.9550) 2.2001002222$1.144298
Details 5198558 Bushing, 3/8" X 1/4" Red. (2.2030) 2.2001001111$1.00624
Details View Images 5199561 Kit, Fuel Pump Standard Output R.H. 2.200100A/RA/RA/RA/R$210.1868
Details 5108063 Pump Assy., RH Stmp 1/4" Gear *NOT SOLD SEPERATELY
Superceded... Click 'Details' for replacement.
2.20010011110
Details View Images 5150193 Gasket, Fuel Pump (Pump To Engine) (5.1010) 2.2001011111$0.83190
Details 8924380 Plug, 1/8"-27 Pipe Nptf Sq. Socket Head (12.9550) 2.2001002222$1.144298
Details 5198558 Bushing, 3/8" X 1/4" Red. (2.2030) 2.2001001111$1.00624
Details View Images 5199734 Kit, Fuel Pump (High Output; R.H. Axial Output) 2.200100A/RA/RA/RA/R$226.682
Details 5108066 Pump Assy., RH Stamp 3/8" Gear *NOT SOLD SEPERATELY
Superceded... Click 'Details' for replacement.
2.20010011110
Details View Images 5150193 Gasket, Fuel Pump (Pump To Engine) (5.1010) 2.2001011111$0.83190
Details 8924380 Plug, 1/8"-27 Pipe Nptf Sq. Socket Head (12.9550) 2.2001002222$1.144298
Details 5198558 Bushing, 3/8" X 1/4" Red. (2.2030) 2.2001001111$1.00624
Details View Images 8925603 Bolt, Fuel Pump Mounting 5/16"-18 X 3/4" (w/Seal Patch) (5.1031) 2.2001023333$0.77156
Details View Images 5149599 Overhaul Kit, High Output Short Shaft Fuel Pump 2.200400A/RA/RA/RA/R$62.8412
Details 5136240 Plug, Cap Fuel Pump Body 1/4" (2.2010) 2.2004001111$0.4739
Details 5136241 Plug, Cap Fuel Pump Body 3/8" (2.2010) 2.2004001111$0.4260
Details View Images 5150193 Gasket, Fuel Pump (Pump To Engine) (5.1010) 2.2004011111$0.83190
Details View Images 23512243 Seal, Fuel Pump To Oil (2.2070) 2.2004032222$7.45290
Details View Images 5100313 Shaft Assy., Fuel Pump Driven (2.2089) 2.2004041111$18.782
5100312 Shaft , Fuel Pump Driven (H.O.) (2.2089) 2.20040411110
Details 5118915 Gear, Fuel Pump Driven (2.2089) (OBSOLETE) 2.2004001111OBSOLETE1
Details View Images 5146705 Shaft Assy., Fuel Pump Drive (2.2093) 2.2004001111$25.723
Details 5128217 Gear, Fuel Pump Drive (2.2087) 2.2004051111$26.002
Details View Images 5178700 Shaft , Fuel Pump Drive (2.2093) 2.2004061111$13.89165
Details View Images 147481 Ball, 1/8" Steel Diam. (12.9670) 2.2004071111$0.35121
Details 5174973 Valve, Fuel Pump (2.2130) (OBSOLETE) 2.2004081111OBSOLETE101
Details View Images 103709 Pin, 5/32" X 1" Straight (12.9300) 2.2004001111$1.3464
Details View Images 5184530 Spring, Fuel Pump Valve Retaining (2.2160) 2.2004091111$2.78133
Details View Images 5161003 Gasket, Fuel Pump Valve Plug (2.2180) 2.2004101111$0.47177
STANDARD OUTPUT FUEL PUMP OVERHAUL KIT
AND GROUP 2.2004 CONTINUED ON NEXT PAGE
