Series 92 Detroit Diesel Engines

TURBOCHARGER - groups: 3.5305 - 3.5305

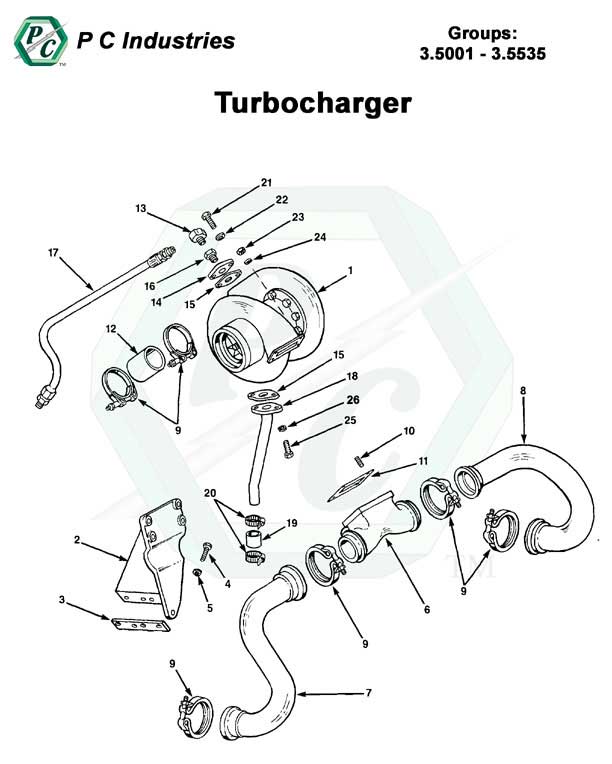

92_turbocharger_pg147-158.jpg - Diagram
Page: 151
Part No. Description Group Ref#6V8V12V16V Price QOH
Details View Images 5101763 Tube, Turbocharger Exhaust Inlet Connector (R. Bank) 3.530507A/RA/RA/RA/R$672.819
2647359 Tube, Turbocharger Exhaust Inlet Connector (R. Bank) (OBSOLETE) 3.530507A/RA/RA/RA/ROBSOLETE0
2647358 Tube, Turbocharger Exhaust Inlet Connector (L. Bank) (OBSOLETE) 3.530508A/RA/RA/RA/ROBSOLETE0
Details 5104947 Tube, Turbocharger Exhaust Inlet Connector (R. Bank) 3.530507A/RA/RA/RA/R$635.443
Details 23520593 Tube, Turbocharger Exhaust Inlet Connector (L. Bank) 3.530508A/RA/RA/RA/R$544.391
Details View Images 8928783 Tube, Turbocharger Exhaust Inlet Connector (R. Bank) 3.530507A/RA/RA/RA/R$936.122
Details View Images 8928782 Tube, Turbocharger Exhaust Inlet Connector (L. Bank) 3.530508A/RA/RA/RA/R$1,197.900
Details 5103378 Tube, Turbocharger Exhaust Inlet Connector (L. Bank) 3.530508A/RA/RA/RA/R$362.910
Details 5104933 Tube, Turbocharger Exhaust Inlet Connector (L. Bank) 3.530508A/RA/RA/RA/R$162.480
Details 23501670 Tube, Turbocharger Exhaust Inlet Connector (L. Bank) 3.530508A/RA/RA/RA/R$211.100
2647236 Tube, Turbocharger Exhaust Inlet Connector (L. Bank) (OBSOLETE) 3.530508A/RA/RA/RA/ROBSOLETE0
Details View Images 2647237 Tube, Turbocharger Exhaust Inlet Connector (R. Bank) 3.530507A/RA/RA/RA/R$289.071
Details View Images 5106482 Tube, Turbocharger Exhaust Inlet Connector (L. Bank) 3.530508A/RA/RA/RA/R$249.3427
Details View Images 5101413 Tube, Turbocharger Exhaust Inlet Connector (L. Bank) 3.530508A/RA/RA/RA/R$155.1473
Details 5103774 Tube, Turbocharger Exhaust Inlet Connector (L. Bank) 3.530508A/RA/RA/RA/R$257.640
Details 5104408 Tube, Turbocharger Exhaust Inlet Connector (L. Bank) 3.530508A/RA/RA/RA/R$731.200
Details 5103378 Tube, Turbocharger Exhaust Inlet Connector (L. Bank) 3.530508A/RA/RA/RA/R$362.910
Details 5101822 Tube, Turbocharger Exhaust Inlet Connector (L. Bank) 3.530508A/RA/RA/RA/R$327.670
Details View Images 5102144 Tube, Turbocharger Exhaust Inlet Connector (L. Bank) 3.530508A/RA/RA/RA/R$193.492
Details 8924964 Tube, Turbocharger Exhaust Inlet Connector (L. Bank)
(Option Type # 537, 541)
3.530508A/RA/RA/RA/R$637.5514
Details 23502946 Tube, Turbocharger Exhaust Inlet Connector 3.530500A/RA/RA/RA/R$339.710
Details View Images 5108715 Seal, 3.62" I.D. X 4.08" O.D. 3.530500 2 2$4.681
Details View Images 5137620 Clamp, 3.82" Dia. (6.2085)
Superceded... Click 'Details' for replacement.
3.530509 4 4 8 820
Details View Images 5146165 Clamp, 3.88" Dia. (Marman) (6.2085) 3.530509 4 4 8 8$127.202
Details View Images 23506306 Clamp, 4.50" Dia. (6.2085) 3.530509 2$37.217
Details 5132650 Clamp, 5.25" Dia. (Marman) (6.2085) 3.530509 2 2$23.0716
Details 5103649 Connector, Turbocharger Exhaust Inlet 3.530500A/RA/RA/RA/R$76.910
Details View Images 5141610 Connector, Turbocharger Exhaust Inlet 3.530500A/RA/RA/RA/R$284.395
Details View Images 5107056 Connector, Turbocharger Exhaust Inlet (Option Type # 537, 541) 3.530500A/RA/RA/RA/R$220.256
Details 5102725 Elbow, Turbocharger Exhaust Inlet (90°) (Option Type # 537, 541) 3.530500A/RA/RA/RA/R$267.035
Details View Images 23500512 Elbow, R. Bank 3.530500A/RA/RA/RA/R$933.131
Details View Images 23500513 Elbow, L. Bank 3.530500A/RA/RA/RA/R$828.750
Details 8926784 Elbow, L. Bank 3.530500A/RA/RA/RA/R$138.770
Details View Images 5130488 Stud, 3/8"-16/24 X 1.88 (5.2020) 3.530510A/RA/RA/RA/R$2.002409
Details View Images 8927270 Stud, 3/8"-16/24 X 1 5/8" (5.2020) 3.530510A/RA/RA/RA/R$1.301031
Details 5131433 Washer, .41" X .81" X .1345" (1.5001) 3.530500A/RA/RA/RA/R$3.63318
CONTINUE TO NEXT PAGE FOR GROUP 3.5307
