Series 92 Detroit Diesel Engines

CYLINDER KITS USED WITH OPTION TYPE #'s 274, 276,
593, 615. - group: 1.6182

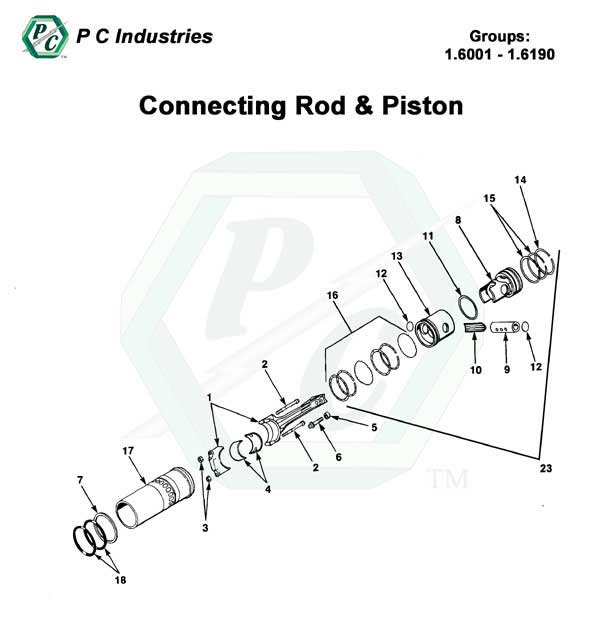

92_connecting_rod_pg19-38.jpg - Diagram
Page: 24
Part No. Description Group Ref#6V8V12V16V Price QOH
All Cylinder Kits Below Are Used With
Option Type #'s 274, 276, 593, 615.
Details View Images 23524341 Cylinder Kit, Turbo, Std., 17:1
(.95" Port Ht., 25° Port Angle)
1.618200A/RA/RA/RA/R$288.5282
Details 5107176 Liner, Cylinder, Standard
(.95" Port Ht., 25° Port Angle)
1.618217 1 1 1 1$79.6774
Details 23524341-1 Cylinder Kit, Turbo, .001" OS, 17:1
(.95" Port Ht., 25° Port Angle)
1.618200A/RA/RA/RA/R$213.570
Details 5107176-1 Liner, Cylinder, .001" Lower Bore
(.95" Port Ht., 25° Port Angle)
1.618217 1 1 1 1$61.290
Details 23524341-10 Cylinder Kit, Turbo, .010" OS, 17:1
(.95" Port Ht., 25° Port Angle)
1.618200A/RA/RA/RA/R$343.033
Details 5107176-10 Liner, Cylinder, .010" Lower Bore
(.95" Port Ht., 25° Port Angle)
1.618217 1 1 1 1$110.000
Details 23524341-20 Cylinder Kit, Turbo, .020" OS, 17:1
(.95" Port Ht., 25° Port Angle)
1.618200A/RA/RA/RA/R$343.034
Details 5107176-20 Liner, Cylinder, .020" Lower Bore
(.95" Port Ht., 25° Port Angle)
1.618217 1 1 1 1$110.000
Sub Components Listed Below Are Included In Each Cylinder Kit Above
Details PC-LCK-24340 Linerless Cylinder Kit, Turbo, 17:1, Wide Gap Fire Ring 1.618223A/RA/RA/RA/R$260.669
Details View Images 5149963 Dome Kit, 92 Piston 17:1, Turbo 1.618200 1 1 1 1$137.977
Details View Images 5144872 Crown, Piston, 17:1, Turbo (1.6110) 1.618208 1 1 1 1$108.0653
Details View Images 23508986 Skirt, Crosshead (1.6110) 1.618213 1 1 1 1$69.952
Details View Images 8923729 Seal Ring, Crosshead (1.6106) 1.618211 1 1 1 1$2.1632
Details 23501687 Bearing, Piston Pin (Slipper Type) (1.6142) 1.618210 1 1 1 1$11.5756
Details View Images 5101120 Pin, Piston (1.6140) 1.618209 1 1 1 1$17.77164
Details View Images 5180250 Retainer, Piston Pin (1.6150) 1.618212 2 2 2 2$0.5574
Details View Images 8927189 Seal Ring, Cyl. Liner 1.618218 2 2 2 2$6.63112
Details View Images 23524349 Ring Set, Piston (Wide Gap Fire Ring) (1.6115) 1.618200 1 1 1 1$49.7329
Details 23524192 Ring, Top Fire (Wide Gap) (6.6120) 1.618214 1 1 1 1$20.600
Details View Images 8923113 Ring, Compression (2nd and 3rd Grooves) (1.6120) 1.618215 2 2 2 2$6.451
Details View Images 23524350 Ring Set, Oil Control (For One Piston) (1.6130) 1.618216 1 1 1 1$18.9412
CONTINUE TO NEXT PAGE FOR CYLINDER KITS IN GROUP 1.6182
