Series 92 Detroit Diesel Engines

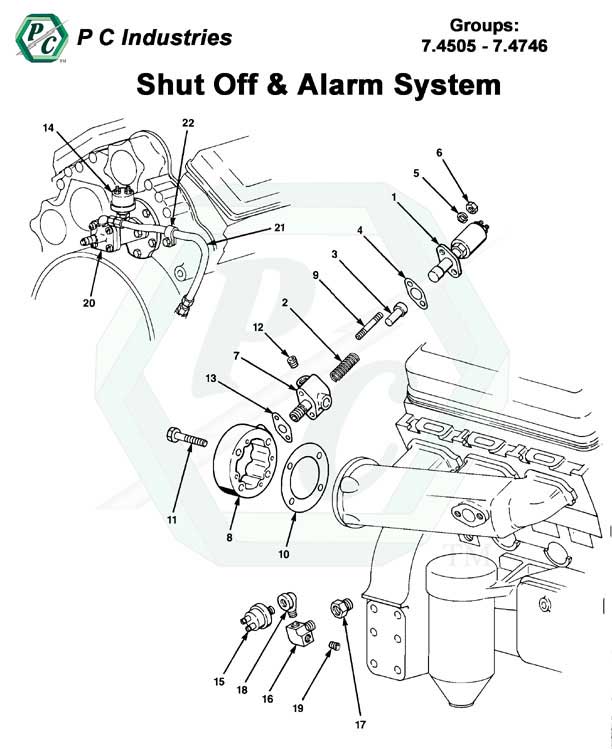

SHUT OFF & ALARM SYSTEM - groups: 7.4664 - 7.4694

Page: 252

Information Abbreviations Alphabetical Index Group Index

	Part No.	Description	Group	Ref#	6V	8V	12V	16V	Price	QOH
	5197892	Bracket, Overspeed Trip Governor Switch (Left Mount) (OBSOLETE)	7.4664	00	A/R	A/R	A/R	A/R	OBSOLETE	0
Details	5197893	Bracket, Overspeed Trip Governor Switch (Right Mount)	7.4664	00	A/R	A/R	A/R	A/R	$15.82	0
Details	5197901	Cover, Overspeed Trip Governor Housing Switch (2 Switch)	7.4677	00	A/R	A/R	A/R	A/R	$44.09	0
	5198485	Screw & Washer Ass., #8-32 X 3/8" (7.4681) (OBSOLETE)	7.4677	00	A/R	A/R	A/R	A/R	OBSOLETE	0
Details	132768	Screw, #8-32 X 3/4" RD. HD. SL. (12.9025)	7.4677	00	A/R	A/R	A/R	A/R	$0.55	0
	133527	Screw, #8-32 X 2 1/4" (12.9030) (OBSOLETE)	7.4677	00	A/R	A/R	A/R	A/R	OBSOLETE	0
Details	5195842	Bushing, Insulating (7.4659)	7.4677	00	A/R	A/R	A/R	A/R	$2.57	0
	5195864	Washer, Insulating (OBSOLETE)	7.4677	00	A/R	A/R	A/R	A/R	OBSOLETE	0
Details	5195841	Washer, #8 Insulating (7.4650)	7.4677	00	A/R	A/R	A/R	A/R	$3.28	0
Details	446143	Washer, #8 (12.9190)	7.4677	00	A/R	A/R	A/R	A/R	$6.26	0
Details	271163	Nut, #8-32 (W/Ext. Tooth Lockwasher) (12.9120)	7.4677	00	A/R	A/R	A/R	A/R	$0.99	0
	5197900	Cap Assy., Trip Governor Switch Housing (2 Switch) (7.4630) (OBSOLETE)	7.4681	00	A/R	A/R	A/R	A/R	OBSOLETE	0
	5195854	Bracket Assy., Trip Governor Switch Housing (OBSOLETE)	7.4681	00	A/R	A/R	A/R	A/R	OBSOLETE	0
	5195853	Lever, Trip Governor Switch Housing Channel (OBSOLETE)	7.4681	00	A/R	A/R	A/R	A/R	OBSOLETE	0
Details	5195846	Stud, Adjusting	7.4681	00	A/R	A/R	A/R	A/R	$5.64	0
Details	112871	Screw, #6-32 X 5/16" RD.HD. SL. (12.9025)	7.4681	00	A/R	A/R	A/R	A/R	$0.67	4
	271482	Nut, #6-32 (12.9120) (OBSOLETE)	7.4681	00	A/R	A/R	A/R	A/R	OBSOLETE	0
Details	5147623	Tube, Exhaust Manifold Water Inlet (Adaptor To Water Pump) (Dev. L. 13.02") (7.4699)	7.4694	00	A/R	A/R	A/R	A/R	$45.75	0
	5131415	Tube, Exhaust Manifold Water Inlet (Adaptor To Water Pump) (Dev. L. 32.28") (OBSOLETE)	7.4694	00	A/R	A/R	A/R	A/R	OBSOLETE	0
Details	AAAA0165	Tube, Exhaust Manifold Water Inlet (Adaptor To Water Pump) (Dev. L. 20.91")	7.4694	00	A/R	A/R	A/R	A/R	$44.22	0
Details	5101398	Tube, Exhaust Manifold Water Inlet (Adaptor To Elbow) (Dev. L. 17.56") (7.4509)	7.4694	00	A/R	A/R	A/R	A/R	$13.24	0
	5147358	Tube, Exhaust Manifold Water Inlet (Block To Adaptor) (Dev. L. 18.18") (7.4511) (OBSOLETE)	7.4694	00	A/R	A/R	A/R	A/R	OBSOLETE	0
Details	5147159	Tube, Exhaust Manifold Water Inlet (Adaptor To Water Pump) (Dev. L. 29.68")	7.4694	00	A/R	A/R	A/R	A/R	$66.06	0
	5148485	Tube, Exhaust Manifold Water Inlet (Block To Adaptor) (Dev. L. 18.17") (7.4596) (OBSOLETE)	7.4694	00	A/R	A/R	A/R	A/R	OBSOLETE	0
Details	8922560	Tube Assy., Exhaust Manifold Water Inlet (3/8" X 24.09")	7.4694	00	A/R	A/R	A/R	A/R	$25.33	0
	5100431	Tube, Exhaust Manifold Water Inlet (Valve Supple) (Dev. L. 22.75") (OBSOLETE)	7.4694	00	A/R	A/R	A/R	A/R	OBSOLETE	0
Details	5173022	Bracket, Exhaust Manifold Water Inlet Tube (5.5379)	7.4694	00	A/R	A/R	A/R	A/R	$3.44	113
Details	5130913	Bracket, Exhaust Manifold Water Inlet Tube (7.4594)	7.4694	00	A/R	A/R	A/R	A/R	$11.27	0
Details	5121182	Plug, 1/4" Pipe (2.4015)	7.4694	00	A/R	A/R	A/R	A/R	$0.58	2399
Details	5100808	Shaft Assy., Exhaust Manifold Water Inlet (7.4423)	7.4694	00	A/R	A/R	A/R	A/R	$160.89	0
Details	181361	Bolt, 3/8"-24 X 7/8" (12.9001)	7.4694	00	A/R	A/R	A/R	A/R	$0.91	129
Details	103321	Lockwasher, 3/8" (12.9200)	7.4694	00	A/R	A/R	A/R	A/R	$0.37	163
Details	103026	Nut, 3/8"-24 (12.9120)	7.4694	00	A/R	A/R	A/R	A/R	$0.42	1163
	CONTINUE TO NEXT PAGE FOR GROUP 7.4699
