Series 92 Detroit Diesel Engines

ACCESSORY DRIVE - groups: 1.7635 - 1.7650

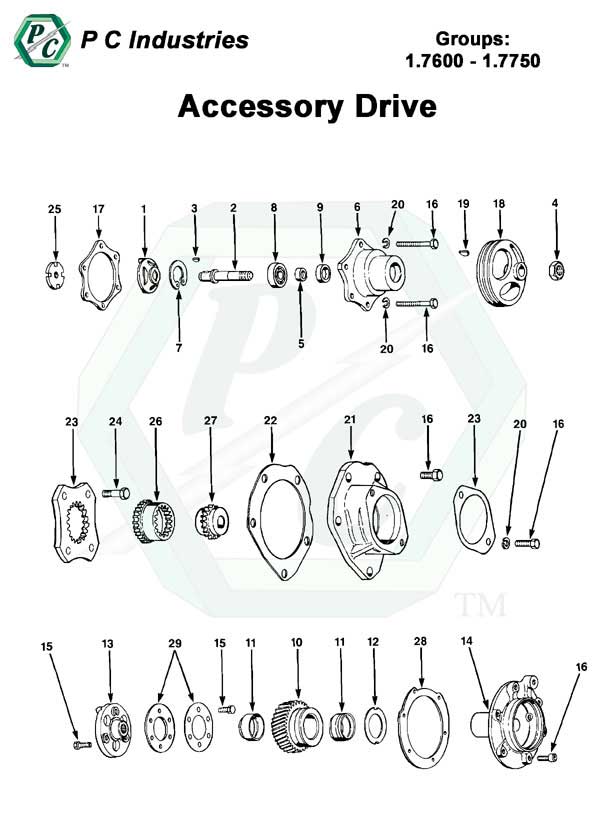

92_accessory_drive_pg49-54.jpg - Diagram
Page: 53
Part No. Description Group Ref#6V8V12V16V Price QOH
Details View Images 5139545 Coupling (Fiber WO/ Hole), Accessory Drive (Option Type # 91, 92,
138, 139, 143, 230, 320, 321 ,344, 350, 351, 366, 375)
1.763525 1 1 1 1$49.6635
Details View Images 5145282 Coupling (Fiber W/ Hole), Accessory Drive (9.1553)
(Option Type # 349,389)
1.763525 1 1 1 1$49.9211
Details View Images 5140982 Coupling, Accessory Drive (Air Compressor Drive) (12.4050)
(Option Type # 236, 278, 298, 301)
1.763500 1 1 1 1$166.8729
Details View Images 5135378 Coupling, Accessory Drive (12.4010) (Option Type # 277) 1.763500 1 1 1 1$355.881
Details View Images 5143616 Coupling, Accessory Drive (12.5010) (Option Type # 77, 177, 178,
179, 180, 255, 284, 285, 296, 299, 308, 311, 315, 338, 341, 361, 372,
383, 385,3 86, 397, 398)
1.763500 1 1 1 1$26.1771
Details View Images 5144866 Hub, Accessory Drive (12.4040)
(Option Type # 226, 230, 283, 286, 298, 301, 330, 384)
1.763526 1 1 1 1$43.407
Details View Images 5141773 Coupling, Accessory Drive Compressor Drive (12.4050)
(Option Type # 226, 230, 330, 378, 384)
1.763500 1 1 1 1$249.8652
Details View Images 5117920 Shaft, Accessory Drive (Option Type # 75, 232) 1.764000 1 1 1 1$153.2099
Details 5131130 Shaft, Accessory Drive (Option Type # 89, 92, 145, 146, 149, 291) 1.764002 1 1 1 1$311.5813
Details View Images 5117700 Bearing, Blower Drive Gear (3.4302) 1.764212 2 2 2 2$27.4351
Details View Images 8926293 Washer, Blower & Accessory Drive Gear Hub (3.4320) 1.764200 1 1 1 1$15.5343
Details 8926285 Lockwasher, Blower & Accessory Drive Gear (3.4340) 1.764200 1 1 1 1$2.5433
Details View Images 5117727 Locknut, Blower & Accessory Drive Gear (3.4330) 1.764200 1 1 1 1$15.4469
Details View Images 5123082 Hub, Accessory Drive Gear
(Option Type # 263, 302, 304, 320, 321, 326, 340, 350, 375, 389)
1.764313 1 1 1 1$27.1414
Details 5127670 Hub, Accessory Drive Gear (Option Type # 349) 1.764313A/RA/RA/RA/R$324.550
Details 5131402 Retainer Assy., Accessory Drive (Option Type # 89, 146, 296) 1.764506A/RA/RA/RA/R$429.5616
Details View Images 5131129 Retainer, Accessory Drive (Not Sold Separately) 1.764500 1 1 1 1$171.466
Details 9415285 Lockring, Accessory Drive Retainer Bearing (2.7470) 1.764507 1 1 1 1$3.916
Details View Images 23504528 Bearing, Accessory Drive (1.7655) 1.764508 1 1 1 1$61.4212
Details View Images 5131329 Seal, Accessory Drive(1.7660) 1.764509 1 1 1 1$8.5210
Details View Images 5131131 Spacer, Accessory Drive Seal (1.7665) 1.764500 1 1 1 1$50.026
Details View Images 8923063 Support Assy., Accessory Drive (Option Type # 263) 1.764514A/RA/RA/RA/R$347.541
Details View Images 145627 Pin, Dowel Tapered (3.4350) 1.764500 2 2 2 2$1.814
Details View Images 274889 Pin, 1/8" X 1/4" Spring (12.9270) 1.764500 1 1 1 1$0.852
Details View Images 5150829 Plug, 7/8" Cup (4.8001) 1.764500 1 1 1 1$1.029
Details View Images 9428477 Plug, 15/16' Cup (2.7340) 1.764500 1 1 1 1$0.7743
Details View Images 5152148 Washer, 3/8" X 9/16" Copper (2.4050) 1.764500A/RA/RA/RA/R$0.18793
Details View Images 5148810 Gasket, Accessory Drive Support (Option Type # 233, 277, 302,
304, 320, 321, 326, 350, 366, 375, 389)
1.764628 1 1 1 1$1.83392
Details View Images 5145243 Tube, Accessory Drive Oil Supply (Dev.L. 6.24") (12.5034) (Option
Type # 263 ,277, 302, 304, 320, 321, 326, 340, 350, 366, 375, 389)
1.764700 1 1 1 1$12.837
Details 8924380 Plug, 1/8" Pipe (12.9550) 1.764700A/RA/RA/RA/R$1.144538
Details View Images 8924216 Elbow, 3/8" Inv. Flare Tube (12.9480) 1.764700A/RA/RA/RA/R$12.612
Details View Images 8924170 Connector, 1/4" Inv. Flare Tube (12.9460) 1.764700A/RA/RA/RA/R$2.938
Details View Images 274621 Lockring, Accessory Drive (7.1545) 1.765007 1 1 1 1$4.486
Details 9415285 Lockring, Accessory Drive (2.7470) 1.765007 1 1 1 1$3.916
CONTINUE TO NEXT PAGE FOR GROUP 1.7655
