Series 92 Detroit Diesel Engines

VALVE TRAIN - groups: 1.8160 - 1.8370

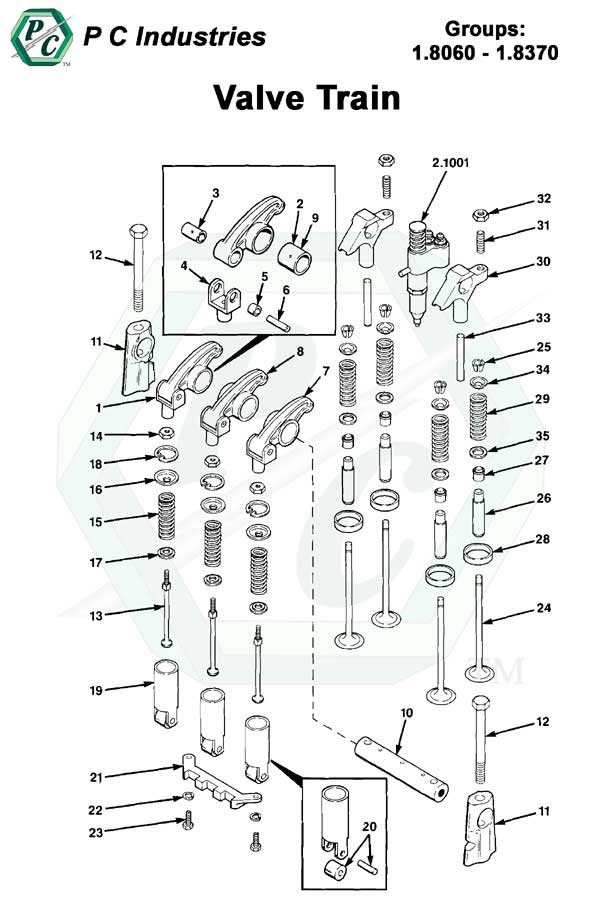

92_valve_train_pg55-56.jpg - Diagram
Page: 56
Part No. Description Group Ref#6V8V12V16V Price QOH
Details View Images 23500714 Shaft Assy., Rocker (6V & 8V DDEC Engines) 1.816010 6 8$29.26670
Details View Images 5151272 Plug, 11/32" X 1/4" 1.816000 6 8$1.64144
Details View Images 5103903 Bracket, Rocker Shaft 1.817011 4 4 8 8$22.343294
Details View Images 5150325 Bolt, Bracket Rocker Shaft 1.817012 4 4 8 8$7.053271
Details View Images 5128640 Rod, Push 1.818013 18 24 36 48$9.596068
Details View Images 5151601 Nut, Push Rod 5/16"-24 Lock 1.818014 18 24 36 48$0.406367
Details View Images 5108918 Spring, Push Rod 1.809015 18 24 36 48$3.533563
Details View Images 5108919 Seat, Push Rod Spring-Upper 1.820016 18 24 36 48$2.9748
Details View Images 5123250 Seat, Push Rod Spring-Lower 1.821017 18 24 36 48$0.856985
Details View Images 5150303 Retainer, Push Rod (Snap Ring) 1.825018 18 24 36 48$0.576604
Details View Images 8924439 Follower Assy., Cam 1.826019 18 24 36 48$33.0338
Details View Images 8923814 Roller Set, Cam Follower
(Set Includes Roller With Bushing & Pin) (1.8265)
1.826020 18 24 36 48$13.052738
Details View Images 8923814 Roller Set, Cam Follower (Set Includes Roller With Bushing & Pin)
(Bushing & Pin Not Available Separately)
1.826520 18 24 36 48$13.052738
Details View Images 5106413 Guide, Cam Follower 1.830021 6 8 12 16$14.982762
Details View Images 443603 Bolt, 1/4"-20 X 3/4" (12.9001) 1.830023 12 16 24 32$0.4595
Details View Images 103319 Lockwasher, 1/4" (12.9200) 1.830022 12 16 24 32$0.40284
Details View Images 5149771 Valve Kit, Exhaust Turbo & Non-Turbo (Includes Locks) 1.831000 24 32 48 64$19.08413
Details 5106136 Valve, Exhaust Turbo & Non-Turbo (Identification U) 1.831024A/RA/RA/RA/R$14.891249
Details View Images 5111337 Lock, Exhaust Valve Spring (1.8370) 1.831025 48 64 96 12$0.455579
Details View Images 5129919 Guide, Exhaust Valve 1.832026 24 32 48 64$2.281672
Details View Images 8921209 Seal Assy., Exhaust 1.832027 24 32 48 64$2.533122
Details View Images 5148490 Insert, Exhaust Valve (Std.) 1.833028 24 32 48 64$9.09110
Details View Images 5101315 Insert, Exhaust Valve (.010" O.S. O.D.) 1.833028A/RA/RA/RA/R$10.0044
Details View Images 5147347 Spring, Exhaust Valve (Single Or Double Yellow Stripe Or
Single Yellow & Single Blue Stripe)
1.834029 24 32 48 64$2.251538
Details View Images 5148491 Bridge, Exhause Valve 1.834330 12 16 24 32$64.382221
Details View Images 5129101 Screw, 5/16"-24 X 1" (Adjusting) 1.834331 12 16 24 32$2.1578
Details View Images 5151601 Nut, 5/16"-24 (1.8180) 1.834332 12 16 24 32$0.406367
Details View Images 5117564 Guide, Exhaust Valve Bridge 1.834533 12 16 24 32$5.0327
Details View Images 5117563 Cap, Exhaust Spring 1.835034 24 32 48 64$3.34919
Details View Images 5117562 Seat, Exhaust Valve Spring 1.836035 24 32 48 64$0.40156
Details View Images 5111337 Lock, Exhaust Valve Spring 1.837025 48 64 96 12$0.455579
CONTINUE TO NEXT PAGE FOR GROUP 1.8450
