Series 4000 Detroit Diesel Engines

FUEL LINES - groups 2.5210 - 2.5225

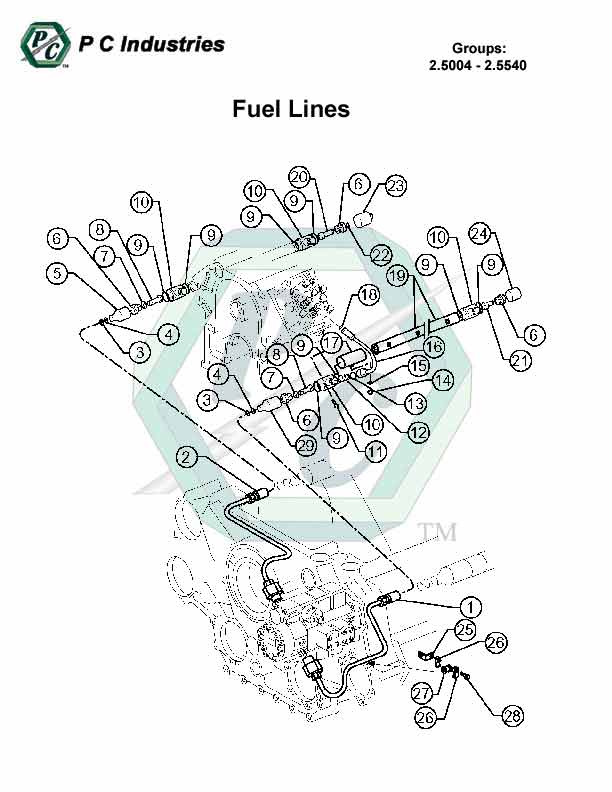

S4000-Pg62-72.jpg - Diagram
Page: 69
Part No. Description Group 8V12V16V20V Price QOH
Details 000908012003 Plug, M12x1.5 Threaded 2.5210A/RA/RA/RA/R$1.640
Details 000910012000 Plug, M12x1.5 2.5210A/RA/RA/RA/R$3.850
Details 11504986 Bolt, M8x1.25x14mm 2.5210A/RA/RA/RA/R$1.230
Details 304014008029 Bolt, M8x70 2.5210A/RA/RA/RA/R$0.590
Details 700223004001 Bolt, Banjo 2.5210A/RA/RA/RA/R$91.160
Details 000931010283 Bolt, M10x1.5x75 Hex 2.5210A/RA/RA/RA/R$2.010
Details View Images 007603012111 Ring, Copper Sealing 2.521016243248$1.740
Details 915001020003 Nut, M30x15 Union 2.5210A/RA/RA/RA/R$8.330
Details 735038012103 Hose, 12x400 Seawater Resistant 2.5219A/RA/RA/RA/R$52.840
Details 718363213002 Union 2.5219A/RA/RA/RA/R$23.880
Details 23540104 Tube, Right Fuel Return Manifold 2.5225A/RA/RA/RA/R$202.950
Details 23540105 Tube, Left Fuel Return Manifold 2.5225A/RA/RA/RA/R$643.330
Details View Images 23540106 Tube, Right Fuel Return Manifold 2.5225A/RA/RA/RA/R$299.060
Details 23540107 Tube, To Junction Block 2.5225A/RA/RA/RA/R$142.260
Details 23540334 Tube, T-Fitting To Junction Block 2.5225A/RA/RA/RA/R$332.810
Details 23540416 Tube, Fuel Junction Block To Heat Exch. 2.5225A/RA/RA/RA/R$110.860
Details 5240700438 Tube, 8V4000 Fuel Return Manifold 2.52252$218.300
Details 5240700538 Tube, 16V4000 Fuel Return Manifold 2.52252$367.270
Details 5240704232 Tube, Safety Valve Fuel Return
Superceded... Click 'Details' for replacement.
2.5225A/RA/RA/RA/R0
Details View Images 23540810 Tube, Safety Valve Fuel Return 2.5225A/RA/RA/RA/R$182.130
Details 5240704332 Tube, R.B. Fuel Return 2.5225A/RA/RA/RA/R$370.940
Details 5240704632 Tube, Reg. Return To HP Pump 2.5225A/RA/RA/RA/R$433.940
Details 5240704832 Tube, Reg. Valve On Return 2.5225A/RA/RA/RA/R$496.100
Details 5240705332 Tube, L.B. Fuel Return 2.5225A/RA/RA/RA/R$625.230
Details 5240705432 Tube, Crossover R.B. To L.B. Return 2.5225A/RA/RA/RA/R$312.360
5240705932 Tube, Fuel Monitor HP Pump R.B. (OBSOLETE) 2.5225A/RA/RA/RA/ROBSOLETE0
Details 5240706032 Tube, HP Fuel Return, L.B. 2.5225A/RA/RA/RA/R$213.900
Details 5240706132 Tube, Fuel Monitor HP Pump Conn. 2.5225A/RA/RA/RA/R$93.330
Details 5240707132 Tube, Fuel Return R.B. To Monitor 2.5225A/RA/RA/RA/R$158.790
Details 5240901076 Tube, Right Fuel Return Manifold 2.5225A/RA/RA/RA/R$947.360
Details 5240901176 Tube, Right Fuel Return Manifold 2.5225A/RA/RA/RA/R$788.590
Details 5240901276 Tube, Left Fuel Return Manifold 2.5225A/RA/RA/RA/R$1,224.610
Details 5260700238 Collector 2.5225A/RA/RA/RA/R$690.160
Details 5270700532 Fuel Line, Low Pressure 2.5225A/RA/RA/RA/R$408.950
Details 5280700832 Tube, Fuel Return 2.5225A/RA/RA/RA/R$278.320
Details 5280700932 Tube, Fuel Return 2.5225A/RA/RA/RA/R$237.390
GROUP 2.5225 CONTINUED ON NEXT PAGE.
