Series V 71 Detroit Diesel Engines

CYLINDER KITS USED WITH OPTION TYPE #'s 285, 368,
426, 598. - group: 1.6182

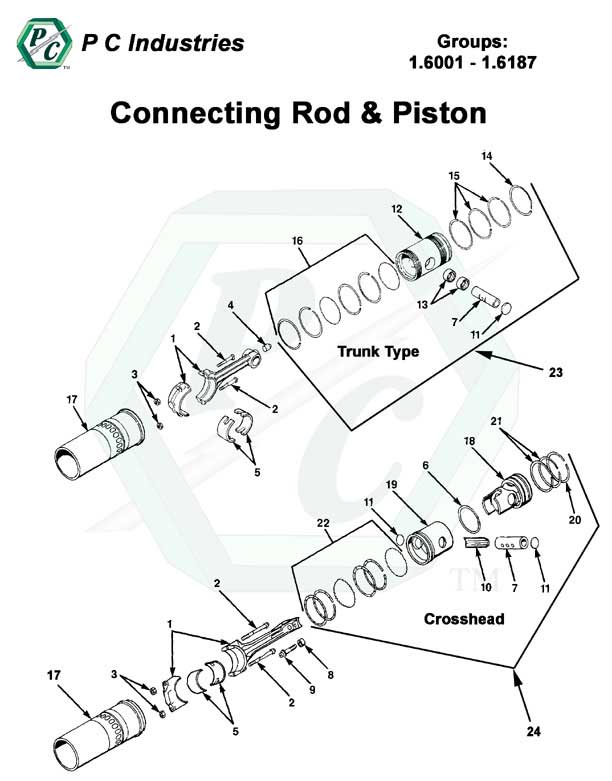

V71_con_rod_pg17-28.jpg - Diagram
Page: 24
Part No. Description Group Ref#6V8V12V16V Price QOH
All Cylinder Kits Below Are Used With Option Type #'s 285, 368, 426, 598.
Details View Images 23522507 Cylinder Kit (#2 Bore) (TA Auto & City Coach) (Crosshead)
(N70 Injectors & Above) (Wide Gap) (18.7:1)
1.618200A/RA/RA/RA/R$251.0038
Details View Images 23502024 Liner, Cylinder (.95" Port HT.) (#2 Bore) (1.6180) 1.6182171111$74.3438
Details View Images 23522509 Cylinder Kit (#3 Bore) (TA Auto & City Coach) (Crosshead)
(N70 Injectors & Above) (Wide Gap) (18.7:1)
1.618200A/RA/RA/RA/R$251.0048
Details 23502025 Liner, Cylinder (.95" Port HT.) (#3 Bore) (1.6180) 1.6182171111$74.7449
Details View Images 23522511 Cylinder Kit (#4 Bore) (TA Auto & City Coach) (Crosshead)
(N70 Injectors & Above) (Wide Gap) (18.7:1)
1.618200A/RA/RA/RA/R$267.370
Details View Images 23504935 Liner, Cylinder (.95" Port HT.) (.001" O.S.) (#4 Bore) (1.6180) 1.6182171111$87.311
Details 23522507-5 Cylinder Kit (.005" O.S.) (TA Auto & City Coach) (Crosshead)
(N70 Injectors & Above) (Wide Gap) (18.7:1)
1.618200A/RA/RA/RA/R$303.980
Details View Images 5107448 Liner, Cylinder (.95" Port HT.) (.005" O.S.) (1.6180)
Superceded... Click 'Details' for replacement.
1.61821711110
Details View Images 23522513 Cylinder Kit (.010" O.S.) (TA Auto & City Coach) (Crosshead)
(N70 Injectors & Above) (Wide Gap) (18.7:1)
1.618200A/RA/RA/RA/R$262.3132
Details 5107449 Liner, Cylinder (.95" Port HT.) (.010" O.S.) (1.6180) 1.6182171111$74.3440
Details View Images 23522515 Cylinder Kit (.020" O.S.) (TA Auto & City Coach) (Crosshead)
(N70 Injectors & Above) (Wide Gap) (18.7:1)
1.618200A/RA/RA/RA/R$361.74136
Details View Images 5107450 Liner, Cylinder (.95" Port HT.) (.020" O.S.) (1.6180) 1.6182171111$215.760
Sub Components Listed Below Are Included In Each Cylinder Kit Above
Details View Images PC-LCK-22507 Linerless Cylinder Kit, Crosshead (TA Auto & City Coach)
(N70 Injectors & Above) (Wide Gap) (18.7:1)
1.618224A/RA/RA/RA/R$255.08136
Details 23522497 Kit, Piston (18.7:1) (1.6110) 1.6182001111$177.350
Details 23522026 Crown, Piston (18.7:1) (1.6110) 1.6182181111$75.540
Details View Images 23501687 Bearing, Piston Pin (Slipper Type) (1.6142) 1.6182101111$17.66566
Details View Images 5180250 Retainer, Piston Pin (1.6150) 1.6182112222$0.71316
Details View Images 8922221 Seal Ring, Crosshead (1.6106) 1.6182061111$6.3299
Details View Images 23522070 Skirt, Piston (1.6110) 1.6182191111$58.984
Details View Images 5101120 Pin, Piston (1.6140) 1.6182071111$19.6016
Details View Images 23522954 Ring Set, Piston (Wide Gap Fire Ring) (1.6115) 1.6182001111$53.92130
Details View Images 8924083 Ring, Fire (1.6120)
Superceded... Click 'Details' for replacement.
1.618220111116
Details View Images 8926351 Ring, Compression (1.6120) 1.6182212222$4.6926
Details View Images 23522534 Ring Set, Oil Control (For One Groove) (1.6130) 1.6182222222$21.5114
CONTINUE TO NEXT PAGE FOR CYLINDER KITS IN GROUP 1.6182
