Series 149 Detroit Diesel Engines

LIMITING SPEED GOVERNOR - group: 2.7330

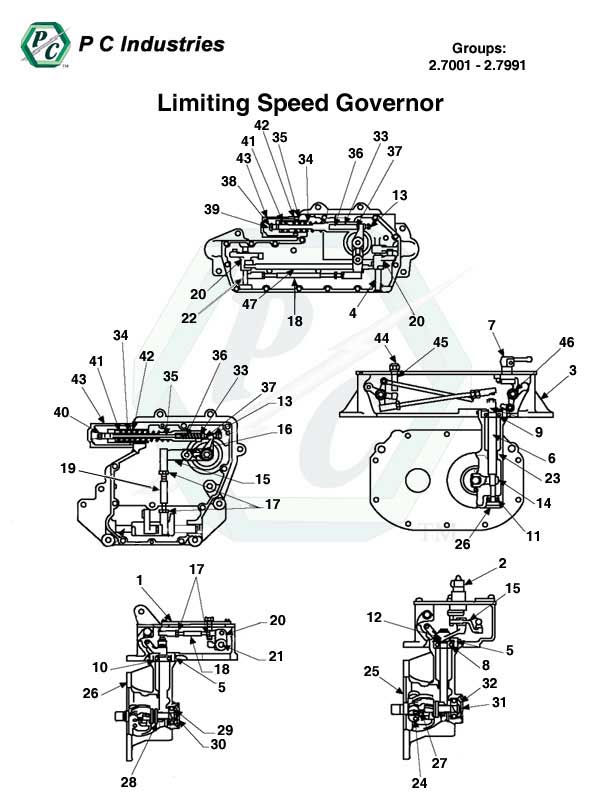

2.7001 - 2.7991 Limiting Speed Governor.jpg - Diagram
Page: 105
Part No. Description Group Ref#8V12V16V20V Price QOH
Details 5142725 Carrier & Weight Assembly; (Option Type #"s 968, 999,
1132, 1205, 1206, 1858, 1859, 1860)
2.73302411$956.320
Details 5142934 Shaft & Carrier Assembly 2.73300011$857.910
Details 5142724 Shaft 2.73300011$343.550
Details View Images 5147913 Weight Assembly 2.73300033$99.263
Details View Images 5151487 Washer, 0.384" I.D. X 11/16" O.D. X 0.033" Thick; (2.7430) 2.7330001212$0.6690
Details View Images 5178581 Ring, Retainer, 0.347" I.D. X 0.048" X 0.048" Thick; (2.7430) 2.73300066$0.3483
Details View Images 5185154 Pin; Ring Groove 2.73300033$10.2927
Details View Images 5147532 Carrier & Weight Assembly; (Option Type #"s 1000, 1133,
1211, 1864)
2.73302411$871.291
5142932 Shaft & Carrier Assembly 2.733000110
Details 5142724 Shaft 2.73300011$343.550
Details 5117737 Weight; High Speed
Superceded... Click 'Details' for replacement.
Replaced by 2 items.
2.7330003310
Details View Images 5117738 Weight; High Speed 2.73300033$56.9326
Details View Images 5144028 Screw; (2.7400) 2.73300033$2.52108
Details View Images 8924825 Weight; Low Speed 2.73300033$116.9212
Details 5188606 Weight; Low Speed
Superceded... Click 'Details' for replacement.
Replaced by 3 items.
2.7330003310
Details View Images 5151487 Washer, 0.384" I.D. X 11/16" O.D. X 0.033" Thick; (2.7430) 2.73300033$0.6690
Details View Images 5178581 Ring, Retainer, 0.347" I.D. X 0.048" X 0.048" Thick; (2.7430) 2.73300066$0.3483
Details View Images 5183632 Pin; (Requires Set Screw) 2.73300033$147.100
Details View Images 5185153 Pin; Ring Groove 2.73300033$34.7491
Details 5147533 Carrier & Weight Assembly˙; (Option Type #"s 1212, 1863, 2024) 2.73302411$861.870
5142933 Shaft & Carrier Assembly (OBSOLETE) 2.73300011OBSOLETE0
Details 5142936 Shaft 2.73300011$269.570
Details 5117737 Weight; High Speed
Superceded... Click 'Details' for replacement.
Replaced by 2 items.
2.7330003310
Details View Images 5117738 Weight; High Speed 2.73300033$56.9326
Details View Images 5144028 Screw; (2.7400) 2.73300033$2.52108
Details 5188606 Weight; Low Speed
Superceded... Click 'Details' for replacement.
Replaced by 3 items.
2.7330003310
Details View Images 5151487 Washer, 0.384" I.D. X 11/16" O.D. X 0.033" Thick; (2.7430) 2.73300033$0.6690
Details View Images 5178581 Ring, Retainer, 0.347" I.D. X 0.048" X 0.048" Thick; (2.7430) 2.73300066$0.3483
Details View Images 5183632 Pin; (Requires Set Screw) 2.73300033$147.100
Details View Images 5185153 Pin; Ring Groove 2.73300033$34.7491
CONTINUE TO NEXT PAGE FOR GROUP 2.7340
