Series 149 Detroit Diesel Engines

AIR INLET HOUSING - groups: 3.3010 - 3.3040

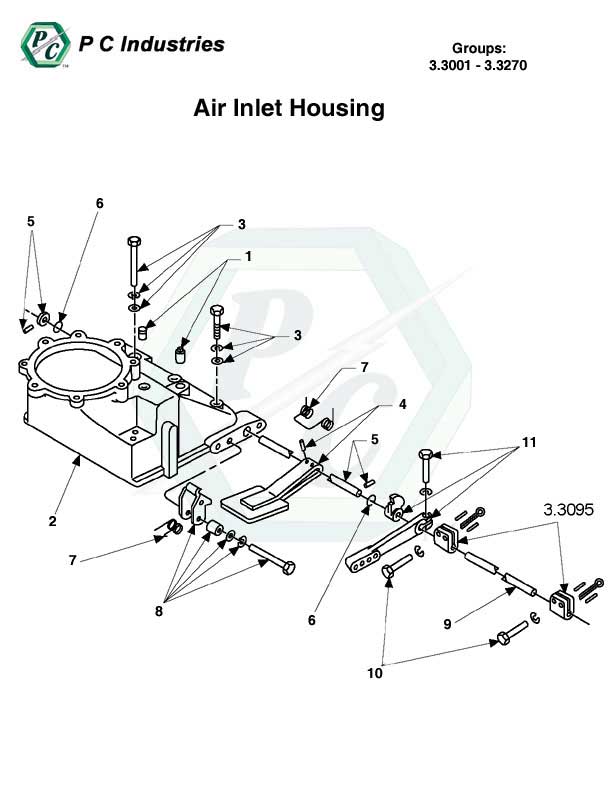

3.3001 - 3.2070 Air Inlet Housing.jpg - Diagram
Page: 147
Part No. Description Group Ref#8V12V16V20V Price QOH
Details View Images 23509404 Gasket 3.301000A/RA/RA/RA/R$6.8988
Details View Images 23509405 Gasket 3.301000A/RA/RA/RA/R$4.9862
Details View Images 5142907 Gasket, 12V; (8 Drill Holes); (Option Type #'s 387 & 566) 3.3010002$5.889
Details 5141838 Gasket, 16V; (8 Drill Holes); (3.5423); (Option Type #452) 3.3010002$4.958
Details 23522414 Gasket, Air Inlet Adaptor; (Option Type #936) 3.3010004444$69.390
Details View Images 5141256 Gasket, Screen, 12V; (3.4025); (Option Type #'s 565 & 566) 3.3010002$21.8810
Details 5187576 Gasket, Screen, 16V; (3.4025); (Option Type #'s 561 & 567) 3.3010002$35.1030
Details View Images 23511894 Seal; (Option Type #'s 464, 568, 646, 647, 650, 876, 891, 939) 3.3010002222$12.135
Details View Images 23511895 Seal Blo. Bp. Adaptor, 23.72 X 0.098, Orange 3.301000A/RA/RA/RA/R$21.5226
Details 23511896 Seal Ring; (Orange Stripe); (Option Type #'s 827, 834, 851,
879, 927, 937)
3.3010002222$33.809
Details 23511897 Seal Ring; (Orange Stripe); (Option Type #"s 822, 824, 848,
879, 924, 936, 937)
3.301000A/RA/RA/RA/R$41.9119
Details 5145456 Plate, 12V; (Option Type #"s 376, 387, 741, 751, 763, 786,
843, 845, 850)
3.3020002$182.220
Details View Images 5145458 Plate, 16V; (Option Type #'s 429, 452, 748, 783, 799) 3.3020002$76.502
5146247 Plate, 12V; (Option Type #455) 3.30200020
Details View Images 5145457 Gasket, 12V; (Option Type #'s 376, 387, 455, 741, 751, 763,
786, 843, 845, 850)
3.3030002$5.066
Details 5145459 Gasket, 16V; (Option Type #'s 429, 452, 748, 783, 799) 3.3030002$3.6616
Details 5146479 Valve; (Option Type #'s 464, 465, 543, 589) 3.304004A/RA/RA/RA/R$17.010
Details 5140290 Valve, 12V; (Option Type #"s 376, 387, 455, 751, 763, 786,
843, 845, 850)
3.3040042$91.890
Details 5140712 Valve, 16V; (Option Type #'s 429, 452, 748, 783, 799) 3.3040042$144.490
Details 5141410 Valve, 16V; (Option Type #'s 429, 452, 748, 783, 799) 3.3040042$176.830
Details View Images 8921068 Valve, 16V 3.304004A/R$161.700
Details 5146481 Lever, Air Inlet Housing Valve 3.304004A/RA/RA/RA/R$214.240
5146525 Bolt, 3/8"-16 X 1.25"; (Knurled) (OBSOLETE) 3.304004A/RA/RA/RA/ROBSOLETE0
Details 186629 Bolt, 5/16"-18 X 1" 3.304004A/RA/RA/RA/R$0.3751
Details View Images 8928537 Key, 3/32" X 1/2"; Woodruff 3.304004A/RA/RA/RA/R$0.3997
Details View Images 103320 Lockwasher, 5/16" 3.304004A/RA/RA/RA/R$0.43495
Details 443321 Nut, 3/8"-16 Lock; (12.9140) 3.304004A/RA/RA/RA/R$2.180
Details View Images 273436 Pin, 1/8" X 11/16" Roll; (12.9300) 3.304004A/RA/RA/RA/R$0.6126
Details 5108511 Washer, 3/8"; (1.1020) 3.304004A/RA/RA/RA/R$4.250
CONTINUE TO NEXT PAGE FOR GROUP 3.3050
