Series 149 Detroit Diesel Engines

TURBOCHARGER - group: 3.5001

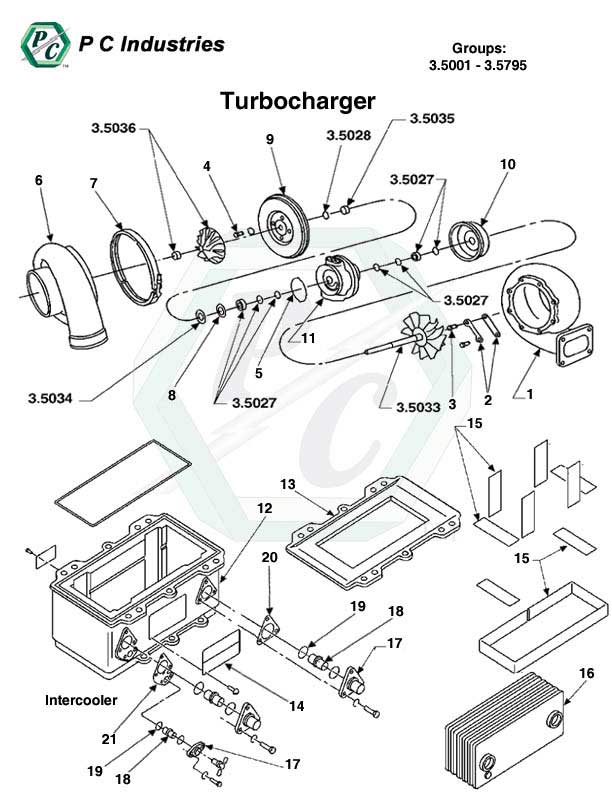

3.5001 - 3.5795 Turbotcharger.jpg - Diagram
Page: 158
Part No. Description Group Ref#8V12V16V20V Price QOH
Details View Images 23507253 Turbocharger Assembly, 1.23 A/R; (TV8403); (Option Type
#'s 1223, 1289, 1318, 1325, 1345, 1350, 1352, 1375, 1388,
1394, 1433, 1434, 1435, 1438, 1471, 1472, 1474, 1475,
1478, 1479, 1485, 1487, 1499, 1514, 1598, 1606, 1684)
Superceded... Click 'Details' for replacement.
3.500100A/RA/RA/RA/R1
Details View Images 23517237 Housing 3.5001011111$1,202.762
Details 173639 Screw, Drive, 0.073" X 1/4" 3.5001002222$0.510
Details 23503754 Screw, M4 X 10.0mm 3.5001003333$1.560
Details View Images 23507255 Housing & Rotating Assembly 3.5001001111$4,245.5526
Details View Images 5198936 Ring, Seal 3.5001051111$9.3471
Details 8925742 Housing 3.5001111111$886.036
Details 8925748 Bearing, Thrust; (Outboard) 3.5001081111$271.110
Details View Images 8925750 Bolt, 1/4"-20 X 1" 3.5001041111$1.8238
Details 8925757 Shroud, Wheel 3.5001101111$280.810
Details 8928658 Backplate Assembly 3.5001094444$736.840
Details View Images 23504469 Housing 3.5001061111$1,184.616
Details View Images 23505492 Clamp; (Vee Band) 3.5001001111$103.0513
Details 23505493 Clamp; (Vee Band) 3.5001071111$114.290
Details View Images 5149163 Locknut, 1/4"-28 3.5001002222$9.382
GROUP 3.5001 CONTINUED ON NEXT PAGE
