Series 149 Detroit Diesel Engines

TURBOCHARGER - groups: 3.5305 - 3.5325

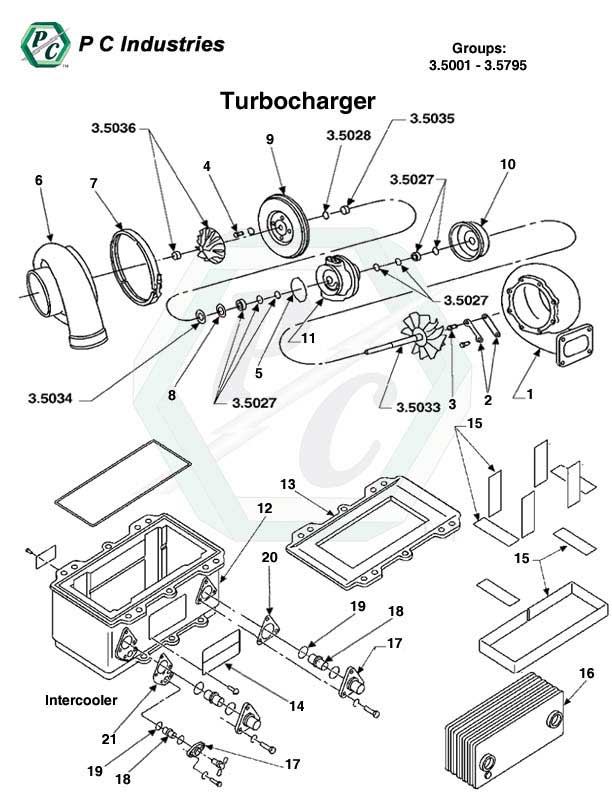

3.5001 - 3.5795 Turbotcharger.jpg - Diagram

Page: 168

Information Abbreviations Alphabetical Index Group Index

	Part No.	Description	Group	Ref#	8V	12V	16V	20V	Price	QOH
Details	23509966	Collar, Insulation Exhaust Manifold Flange; (Option Type #1332)	3.5305	00	4	4	4	4	$1,305.71	0
Details	103321	Lockwasher, 3/8"	3.5305	00	A/R	A/R	A/R	A/R	$0.17	86
Details	103325	Lockwasher, 5/8"	3.5305	00	A/R	A/R	A/R	A/R	$0.54	23
Details	9411981	Nut, 3/8"-24 Lock; (12.9120)	3.5305	00	A/R	A/R	A/R	A/R	$4.34	100+
Details	5103952	Nut, 5/8"-18 Special	3.5305	00	A/R	A/R	A/R	A/R	$3.28	52
Details	23501697	Plug	3.5305	00	A/R	A/R	A/R	A/R	$56.53	7
Details	5130488	Stud, 3/8"-16/24 X 1.88" L.; (5.2020)	3.5305	00	A/R	A/R	A/R	A/R	$2.33	100+
Details	23503411	Stud, 3/8"-16/24 X 1.88"; (5.2020)	3.5305	00	A/R	A/R	A/R	A/R	$11.68	17
	8927970	Stud, 5/8"-18 X 2" (OBSOLETE)	3.5305	00	A/R	A/R	A/R	A/R	OBSOLETE	0
Details	23516627	Tube & Flange Assembly, 21.00" L., Turbo Oil Drain; W/Bea.	3.5305	00	A/R	A/R	A/R	A/R	$88.64	3
Details	5142070	Flange	3.5305	00	1	1	1	1	$320.66	0
Details	5131433	Washer, 0.41" X 0.81" X 0.1345"; (1.5001)	3.5305	00	A/R	A/R	A/R	A/R	$6.61	100+
Details	5181521	Washer, 1/4"; (2.9335)	3.5305	00	A/R	A/R	A/R	A/R	$0.97	2
Details	23512114	Gasket	3.5307	00	A/R	A/R	A/R	A/R	$19.14	37
Details	23517774	Gasket, Exhaust Outlet Adaptor	3.5307	00	A/R	A/R	A/R	A/R	$22.58	0
Details	8929529	Gasket, Turbo Exhaust Inlet	3.5307	00	A/R	A/R	A/R	A/R	$4.32	49
Details	23517076	Gasket, Turbo Exhaust Inlet; S50G; (Option Type #1766)	3.5307	00	4	4	4	4	$68.50	25
	8921285	Adaptor, 10" (OBSOLETE)	3.5324	00	A/R	A/R	A/R	A/R	OBSOLETE	0
Details	23504524	Adaptor, 10"	3.5324	00	A/R	A/R	A/R	A/R	$3,655.81	0
Details	5146883	Adaptor, 11.88" B.C., 16V Superceded... Click 'Details' for replacement. Replaced by 2 items.	3.5324	00			A/R			0
Details	23504194	Adaptor, 6.58" B.C., 16V	3.5324	00			A/R		$590.03	0
Details	5141074	Adaptor, 7.88" B.C.; (Sd184) Superceded... Click 'Details' for replacement.	3.5324	00	A/R	A/R	A/R	A/R		6
Details	8921284	Adaptor, 8"	3.5324	00	A/R	A/R	A/R	A/R	$1,437.99	0
Details	5145589	Adaptor, 9.88" B.C.; 12V & 16V	3.5324	00		A/R	A/R		$931.57	0
Details	23511644	Elbow, 8"	3.5324	00	A/R	A/R	A/R	A/R	$847.16	0
Details	23514042	Ring Seal Step Joint, Turbo Exhaust Outlet	3.5324	00	A/R	A/R	A/R	A/R	$22.77	24
Details	23522004	Turbo Exhaust Outlet; (Option Type #1766)	3.5324	00	2	2	2	2	$709.96	0
Details	23516925	Elbow & Seal Assembly; 1 5/16-12; (Option Type #1525)	3.5325	00	16	16	16	16	$56.25	0
Details	23501147	Gasket	3.5325	00	A/R	A/R	A/R	A/R	$22.75	18
Details	23512114	Gasket	3.5325	00	A/R	A/R	A/R	A/R	$19.14	37
Details	23514042	Ring Seal Step Joint, Turbo Exhaust Outlet	3.5325	00	A/R	A/R	A/R	A/R	$22.77	24
Details	23522008	Ring Seal, Exhaust	3.5325	00	A/R	A/R	A/R	A/R	$20.78	0
	CONTINUE TO NEXT PAGE FOR GROUP 3.5330
