Series 149 Detroit Diesel Engines

TURBOCHARGER - groups: 3.5430 - 3.5500

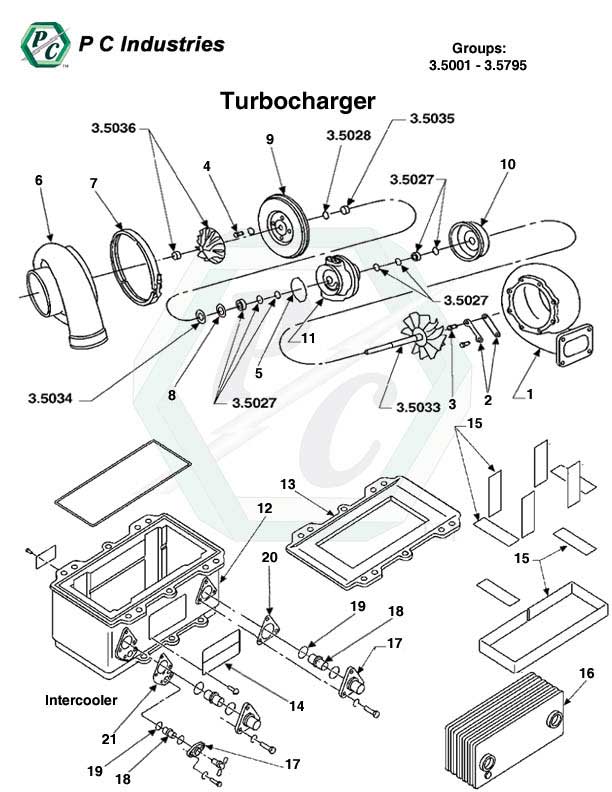

3.5001 - 3.5795 Turbotcharger.jpg - Diagram

Page: 179

Information Abbreviations Alphabetical Index Group Index

	Part No.	Description	Group	Ref#	8V	12V	16V	20V	Price	QOH
Details	5166565	Bracket; (9.1591)	3.5430	00	A/R	A/R	A/R	A/R	$3.98	0
Details	8927580	Bolt 3/8"-16 X 1.015"; (12.9001)	3.5430	00	A/R	A/R	A/R	A/R	$4.55	95
Details	8927579	Bolt, 3/8"-16 X 0.88"; W/Seal Patch; (12.9001)	3.5430	00	A/R	A/R	A/R	A/R	$1.58	100+
Details	179839	Bolt, 3/8"-16 X 1"	3.5430	00	A/R	A/R	A/R	A/R	$0.69	15
Details	186622	Bolt, 3/8"-16 X 1.25"	3.5430	00	A/R	A/R	A/R	A/R	$1.33	41
Details	8924868	Bolt, 3/8"-16 X 1.25"; (12.9001)	3.5430	00	A/R	A/R	A/R	A/R	$4.05	15
Details	8927583	Bolt, 3/8"-16 X 1.38"; (12.9001)	3.5430	00	A/R	A/R	A/R	A/R	$2.85	9
Details	181361	Bolt, 3/8"-24 X 7/8"	3.5430	00	A/R	A/R	A/R	A/R	$0.93	100+
Details	179816	Bolt, 5/16"-18 X 0.75"	3.5430	00	A/R	A/R	A/R	A/R	$0.55	13
Details	5138870	Clamp	3.5430	00	A/R	A/R	A/R	A/R	$9.82	3
Details	5141723	Clip, 1.5" Tube, 3/8" Bolt; (4.1522)	3.5430	00	A/R	A/R	A/R	A/R	$11.61	8
Details	672772	Clip, 1.56" Diameter, 1/2" Bolt; (4.8180)	3.5430	00	A/R	A/R	A/R	A/R	$7.16	12
Details	103321	Lockwasher, 3/8"	3.5430	00	A/R	A/R	A/R	A/R	$0.17	100+
Details	103320	Lockwasher, 5/16"	3.5430	00	A/R	A/R	A/R	A/R	$0.07	100+
Details	102635	Nut, 3/8"-16	3.5430	00	A/R	A/R	A/R	A/R	$0.16	9
Details	103026	Nut, 3/8"-24	3.5430	00	A/R	A/R	A/R	A/R	$0.97	100+
Details	120376	Nut, 5/16"-18	3.5430	00	A/R	A/R	A/R	A/R	$2.08	24
Details	5163906	Spacer, 15/32" X 1/4"13/16"; (7.1598)	3.5430	00	A/R	A/R	A/R	A/R	$10.04	0
Details	103341	Washer, 3/8"	3.5430	00	A/R	A/R	A/R	A/R	$0.40	100+
Details	186628	Bolt, 3/8"-16 X 1.5"	3.5431	00	A/R	A/R	A/R	A/R	$0.94	15
Details	454906	Bolt, 3/8"-16 X 1.5"; (12.9001)	3.5431	00	A/R	A/R	A/R	A/R	$13.63	5
Details	8927584	Bolt, 3/8"-16 X 1.515" Hex. Head; (12.9001)	3.5431	00	A/R	A/R	A/R	A/R	$9.41	0
Details	103321	Lockwasher, 3/8"	3.5431	00	A/R	A/R	A/R	A/R	$0.17	100+
Details	5146051	Shield; Return Hose	3.5431	00	A/R	A/R	A/R	A/R	$42.87	10
Details	5145933	Shield; Supply Hose	3.5431	00	A/R	A/R	A/R	A/R	$53.56	0
	5147184	Shield; Supply Hose (OBSOLETE)	3.5431	00	A/R	A/R	A/R	A/R	OBSOLETE	0
Details	23500795	Shield; Supply Hose	3.5431	00	A/R	A/R	A/R	A/R	$83.74	2
Details	5196119	Spacer, 13/32" I.D. X 7/8" O.D. X 0.38" Thick; (3.4001)	3.5431	00	A/R	A/R	A/R	A/R	$8.70	18
Details	103341	Washer, 3/8"	3.5431	00	A/R	A/R	A/R	A/R	$0.40	100+
Details	23516632	Elbow Assembly, Turbo Oil Drain; 8V; 1" Tube	3.5500	00	A/R	A/R	A/R	A/R	$299.63	0
Details	5139997	Plug, 7/8" Cup; (1.2001)	3.5500	00	1	1	1	1	$2.42	100+
	23505935	Hose Assembly	3.5500	00	A/R	A/R	A/R	A/R		0
Details	CAAA0470	Hose Assembly, #6 X 50.64" L.	3.5500	00	1	1	1	1	$171.57	0
	GROUP 3.5500 CONTINUED ON NEXT PAGE
