Series 149 Detroit Diesel Engines

CYLINDER KIT USED WITH OPTION TYPE #'s 379, 399,
438, 447. - group: 1.6182

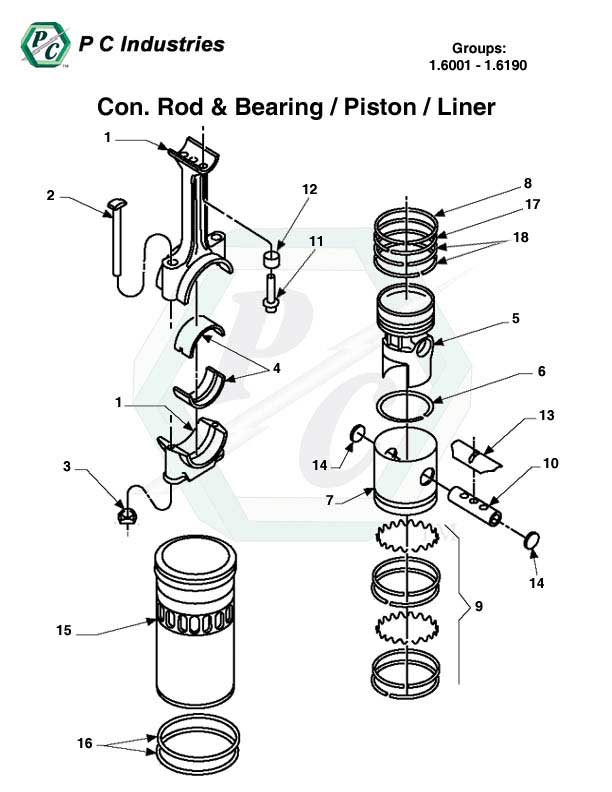

1.6001 - 1.6190 Con Rod and Bearing - Piston - Liner.jpg - Diagram

Page: 30

Information Abbreviations Alphabetical Index Group Index

	Part No.	Description	Group	Ref#	8V	12V	16V	20V	Price	QOH
	Cylinder Kit Components Listed Below Are Used With Option Type #379.
Details	23502390	Crown, Piston; (16:1); Narrow Fire Ring	1.6182	05	1	1	1	1	$620.17	34
Details	8928932	Ring Set	1.6182	00	1	1	1	1	$329.30	100+
Details	5148334	Ring, Fire	1.6182	08	1	1	1	1	$61.16	84
Details	5148277	Ring, Compression; (2nd Groove)	1.6182	17	1	1	1	1	$36.09	1
Details	5140256	Ring, Compression; (3rd & 4th Grooves)	1.6182	18	2	2	2	2	$39.46	28
Details	8926909	Oil Ring Kit	1.6182	00	1	1	1	1	$136.54	41
Details	5138135	Liner, Std.	1.6182	15	A/R	A/R	A/R	A/R	$615.86	84
Details	5149060	Liner, .002 O.S.	1.6182	15	A/R	A/R	A/R	A/R	$586.71	3
Details	23502356	Liner, Std.	1.6182	15	A/R	A/R	A/R	A/R	$613.39	97
Details	23509951	Liner, .002 O.S.	1.6182	15	A/R	A/R	A/R	A/R	$600.11	0
Details	23523189	Cylinder Installation Kit	1.6182	00	1	1	1	1	$953.90	100+
Details	8924099	Seal Ring	1.6182	06	1	1	1	1	$29.44	95
Details	5141126	Spacer	1.6182	12	2	2	2	2	$5.89	100+
Details	8926002	Piston Pin	1.6182	10	1	1	1	1	$304.72	45
Details	23504149	Bolts	1.6182	02	2	2	2	2	$6.27	100+
Details	23520852	Slipper Bearing	1.6182	13	1	1	1	1	$101.02	98
Details	5101323	Retainer	1.6182	14	2	2	2	2	$5.89	100+
Details	5101198	Seal Ring	1.6182	16	2	2	2	2	$19.33	81
Details	5144912	Skirt	1.6182	07	1	1	1	1	$429.21	1
	Cylinder Kit Components Listed Below Are Used With Option Type #'s 399, 438, 447.
Details	23502390	Crown, Piston; (16:1); Narrow Fire Ring	1.6182	05	1	1	1	1	$620.17	34
Details	8928932	Ring Set	1.6182	00	1	1	1	1	$329.30	100+
Details	5148334	Ring, Fire	1.6182	08	1	1	1	1	$61.16	84
Details	5148277	Ring, Compression; (2nd Groove)	1.6182	17	1	1	1	1	$36.09	1
Details	5140256	Ring, Compression; (3rd & 4th Grooves)	1.6182	18	2	2	2	2	$39.46	28
Details	8926909	Oil Ring Kit	1.6182	00	1	1	1	1	$136.54	41
Details	23502356	Liner, Std.	1.6182	15	A/R	A/R	A/R	A/R	$613.39	97
Details	23509951	Liner, .002 O.S.	1.6182	15	A/R	A/R	A/R	A/R	$600.11	0
Details	23523189	Cylinder Installation Kit	1.6182	00	1	1	1	1	$953.90	100+
Details	8924099	Seal Ring	1.6182	06	1	1	1	1	$29.44	95
Details	5141126	Spacer	1.6182	12	2	2	2	2	$5.89	100+
Details	8926002	Piston Pin	1.6182	10	1	1	1	1	$304.72	45
Details	23504149	Bolts	1.6182	02	2	2	2	2	$6.27	100+
Details	23520852	Slipper Bearing	1.6182	13	1	1	1	1	$101.02	98
Details	5101323	Retainer	1.6182	14	2	2	2	2	$5.89	100+
Details	5101198	Seal Ring	1.6182	16	2	2	2	2	$19.33	81
Details	5144912	Skirt	1.6182	07	1	1	1	1	$429.21	1
	GROUP 1.6182 CONTINUED ON NEXT PAGE
