Series 149 Detroit Diesel Engines

CYLINDER KIT USED WITH OPTION TYPE #'s 192, 195,
196, 197, 200, 220, 257, 354, 382, 383, 384, 391, 390, 605.
- group: 1.6182

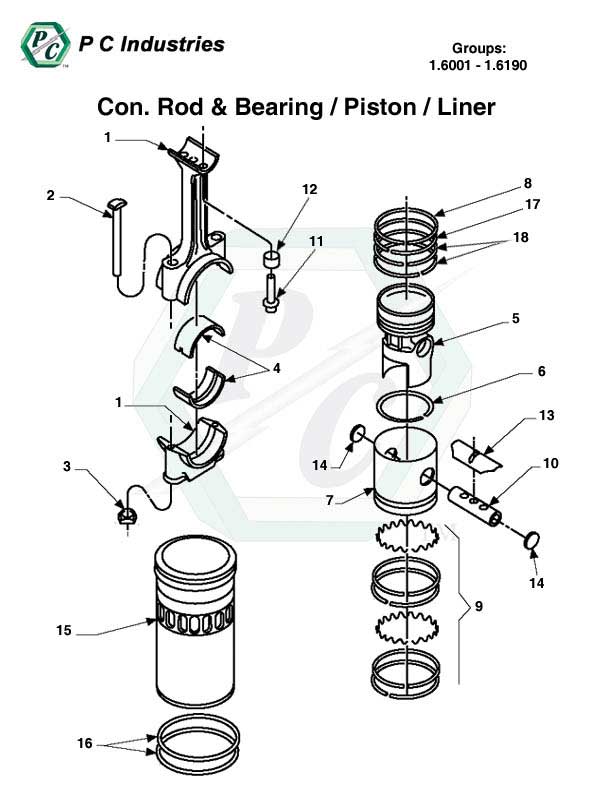

1.6001 - 1.6190 Con Rod and Bearing - Piston - Liner.jpg - Diagram
Page: 31
Part No. Description Group Ref#8V12V16V20V Price QOH
Cylinder Kit Components Listed Below Are Used With Option Type #'s 390, 605.
Details 23502390 Crown, Piston; (16:1); Narrow Fire Ring 1.6182051111$362.1452
Details View Images 23501524 Ring Set 1.6182001111$162.4515
Details 8925989 Ring, Fire 1.6182081111$46.3617
Details View Images 5148277 Ring, Compression; (2nd Groove) 1.6182171111$39.782
Details 5140256 Ring, Compression; (3rd & 4th Grooves) 1.6182182222$17.6853
Details View Images 5138135 Liner, Std. 1.618215A/RA/RA/RA/R$249.6192
Details View Images 5149060 Liner, .002 O.S. 1.618215A/RA/RA/RA/R$535.444
Details 23523189 Cylinder Installation Kit 1.6182001111$433.02115
Details 8924099 Seal Ring 1.6182061111$14.67104
Details View Images 5141126 Spacer 1.6182122222$9.15607
Details View Images 8926002 Piston Pin 1.6182101111$148.4927
Details 23504149 Bolts 1.6182022222$5.06108
Details View Images 23520852 Slipper Bearing 1.6182131111$37.12106
Details View Images 5101323 Retainer 1.6182142222$3.42169
Details View Images 5101198 Seal Ring 1.6182162222$9.5761
Details View Images 5144912 Skirt 1.6182071111$216.822
The Following Cylinder Kit Is Used With Option Type #'s 145, 192, 195, 196, 197,
200, 220, 257, 354, 382, 383, 384, 391.
Details 5149527 Cylinder Kit, Turbo-Intercooled; 16:1; Narrow Top Ring
(Low Sulfur Fuel)
Superceded... Click 'Details' for replacement.
Replaced by 4 items.
1.618200A/RA/RA/RA/R52
Details 23502390 Crown, Piston; (16:1); Narrow Fire Ring 1.6182051111$362.1452
Details View Images 8928932 Ring Set 1.6182001111$119.53176
Details View Images 5148334 Ring, Fire 1.6182081111$27.7861
Details View Images 5148277 Ring, Compression; (2nd Groove) 1.6182171111$39.782
Details 5140256 Ring, Compression; (3rd & 4th Grooves) 1.6182182222$17.6853
Details View Images 8926909 Oil Ring Kit 1.6182001111$47.3318
Details View Images 5138135 Liner, Std. 1.618215A/RA/RA/RA/R$249.6192
Details View Images 5149060 Liner, .002 O.S. 1.618215A/RA/RA/RA/R$535.444
Details 23523189 Cylinder Installation Kit 1.6182001111$433.02115
Details 8924099 Seal Ring 1.6182061111$14.67104
Details View Images 5141126 Spacer 1.6182122222$9.15607
Details View Images 8926002 Piston Pin 1.6182101111$148.4927
Details 23504149 Bolts 1.6182022222$5.06108
Details View Images 23520852 Slipper Bearing 1.6182131111$37.12106
Details View Images 5101323 Retainer 1.6182142222$3.42169
Details View Images 5101198 Seal Ring 1.6182162222$9.5761
Details View Images 5144912 Skirt 1.6182071111$216.822
GROUP 1.6182 CONTINUED ON NEXT PAGE
