Series 149 Detroit Diesel Engines

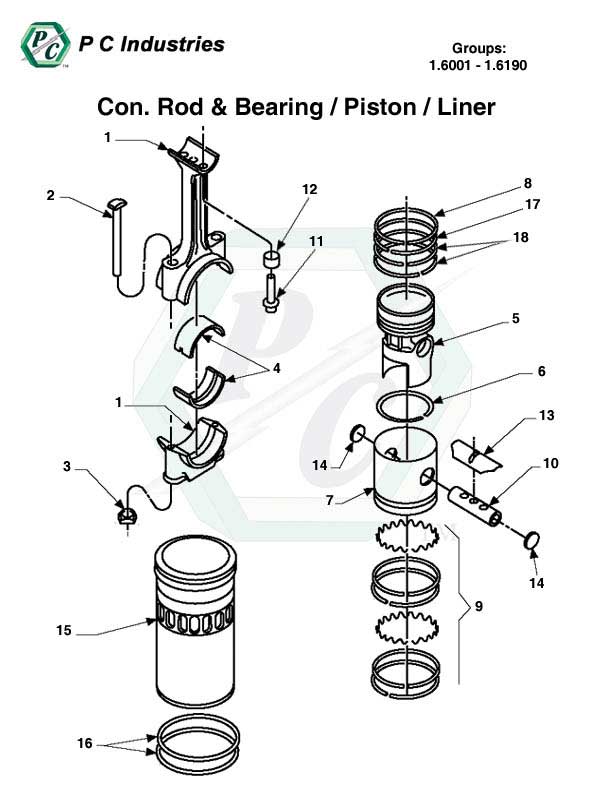

CYLINDER KIT USED WITH OPTION TYPE #'s 508 & 519.
- group: 1.6182
| Part No. | Description | Group | Ref# | 8V | 12V | 16V | 20V | Price | QOH | |
|---|---|---|---|---|---|---|---|---|---|---|
| Cylinder Kit Components Listed Below Are Used With Option Type #519. | ||||||||||
Details
|
23503034 | Crown, Piston; (14:1); Heat Barrier Coating | 1.6182 | 05 | 1 | 1 | 1 | 1 | $933.21 | 45 |
|
Details
|
23501524 | Ring Set | 1.6182 | 00 | 1 | 1 | 1 | 1 | $343.01 | 0 |
| Details | 8925989 | Ring, Fire | 1.6182 | 08 | 1 | 1 | 1 | 1 | $81.44 | 48 |
|
Details
|
5148277 | Ring, Compression; (2nd Groove) | 1.6182 | 17 | 1 | 1 | 1 | 1 | $36.09 | 1 |
| Details | 5140256 | Ring, Compression; (3rd & 4th Grooves) | 1.6182 | 18 | 2 | 2 | 2 | 2 | $39.47 | 28 |
|
Details
|
23502356 | Liner, Std. | 1.6182 | 15 | A/R | A/R | A/R | A/R | $601.36 | 97 |
|
Details
|
23509951 | Liner, .002 O.S. | 1.6182 | 15 | A/R | A/R | A/R | A/R | $600.12 | 0 |
| Details | 23523189 | Cylinder Installation Kit | 1.6182 | 00 | 1 | 1 | 1 | 1 | $935.19 | 100+ |
| Details | 8924099 | Seal Ring | 1.6182 | 06 | 1 | 1 | 1 | 1 | $29.42 | 95 |
|
Details
|
5141126 | Spacer | 1.6182 | 12 | 2 | 2 | 2 | 2 | $5.87 | 100+ |
|
Details
|
8926002 | Piston Pin | 1.6182 | 10 | 1 | 1 | 1 | 1 | $304.72 | 45 |
|
Details
|
23504149 | Bolts | 1.6182 | 02 | 2 | 2 | 2 | 2 | $6.27 | 100+ |
|
Details
|
23520852 | Slipper Bearing | 1.6182 | 13 | 1 | 1 | 1 | 1 | $95.64 | 100 |
|
Details
|
5101323 | Retainer | 1.6182 | 14 | 2 | 2 | 2 | 2 | $5.90 | 100+ |
|
Details
|
5101198 | Seal Ring | 1.6182 | 16 | 2 | 2 | 2 | 2 | $19.33 | 80 |
|
Details
|
5144912 | Skirt | 1.6182 | 07 | 1 | 1 | 1 | 1 | $420.79 | 1 |
| Cylinder Kit Components Listed Below Are Used With Option Type #508. | ||||||||||
|
Details
|
23502672 | Crown, Piston; (17:1); Wide Fire Ring | 1.6182 | 05 | 1 | 1 | 1 | 1 | $590.81 | 6 |
|
Details
|
23501524 | Ring Set | 1.6182 | 00 | 1 | 1 | 1 | 1 | $343.01 | 0 |
| Details | 8925989 | Ring, Fire | 1.6182 | 08 | 1 | 1 | 1 | 1 | $81.44 | 48 |
|
Details
|
5148277 | Ring, Compression; (2nd Groove) | 1.6182 | 17 | 1 | 1 | 1 | 1 | $36.09 | 1 |
| Details | 5140256 | Ring, Compression; (3rd & 4th Grooves) | 1.6182 | 18 | 2 | 2 | 2 | 2 | $39.47 | 28 |
|
Details
|
23502356 | Liner, Std. | 1.6182 | 15 | A/R | A/R | A/R | A/R | $601.36 | 97 |
|
Details
|
23509951 | Liner, .002 O.S. | 1.6182 | 15 | A/R | A/R | A/R | A/R | $600.12 | 0 |
| Details | 23523189 | Cylinder Installation Kit | 1.6182 | 00 | 1 | 1 | 1 | 1 | $935.19 | 100+ |
| Details | 8924099 | Seal Ring | 1.6182 | 06 | 1 | 1 | 1 | 1 | $29.42 | 95 |
|
Details
|
5141126 | Spacer | 1.6182 | 12 | 2 | 2 | 2 | 2 | $5.87 | 100+ |
|
Details
|
8926002 | Piston Pin | 1.6182 | 10 | 1 | 1 | 1 | 1 | $304.72 | 45 |
|
Details
|
23504149 | Bolts | 1.6182 | 02 | 2 | 2 | 2 | 2 | $6.27 | 100+ |
|
Details
|
23520852 | Slipper Bearing | 1.6182 | 13 | 1 | 1 | 1 | 1 | $95.64 | 100 |
|
Details
|
5101323 | Retainer | 1.6182 | 14 | 2 | 2 | 2 | 2 | $5.90 | 100+ |
|
Details
|
5101198 | Seal Ring | 1.6182 | 16 | 2 | 2 | 2 | 2 | $19.33 | 80 |
|
Details
|
5144912 | Skirt | 1.6182 | 07 | 1 | 1 | 1 | 1 | $420.79 | 1 |
| GROUP 1.6182 CONTINUED ON NEXT PAGE | ||||||||||
