Series 149 Detroit Diesel Engines

EXHAUST MANIFOLD - groups: 6.1001 - 6.1005

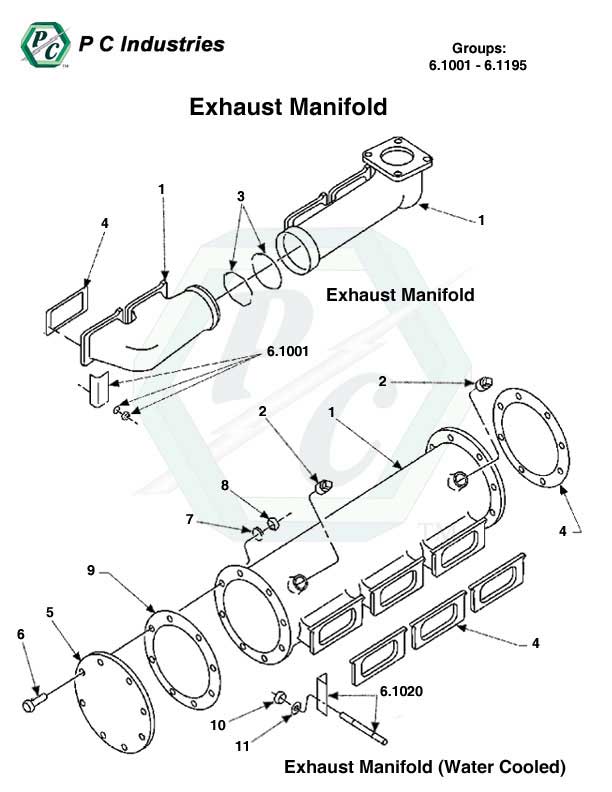

6.1001 - 6.1195 Exhaust Manifold.jpg - Diagram
Page: 312
Part No. Description Group Ref#8V12V16V20V Price QOH
Details View Images 23511400 Nut,1/2"-20" 6.100100A/RA/RA/RA/R$5.39100+
Details View Images 271500 Nut. 7/16"-14; (12.9120) 6.100100A/RA/RA/RA/R$2.1847
Details View Images 8924751 Plug, 1.25"; (12.9550) 6.100102A/RA/RA/RA/R$9.45100+
5181596 Plug, 1.503" Diameter, 1/4" NPTF Hole; (1.1001) (OBSOLETE) 6.100102A/RA/RA/RA/ROBSOLETE0
Details View Images 8925592 Plug, 1/4" Pipe, Square Head; (12.9550) 6.100102A/RA/RA/RA/R$5.9526
Details 113175 Plug, 1/8" Pipe; (12.9550) 6.100102A/RA/RA/RA/R$1.230
Details 23501607 Plug, 1/8" Square Socket Pipe; (12.9550) 6.100102A/RA/RA/RA/R$3.010
Details 8924380 Plug, 1/8"-27 Pipe; W/Seal; (12.9550) 6.100102A/RA/RA/RA/R$0.54100+
Details View Images 5139991 Plug, 1-1/2" Cup; (1.1001) 6.100102A/RA/RA/RA/R$2.9684
Details 23501134 Plug, 2.50" Exp. X 1.25" NPTF 6.100102A/RA/RA/RA/R$76.540
Details View Images 8925591 Plug, 3/8"-18 Square Socket; (12.9550) 6.100102A/RA/RA/RA/R$7.2920
Details 23504517 Plug, Adaptor, 3/4" NPTF 6.100102A/RA/RA/RA/R$75.040
Details View Images 5146051 Shield; Return Hose 6.100100A/RA/RA/RA/R$44.1713
Details View Images 8927921 Stud, 1/2"-20 X 2.5"; (6.020) 6.100100A/RA/RA/RA/R$7.20100+
8927970 Stud, 5/8"-18 X 2" (OBSOLETE) 6.100100A/RA/RA/RA/ROBSOLETE0
Details 23511491 Support, L.B. 6.100100A/RA/RA/RA/R$52.460
Details View Images 5140997 Washer, 1/2"; (6.1001) 6.100100A/RA/RA/RA/R$17.5428
Details View Images 5188274 Washer, 1/2"; (6.1020) 6.100100A/RA/RA/RA/R$14.4094
23519502 Support, Exhaust Outlet, L.B.; (Option Type #705) 6.10050011110
Details 23511491 Support, L.B.; (Option Type #639) 6.1005001111$52.460
Details 23511489 Support, R.B.; (Option Type #'s 639 & 705) 6.1005001111$49.400
Details 23509508 Adaptor; (Option Type #631) 6.1005002222$3,440.260
Details 23522003 Adaptor, Exhaust Manifold; (Option Type #728) 6.1005004444$599.900
Details 8920952 Adaptor, L.B. Front & R.B. Rear; High Mount; (Option Type
#'s 639 & 640)
6.1005003333$391.9711
Details View Images 8920953 Adaptor, L.B. Front & R.B. Rear; Low Mount; (Option Type
#'s 640 & 645)
6.1005002222$405.411
Details 23509390 Adaptor, L.B. Rear & R.B. Front; High Mount; (Option Type
#'s 623, 629, 682, 705, 717)
6.100500A/RA/RA/RA/R$1,106.570
Details View Images 8920955 Adaptor, R.B. Front & L.B. Rear; High Mount; (Option Type
6.1005003333$391.9710
Details View Images 8920954 Adaptor, R.B. Front & L.B. Rear; Low Mount; (Option Type
#'s 640 & 645)
6.1005002222$446.9810
Details 23509389 Adaptor, R.B. Rear & L.B. Front; High Mount; (Option Type
#'s 623, 629, 682, 705, 717)
6.100500A/RA/RA/RA/R$1,307.510
Details View Images 186647 Bolt, 1/4"-20 X 1" 6.100500A/RA/RA/RA/R$0.6618
GROUP 6.1005 CONTINUED ON NEXT PAGE
