Series 149 Detroit Diesel Engines

EXHAUST MANIFOLD - groups: 6.1005 - 6.1060

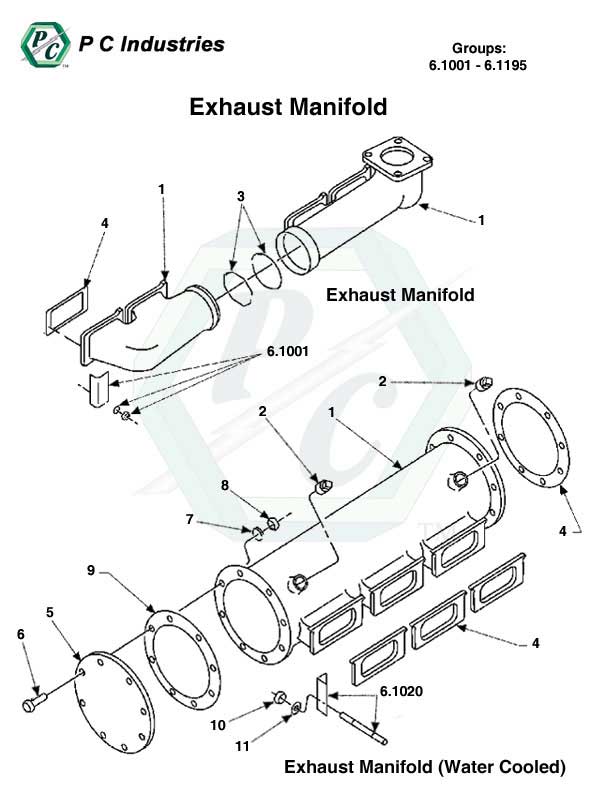

6.1001 - 6.1195 Exhaust Manifold.jpg - Diagram
Page: 313
Part No. Description Group Ref#8V12V16V20V Price QOH
Details View Images 9418228 Bolt, 5/8"-11 X 1.75", 12 Point; (12.9005)
Superceded... Click 'Details' for replacement.
6.100500A/RA/RA/RA/R18
Details 23511557 Bolt, 5/8"-18 X 2", 12 Point Head; (12.9005) 6.100500A/RA/RA/RA/R$3.150
Details View Images 271588 Bolt, 5/8"-18 X 2.25"; (12.9001) 6.100500A/RA/RA/RA/R$2.1931
Details 9424110 Bolt, 5/8"-18 X 3.75"; (12.9001) 6.100500A/RA/RA/RA/R$27.430
Details 271595 Bolt, 5/8"-18 X 4"; (12.9001) 6.100500A/RA/RA/RA/R$8.320
Details 23509966 Collar, Insulation, Exhaust Manifold Flange 6.100500A/RA/RA/RA/R$1,305.710
Details View Images 103325 Lockwasher, 5/8" 6.100500A/RA/RA/RA/R$0.3678
Details View Images 5103952 Nut, 5/8"-18 Special 6.100500A/RA/RA/RA/R$3.0448
Details View Images 138201 Screw, 1/4"-20 X 3/4" Skt. Head 6.100500A/RA/RA/RA/R$1.58180
Details 5181521 Washer, 1/4"; (2.9335) 6.100500A/RA/RA/RA/R$0.892
Details View Images 23511845 Seal Ring 6.100603A/RA/RA/RA/R$13.43193
Details View Images 8924980 Expander 6.100603A/RA/RA/RA/R$12.30206
Details 23511401 Gasket
Superceded... Click 'Details' for replacement.
6.101004A/RA/RA/RA/R4
Details View Images 23525626 Gasket, Exhaust Manifold 6.101004A/RA/RA/RA/R$7.6778
Details 23517774 Gasket, Exhaust Outlet Adaptor 6.101004A/RA/RA/RA/R$23.100
Details 5139123 Gasket, Manifold To Manifold 6.101004A/RA/RA/RA/R$9.6444
Details View Images 5113412 Gasket; (7.4510) 6.101004A/RA/RA/RA/R$1.2226
Details View Images 23501646 Nipple, 1.5" X 2" Pipe 6.101000A/RA/RA/RA/R$7.001
Details View Images 5139122 Cover; (Option Type #'s 355, 403, 442, 537, 539) 6.1015052222$238.212
Details 427567 Bolt, 7/16"-14 X 1.75"; (12.9001) 6.101506A/RA/RA/RA/R$2.490
Details View Images 103322 Lockwasher, 7/16" 6.101507A/RA/RA/RA/R$0.37125
Details View Images 271500 Nut, 7/16"-14; (12.9120) 6.101508A/RA/RA/RA/R$2.0055
Details 5139123 Gasket, Manifold To Manifold; (Option Type #'s 355,
403, 442, 537, 539)
6.1017092222$9.6444
Details View Images 427570 Bolt, 7/16"-14 X 2" 6.102000A/RA/RA/RA/R$1.5859
Details View Images 103322 Lockwasher, 7/16" 6.102011A/RA/RA/RA/R$0.37125
Details View Images 23511400 Nut, 1/2"-20" 6.102010A/RA/RA/RA/R$2.38994
Details View Images 271500 Nut, 7/16"-14; (12.9120) 6.102010A/RA/RA/RA/R$2.0055
Details View Images 5124266 Stud, 1/2"-13-20 X 2 13/16"; (1.5001) 6.102000A/RA/RA/RA/R$8.3223
Details View Images 8927921 Stud, 1/2"-20 X 2.5"; (6.020) 6.102000A/RA/RA/RA/R$4.06193
Details View Images 218224 Tee, 1.5" Pipe 6.102000A/RA/RA/RA/R$29.811
Details View Images 5140997 Washer, 1/2"; (6.1001) 6.102011A/RA/RA/RA/R$15.5428
Details 23512114 Gasket 6.106000A/RA/RA/RA/R$11.1125
CONTINUE TO NEXT PAGE FOR GROUP 6.1100
