Series 149 Detroit Diesel Engines

TACHOMETER DRIVE - groups: 7.4428 - 7.4436

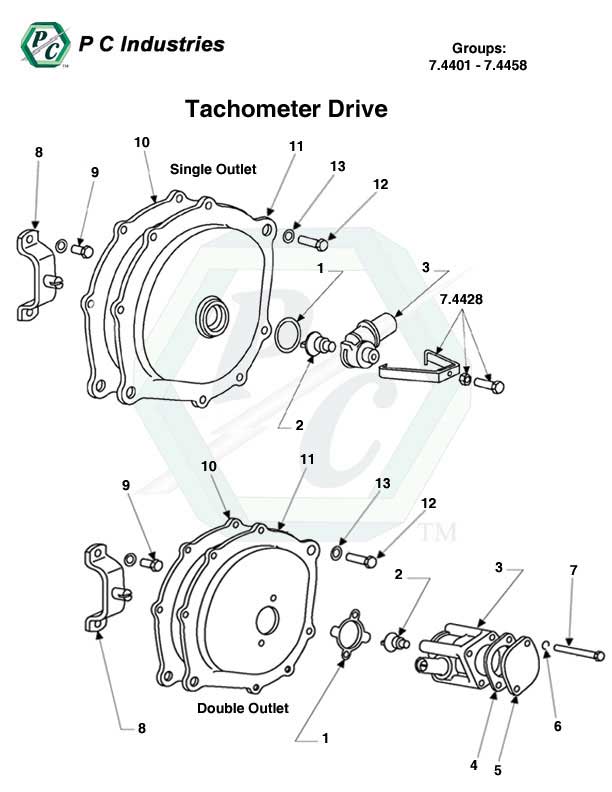

7.4401 - 7.4458 Tachometer Drive.jpg - Diagram

Page: 322

Information Abbreviations Alphabetical Index Group Index

	Part No.	Description	Group	Ref#	8V	12V	16V	20V	Price	QOH
Details	5102868	Housing & Bushing Assembly; (Option Type #'s 666 & 731)	7.4428	03	1	1	1	1	$338.82	0
	5102874	Housing & Bushing Assembly; (Option Type #"s 665 & 733) (OBSOLETE)	7.4428	03	1	1	1	1	OBSOLETE	0
Details	5143455	Housing & Bushing Assembly; (Option Type #494) Superceded... Click 'Details' for replacement. Replaced by 2 items.	7.4428	03	1	1	1	1		0
Details	5136680	Housing & Bushing Assembly, Drive; (Option Type #"s 448 & 459)	7.4428	03	1	1	1	1	$172.84	0
Details	5141769	Housing & Bushing Assembly; (7.4752); (Option Type #493) Superceded... Click 'Details' for replacement. Replaced by 2 items.	7.4428	03	1	1	1	1		0
	5106572	Housing & Shaft Assembly; L.H. Helix	7.4428	03	A/R	A/R	A/R	A/R		0
	5136681	Housing & Shaft Assembly; L.H. Helix (OBSOLETE)	7.4428	03	A/R	A/R	A/R	A/R	OBSOLETE	0
Details	5106757	Housing & Shaft Assembly; R.H. Helix; (Option Type #493)	7.4428	03	1	1	1	1	$365.02	0
	5138543	Housing & Shaft Assembly; R.H. Helix; (Option Type #447) (OBSOLETE)	7.4428	03	1	1	1	1	OBSOLETE	0
Details	5106758	Housing & Shaft Assembly; R.H. Helix; (Option Type #448)	7.4428	03	1	1	1	1	$256.48	1
Details	5106755	Housing Assembly; (Option Type #459)	7.4428	03	1	1	1	1	$101.74	3
Details	5136679	Sleeve & Bushing Assembly	7.4428	00	A/R	A/R	A/R	A/R	$95.84	1
Details	5155901	Cover; (5.3080); (Option Type #'s 493, 494, 665, 666, 731, 733)	7.4433	05	1	1	1	1	$11.44	18
Details	5179613	Bolt, 1/4"-20 X 1.25"; (2.7690)	7.4433	07	A/R	A/R	A/R	A/R	$24.89	63
Details	186270	Bolt, 5/16"-18 X 3.5"	7.4433	07	A/R	A/R	A/R	A/R	$1.29	14
Details	186271	Bolt, 5/16"-18 X 3.75"	7.4433	07	A/R	A/R	A/R	A/R	$1.42	0
Details	5146410	Clamp	7.4433	00	A/R	A/R	A/R	A/R	$39.87	84
Details	3222141	Gasket; (5.3280)	7.4433	04	A/R	A/R	A/R	A/R	$1.57	6
Details	103320	Lockwasher, 5/16"	7.4433	06	A/R	A/R	A/R	A/R	$0.07	100+
Details	120375	Nut, 1/4"-20	7.4433	00	A/R	A/R	A/R	A/R	$1.27	100+
Details	5155596	Washer, 21/64" Special Copper; (4.7120)	7.4433	00	A/R	A/R	A/R	A/R	$1.97	100+
	5136685	Bearing, Tach Drive Gear	7.4435	00	A/R	A/R	A/R	A/R		0
Details	5108089	Shaft; (Option Type #706)	7.4435	00	1	1	1	1	$94.04	5
Details	5121399	Shaft; (Option Type #446) Superceded... Click 'Details' for replacement. Replaced by 2 items.	7.4435	00	1	1	1	1		2
	23518953	Shaft, Tach Drive; .191 Otpt. L.B.	7.4435	00	A/R	A/R	A/R	A/R		0
Details	5141761	Adaptor; (Option Type #'s 446 & 447)	7.4436	08	1	1	1	1	$262.88	1
Details	23502696	Adaptor; (Option Type #'s 446 & 706)	7.4436	08	1	1	1	1	$236.13	2
Details	23502697	Adaptor, Tach Drive	7.4436	08	A/R	A/R	A/R	A/R	$168.55	9
Details	5102866	Adaptor; (7.4587); (Option Type #'s 493, 665, 666, 731, 733)	7.4436	08	1	1	1	1	$218.45	3
Details	5141760	Adaptor; (7.4587); (Option Type #'s 493 & 494)	7.4436	08	1	1	1	1	$102.71	0
Details	9409034	Bolt, 3/8"-24 X 7/8" Lock; (12.9001)	7.4436	09	A/R	A/R	A/R	A/R	$8.49	69
	CONTINUE TO NEXT PAGE FOR GROUP 7.4445
