Series 53 Detroit Diesel Engines

OIL PUMP - groups: 4.1001 - 4.1210

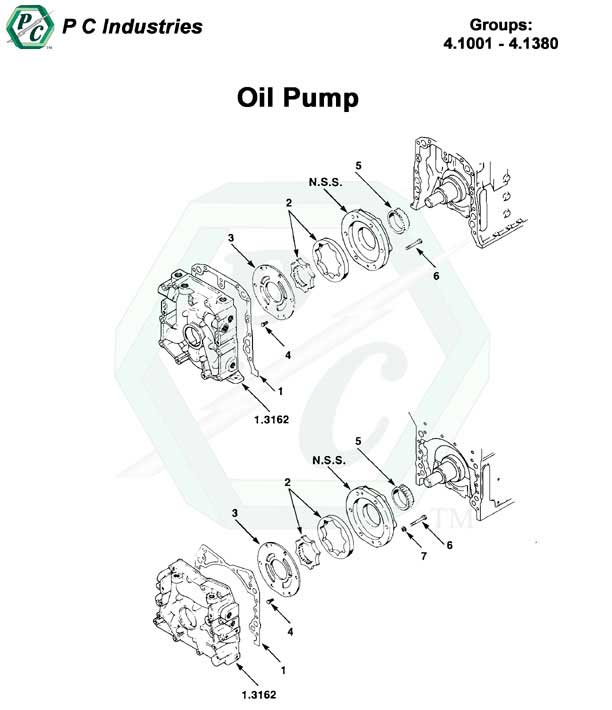

53_oil_pump_pg103-104.jpg - Diagram
Page: 103
Part No. Description GroupRef#2IL3IL4IL6V53 Price QOH
Details View Images 5103847 Pump Assy., Oil (4-53T) (Option Type 143)
Superceded... Click 'Details' for replacement.
Replaced by 4 items.
4.10010011
Details View Images 5116070 Pump Assy., Oil (6V-53) (Option Type 51, 163, 164, 165, 174) 4.1001001$443.803
Details View Images 5104714 Pump Assy., Oil (6V-53) (Option Type 145, 158, 182) 4.1001001$671.621
Details View Images 5116110 Pump Assy., Oil (3-53) (Option Type 49, 166, 167, 168, 169) 4.1001001$411.834
Details View Images 5121042 Pump Assy., Oil (3 & 4-53) (Option Type 50, 52, 170, 171, 172, 173) 4.10010011$351.454
Details 5135032 Pump Assy., Oil (2-53) (Option Type 48, 53)
Superceded... Click 'Details' for replacement.
4.10010010
Details View Images 179822 Bolt, 5/16"-18 X 1 1/2" (12.9001) 4.100106666$0.8249
Details View Images 179826 Bolt, 5/16"-18 X 2" (12.9001) 4.1001066$3.1431
Details View Images 103320 Lockwasher, 5/16" (12.9200) 4.1001076666$0.07160
Details View Images 5116386 Gasket, Oil Pump To Block (1.3170) 4.100701111$2.325
Details View Images 5119368 Gasket, Oil Pump To Block (1.3170) 4.1007011$2.323
Details View Images 5115454 Seal, Oil Pump To Block, 8V53 Engine (1.3040)
Superceded... Click 'Details' for replacement.
Replaced by 2 items.
4.10070017
Details View Images 5103900 Rotor Assy., Oil Pump (4-53T) (W/5103847 Pump) 4.1085021$297.251
Details 5134968 Rotor Assy., Oil Pump (W/5135032 Pump)
Superceded... Click 'Details' for replacement.
4.10850210
Details 5106428 Rotor Assy., Oil Pump (W/5104714 Pump) 4.1085021$292.870
Details View Images 5195687 Rotor Assy., Oil Pump (W/5116070 Pump) 4.1085021$347.673
Details View Images 5195714 Rotor Assy., Oil Pump (W/5116110 Pump) 4.1085021$208.816
Details View Images 5195957 Rotor Assy., Oil Pump (4-53) (W/5121042 Pump) 4.1085021$318.316
Details View Images 5153260 Gear, Oil Pump Drive (8V-53 Scavenging & Non-Scavenging) 4.109000$73.5115
Details View Images 5153617 Gear, Oil Pump Driven (6V & 8V-53) 4.1200001$86.2514
Details View Images 5153154 Bushing, Oil Pump Driven Gear (Scavenging) (8V-53) 4.121000$4.8936
CONTINUE TO NEXT PAGE FOR GROUP 4.1220
