Series 53 Detroit Diesel Engines

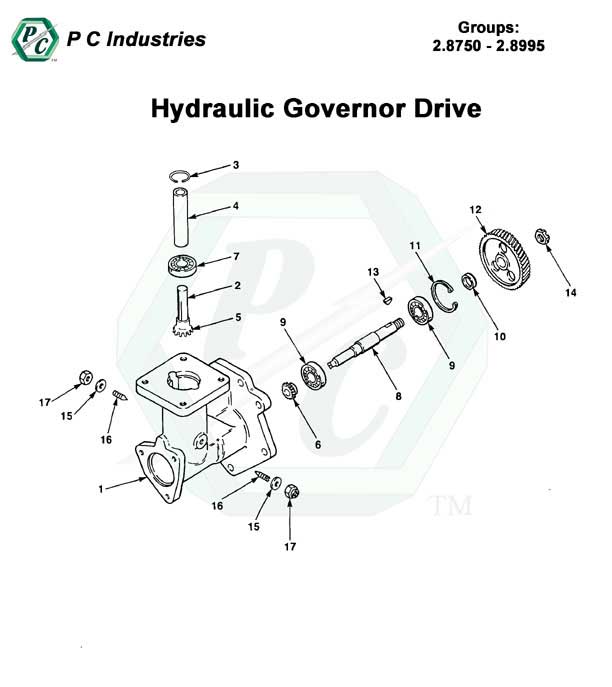

HYDRAULIC GOVERNOR DRIVE - groups: 2.8795 - 2.8830

Page: 75

Information Abbreviations Alphabetical Index Group Index

	Part No.	Description	Group	Ref#	2IL	3IL	4IL	6V53	Price	QOH
Details	3224084	Shaft, Governor Driven	2.8795	02	1	1	1		$244.95	2
	5142690	Shaft, Governor Driven (OBSOLETE)	2.8795	02				1	OBSOLETE	0
Details	274900	Ring, Retaining	2.8795	03				1	$3.89	9
Details	5119065	Sleeve, Governor Driven Shaft	2.8800	04	1	1	1	1	$232.78	1
	5138117	Gear, Governor Driven Shaft (OBSOLETE)	2.8805	05				1	OBSOLETE	0
	5138088	Gear, Governor Drive Shaft (OBSOLETE)	2.8805	06				1	OBSOLETE	0
Details	23503717	Bearing, Governor Driven Shaft	2.8810	07	1	1	1		$12.06	51
	903201	Bearing, Governor Driven Shaft (OBSOLETE)	2.8810	07				1	OBSOLETE	0
Details	9424121	Bearing, Governor Driven Shaft	2.8810	07				1	$32.37	100+
Details	23506244	Bearing, Governor Driven Shaft	2.8810	07	1	1	1		$21.06	48
Details	5169866	Gasket, Governor Driven Shaft	2.8810	15	2	2	2		$5.29	100+
Details	5169864	Screw, 1/4"-20 X 1" Set	2.8810	16	2	2	2		$11.31	36
Details	274856	Nut, 1/4"-20 (12.9120)	2.8810	17	2	2	2		$0.74	100+
	5138085	Shaft Assy., Control Link Operating (OBSOLETE)	2.8810	00				1	OBSOLETE	0
	5142743	Shaft Assy., Control Link Operating (2.8813) (OBSOLETE)	2.8810	00				1	OBSOLETE	0
Details	274694	Ring, Control Link Operating Shaft Assy. Retaining	2.8810	00				1	$0.61	24
Details	5150894	Pin, Control Link Operating Shaft Assy. Link (2.7315)	2.8810	00				2	$19.45	15
Details	5182977	Ring, Control Link Operating Shaft Assy. Seal (3.3055)	2.8810	00				1	$0.43	92
Details	8928537	Key, 3/32" X 1/2" Woodruff (12.9350)	2.8810	00				1	$1.14	30
Details	5197150	Washer, 17/32" X 25/64" X .0329" (2.7145)	2.8810	00				1	$11.21	6
	5178582	Washer, 25/64" X .88" O.D. Special (1.7605) (OBSOLETE)	2.8810	00				1	OBSOLETE	0
Details	5124460	Gear & Shaft Assy., Governor Drive	2.8815	00	1	1	1		$496.82	0
	5138389	Gear & Shaft Assy., Governor Drive (OBSOLETE)	2.8815	00				1	OBSOLETE	0
	5142865	Gear & Shaft Assy., Governor Drive (OBSOLETE)	2.8815	00				1	OBSOLETE	0
Details	5124433	Gear, Governor Drive (16 Teeth)	2.8815	06	1	1	1		$160.83	0
	5138116	Gear, Governor Drive (OBSOLETE)	2.8815	06				1	OBSOLETE	0
	5138119	Shaft, Governor Drive (OBSOLETE)	2.8815	08				1	OBSOLETE	0
Details	5124434	Shaft, Governor Drive	2.8820	08	1	1	1		$254.67	1
	5142860	Shaft, Governor Drive (OBSOLETE)	2.8820	08				1	OBSOLETE	0
Details	23503716	Bearing, Governor Drive Thrust (1 7/8" O.D.)	2.8830	09	1	1	1		$18.18	0
Details	23506244	Bearing, Governor Drive Thrust (1 5/8" O.D.) (2.7470)	2.8830	09	1	1	1		$21.06	48
Details	23503717	Bearing, Governor Drive Thrust (2.8810)	2.8830	09				1	$12.06	51
	5138121	Carrier, Governor Drive Thrust Bearing (OBSOLETE)	2.8830	00				1	OBSOLETE	0
Details	274900	Ring, Governor Drive Thrust Bearing Retaining	2.8830	00				1	$3.89	9
Details	23520371	Bolt, 5/16"-18 X 1" (12.9027)	2.8830	00				2	$4.27	13
Details	103320	Lockwasher, 5/16" (12.9200)	2.8830	00				2	$0.07	100+
	CONTINUE TO NEXT PAGE FOR GROUP 2.8840
