Series 60 Detroit Diesel Engines

FUEL SYSTEM - groups: 2.5110 - 2.5115

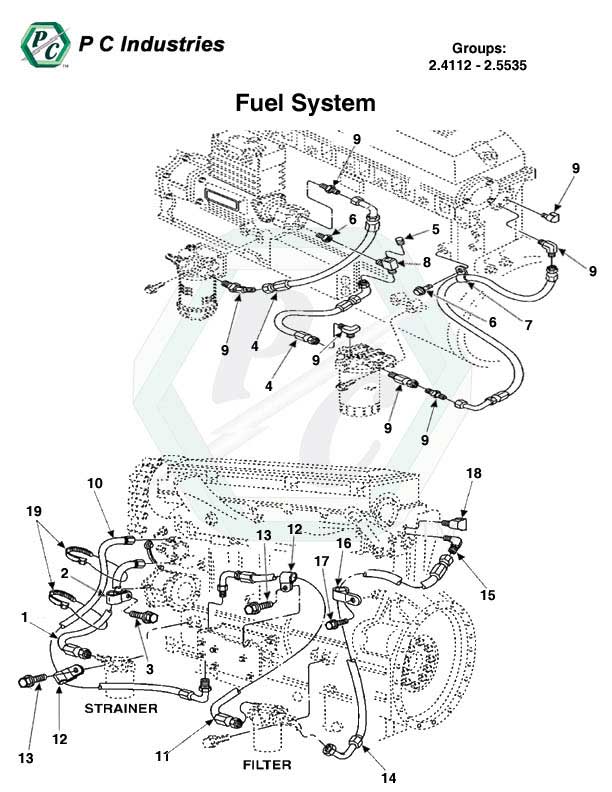

2.5001 - 2.5535 Fuel System_2.jpg - Diagram

Page: 138

Information Abbreviations Alphabetical Index Group Index

	Part No.	Description	Group	Ref#	11.1L	12.7L	14.0L	Price	QOH
Details	FAHH0170	Hose Assembly, #6 X 19.5" Long	2.5110	04	A/R	A/R	A/R	$46.36	0
Details	BAHH0177	Hose Assembly, #6 X 20" Long; H&H Superceded... Click 'Details' for replacement.	2.5110	04	A/R	A/R	A/R		0
Details	MAHH0200	Hose Assembly, #6 X 20" Long; H&H	2.5110	04	A/R	A/R	A/R	$41.70	0
Details	BAHP0213	Hose Assembly, #6 X 23.7" Long; H&P	2.5110	04	A/R	A/R	A/R	$57.65	0
Details	CAHP0216	Hose Assembly, #6 X 24.0" Long	2.5110	04	A/R	A/R	A/R	$57.69	0
Details	BAHH0356	Hose Assembly, #6 X 37.9" Long; H&H	2.5110	04	A/R	A/R	A/R	$75.93	0
Details	CAHH0366	Hose Assembly, #6 X 38.92" Long; H&H; FC234	2.5110	04	A/R	A/R	A/R	$74.69	0
Details	CAHP0423	Hose Assembly, #6 X 44.7" Long	2.5110	04	A/R	A/R	A/R	$77.98	0
Details	CAHP0435	Hose Assembly, #6 X 45.90" Long	2.5110	04	A/R	A/R	A/R	$99.84	0
Details	CAHP0720	Hose Assembly, #6 X 74.40" Long; H&P; FC234	2.5110	04	A/R	A/R	A/R	$82.34	0
Details	CBHH0124	Hose Assembly, #8 X 15.20" Long; H&H; FC234	2.5110	04	A/R	A/R	A/R	$34.53	0
Details	CBHH0147	Hose Assembly, #8 X 17.5" Long	2.5110	04	A/R	A/R	A/R	$35.91	0
Details	8929725	Elbow, 0.80" Restriction, 3/8" Pipe X 5/16"; (2.5210)	2.5115	00	A/R	A/R	A/R	$30.63	0
Details	8924217	Elbow, 3/8" 90 Deg. Inv. Flared Tube	2.5115	00	A/R	A/R	A/R	$16.22	7
Details	8929832	Elbow, 90 Deg. 3/8" Inv. Flared Tube, 3/8" Pipe	2.5115	00	A/R	A/R	A/R	$9.02	5
Details	8925030	Elbow, 90 Deg. 3/8" Inv. Flared Tube; (12.9480)	2.5115	00	A/R	A/R	A/R	$10.05	21
Details	8924175	Elbow, 90 Deg. 3/8" Street; (12.9480)	2.5115	00	A/R	A/R	A/R	$6.05	4
Details	5199588	Fitting, #6 Hose; (5/8"-18 Male Inv. Flared); 90 Deg.	2.5115	00	A/R	A/R	A/R	$49.64	2
Details	5199579	Fitting, #6 Hose; (5/8"-18 Male Inv. Flared); Straight	2.5115	00	A/R	A/R	A/R	$42.47	14
Details	23516523	Connector Assembly, 9/16-18 X 1.332 Straight	2.5115	00	A/R	A/R	A/R	$18.18	0
Details	8929831	Connector, Straight 3/8" Flared Tube; 3/8" Pipe	2.5115	00	A/R	A/R	A/R	$1.84	0
Details	8924517	Plug, 3/8"-18; Square Socket; Vibra Seal	2.5115	00	A/R	A/R	A/R	$1.02	3841
Details	11503454	Bolt, M10 X 1.5 X 20mm	2.5115	00	A/R	A/R	A/R	$3.76	0
Details	11504986	Bolt, M8 X 1.25 X 14mm	2.5115	00	A/R	A/R	A/R	$1.26	0
Details	2236474	Clip, #10	2.5115	00	A/R	A/R	A/R	$0.89	0
Details	2362448	Clip, 0.688" Diameter, 3/8" Bolt; Ctd.; (12.8554)	2.5115	00	A/R	A/R	A/R	$1.89	0
Details	BAHP0200	Hose Assembly, #6 X 11.9" Long; H&P	2.5115	10	A/R	A/R	A/R	$42.26	0
Details	BAHP0132	Hose Assembly, #6 X 15.6" Long; H&P	2.5115	10	A/R	A/R	A/R	$33.31	0
	GROUP 2.5115 CONTINUED ON NEXT PAGE

Information Abbreviations Alphabetical Index Group Index

Page: 138
